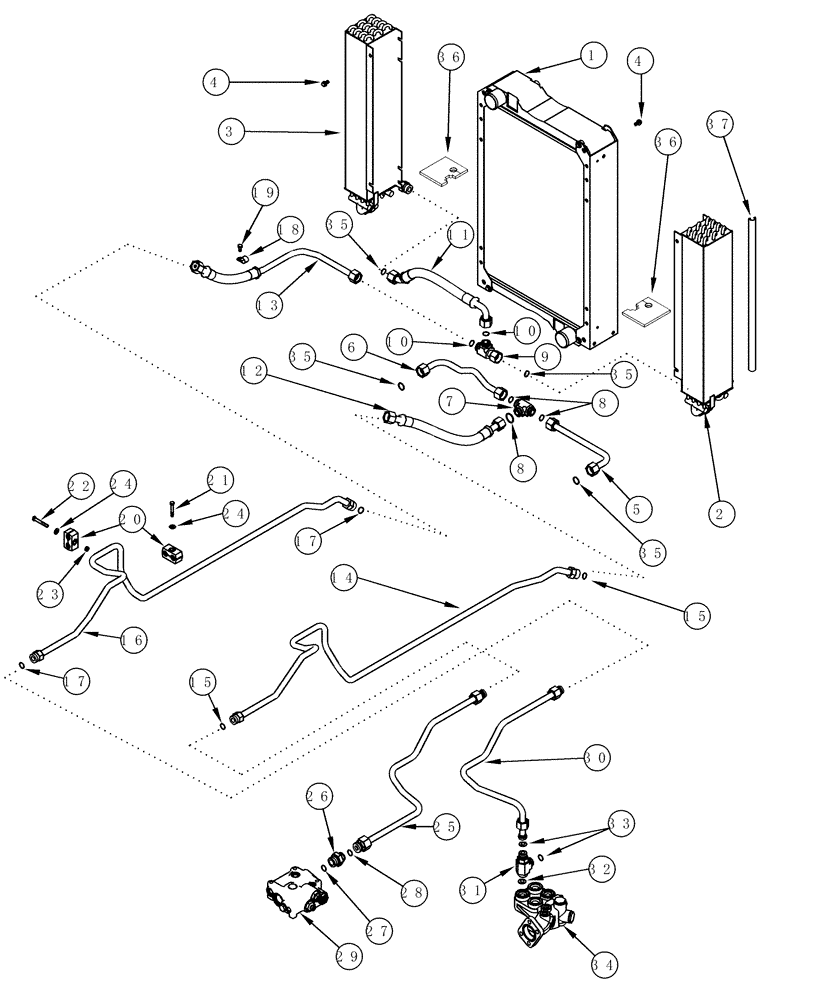

Запчасти Case IH MX200 (08-01[01]) - HYDRAULIC SYSTEM OIL COOLER - BSN JJA0114347 (08) - HYDRAULICS

1

REF

INSTRUCTION

Radiator, See Figure 2-02

1шт.

2

248874A4

COOLER ASSY.

Right Hand

1шт.

3

248873A4

COOLER ASSY.

Left Hand

1шт.

4

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

5

300904A2

TUBE,0.75" OD, 282, 90 mm Length

Right Hand

1шт.

6

300903A2

TUBE

Left Hand

1шт.

7

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

1-3/16 fc sl , Inc. 8

1шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

9

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

1-3/16 fc sl x 1-3/16 sw , Inc. 10

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

11

313315A2

HOSE,19mm ID x 471.2mm L, SAE 100R1

1шт.

12

301020A2

HOSE,19mm ID x 472.5mm L

Supply

1шт.

13

301430A2

HOSE

Return

1шт.

14

313358A2

TUBE,0.75" OD, 1679, 225 mm Length

Supply

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

16

313359A2

TUBE,0.75" OD, 1673, 275 mm Length

Return, Without Front Hitch

1шт.

16

359878A1

TUBE

Return, With Front Hitch

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

18

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

19

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

20

314137A1

COLLAR CLAMP

2шт.

21

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

22

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

25

299165A1

TUBE,0.75" OD, 779, 171 mm Length

Supply (Shown), Serial Range: -JJA0114347

1шт.

25

418919A2

HYDRAULIC HOSE

and Hose Assembly, Supply (Not Shown), Start Serial: JJA0114347

1шт.

26

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 Or, Inc. 27, 28

1шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

29

REF

INSTRUCTION

Valve Assy, Priority, See Figure 8-18

1шт.

30

300841A1

TUBE

Return (Shown), Serial Range: -JJA0114347

1шт.

30

414576A1

TUBE

and Hose Assembly, Return (Not Shown), Start Serial: JJA0114347

1шт.

31

700-428

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1-3/16 fc sl x 27 Or, Inc. 32, 33

1шт.

32

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

33

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

34

REF

INSTRUCTION

Head, See Figures 8-03, 8-04

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

36

329701A1

OIL SEAL

2шт.

37

328134A1

GUIDE

2шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
