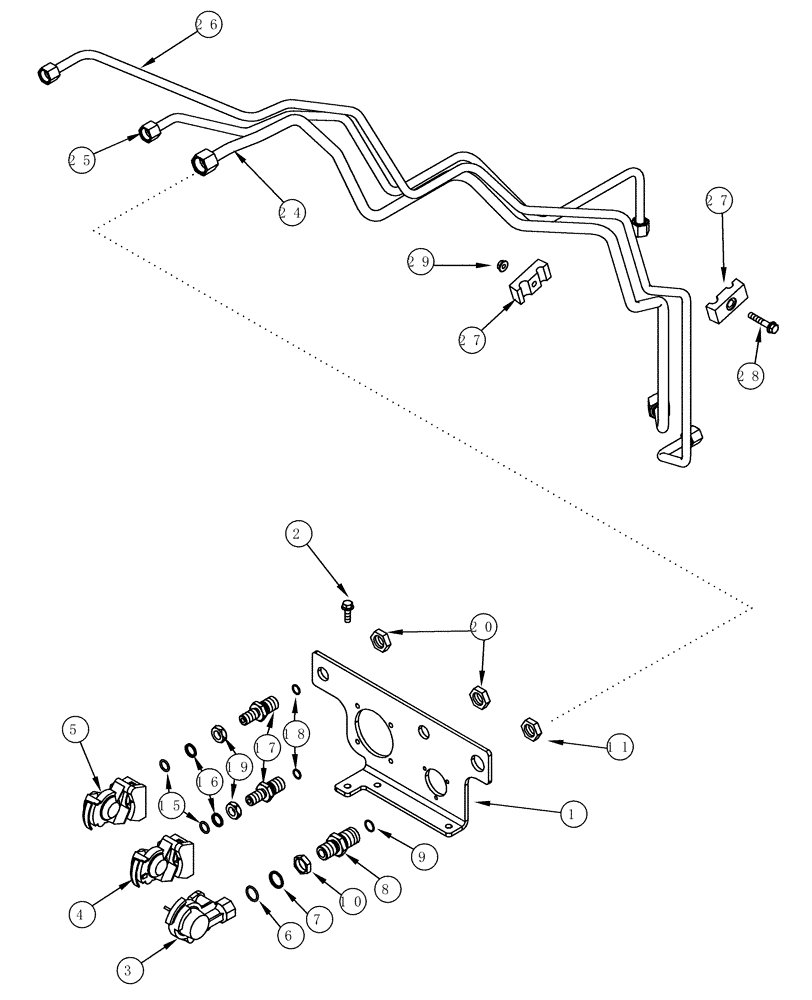

Запчасти Case IH MX200 (07-14) - TRAILER BRAKE PNEUMATIC, COUPLING, EUROPE ONLY (07) - BRAKES

Coupling

1шт.

Europe Only

1шт.

1

294033A3

SUPPORT

1шт.

2

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

3

3141447R1

BREAKER POINTS

1шт.

4

4304140R91

BREAKER POINTS

1шт.

5

3401424R1

COUPLING

1шт.

6

3076154R1

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

1шт.

7

3076153R1

RING

1шт.

8

258695A2

FITTING

Inc. 9

1шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

933882R1

NUT

M22

1шт.

11

701-919

BHD LOCK NUT,1" - 14

1шт.

15

3148863R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

16

3148862R1

O-RING,16.1mm ID x 22mm OD x 2.6mm Thk

2шт.

17

258696A2

FITTING

Inc. 18

2шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

829-23416

THIN NUT,Thin, M16 x 1.5, Cl 05

M16

2шт.

20

701-903

NUT,13/16" - 16

2шт.

24

258729A2

TUBE,0.625" OD, 766, 733 mm Length

1шт.

25

258730A2

TUBE,0.5" OD, 738, 390 mm Length

1шт.

26

258731A3

TUBE

1шт.

27

109619A1

CLAMP

1шт.

28

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

29

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.
