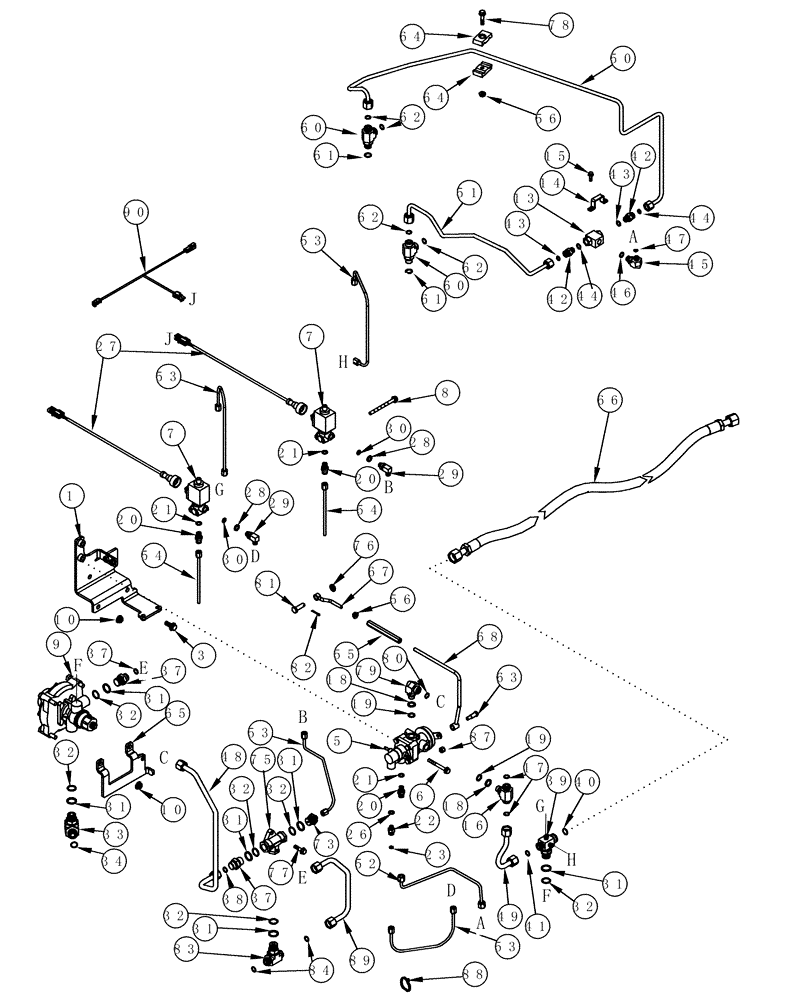

Запчасти Case IH MX200 (07-13) - TRAILER BRAKE PNEUMATIC, VALVE MOUNTING, EUROPE ONLY (07) - BRAKES
№
Артикул
Название
Примечание
Количество
Valve Mounting
1шт.
Europe Only
1шт.
1
246890A4
SUPPORT
1шт.
3
844-10025
BOLT,Hex, M10 x 25mm, Cl 8.8
2шт.
5
222612A1
VALVE
MX180(1)
1шт.
5
224360A1
VALVE
MX200(1), MX220(1), MX240(1), MX270(1)
1шт.
6
844-8070
BOLT,Hvy Hex, M8 x 70mm, Cl 8.8
M8 x 70; 8,8
2шт.
7
1531984C1
SOLENOID VALVE
2шт.
8
845-8095
BOLT,Hvy Hex, M8 x 95mm, Cl 8.8
2шт.
9
T101913
VALVE
1шт.
10
825-2410
FLANGE NUT,M10 x 1.5, Flg, Cl 8
4шт.
13
176143A1
VALVE
1шт.
14
254580A3
CLAMP
1шт.
15
844-6020
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
2шт.
16
700-450
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M16 x 1.5 Male ORB
13/16 fc sl x 16 Or , Inc. 17
1шт.
17
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
18
3148862R1
O-RING,16.1mm ID x 22mm OD x 2.6mm Thk
2шт.
19
3148863R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
2шт.
20
225216A2
UNION
3шт.
21
713845R1
SEALING WASHER,M12 x 15.5 x 1.5
3шт.
22
176896A1
UNION
Includes 23
1шт.
23
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
26
718743R1
SEALING RING,M10 x 16 x 1
1шт.
27
327970A1
PLUG
Electrical Connector
2шт.
28
176982A1
THRUST RING
2шт.
Valve Mounting
1шт.
Europe Only
1шт.
29
186365A3
ELBOW
2шт.
30
637-63093
O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro
2шт.
31
3076153R1
RING
6шт.
32
3076154R1
O-RING,2.4mm Thk x 20.3mm ID, 70 Duro
6шт.
33
700-306
ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB
Incl. 34
1шт.
34
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
37
700-162
HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB
Incl. 38
2шт.
38
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
39
248429A2
TEE
Inc. 40, 41
1шт.
40
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
41
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
42
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl 43, 44
2шт.
44
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
45
201-324
ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS
Includes Ref. 46, 47
1шт.
47
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
48
248662A3
PIPE
1шт.
49
248462A2
TUBE,0.5" OD, 113, 79 mm Length
1шт.
50
254578A2
TUBE,0.375" OD, 629, 547 mm Length
1шт.
51
254577A2
TUBE,0.375" OD, 409, 287 mm Length
1шт.
52
254579A2
TUBE,0.25" OD, 210, 146 mm Length
MX180(1)
1шт.
52
294252A2
TUBE,0.25" OD, 176, 146 mm Length
MX200(1), MX220(1), MX240(1), MX270(1)
1шт.
Valve Mounting
1шт.
Europe Only
1шт.
53
248670A1
HOSE
4шт.
54
225215A1
HOSE
175 mm (7 in)
2шт.
55
293015A1
TURNBUCKLE
1шт.
56
825-2408
FLANGE NUT,M8 x 1.25, Flg, Cl 8
2шт.
60
700-412
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Inc. 61, 62
2шт.
61
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
62
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
63
335898A1
BOLT
1шт.
64
1546024C1
CLAMP
2 piece
1шт.
65
326481A2
SUPPORT
1шт.
66
247995A2
HOSE
1шт.
67
326484A1
SET OF 2 BELTS
1шт.
68
335899A1
THREADED ROD
1шт.
73
325531A1
FITTING
1шт.
75
325137A1
VALVE
1шт.
76
895-10010
WASHER,11mm ID x 20mm OD x 2mm Thk
1шт.
77
844-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8
1шт.
78
844-8035
BOLT,Hvy Hex, M8 x 35mm, Cl 8.8
1шт.
79
700-385
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M16 x 1.5 Male ORB
13/16 fc sl x 16 Or, Inc. 80
1шт.
80
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
81
427-6156
CLEVIS PIN,9.53mm OD x 39.67mm L
1шт.
82
432-612
COTTER PIN,3/32" x 3/4"
1шт.
83
700-447
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB
Inc. 84
1шт.
84
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
87
832-10408
NUT,M8 x 1.25, Cl 8.8
1шт.
88
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15 in
1шт.
89
325673A4
PIPE
1шт.
90
315252A2
HARNESS
1шт.
43
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
46
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 80
