Запчасти Case IH MX200 (07-11) - TRAILER BRAKE PNEUMATIC, COMPRESSOR MOUNTING AND DRIVE, EUROPE ONLY (07) - BRAKES

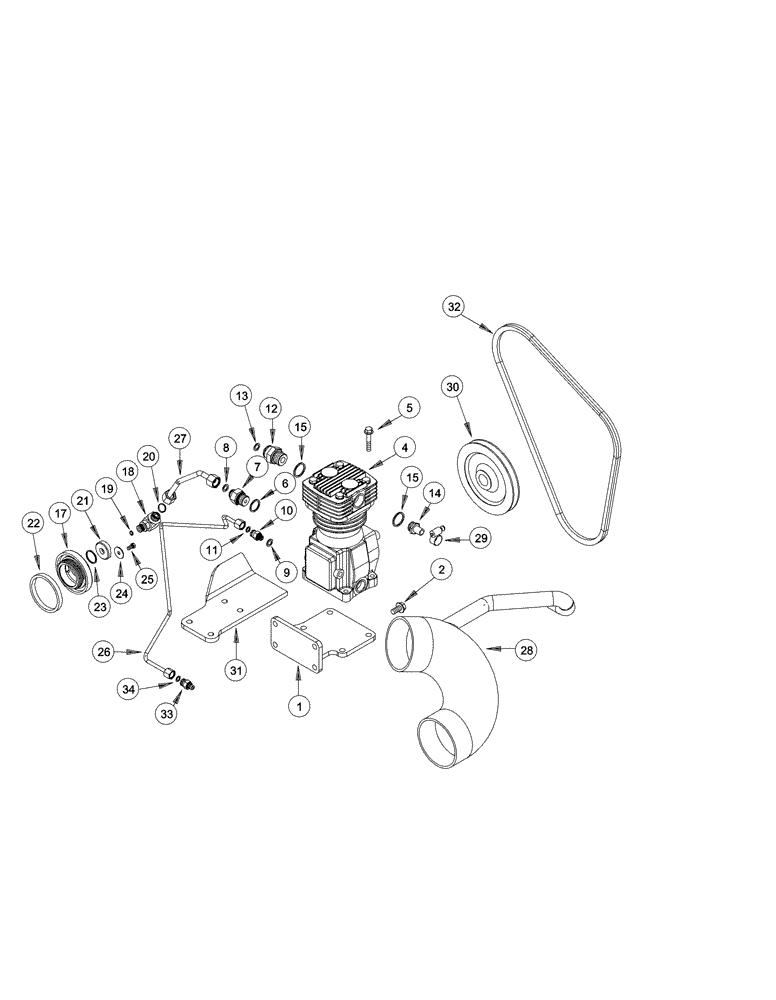

Схема запчастей Case IH MX200 - (07-11) - TRAILER BRAKE PNEUMATIC, COMPRESSOR MOUNTING AND DRIVE, EUROPE ONLY (07) - BRAKES
24
15
17
8
28
27
30
1
7
13
14
22
32
25
26
12
2
11
15
19
21
5
33
6
20
29
10
4
34
31
9
18
23

Артикул

Название

Примечание

Количество

Compressor Mounting and Drive

1шт.

Europe Only

1шт.

1

232440A4

SUPPORT

1шт.

2

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

MX180(4), MX200(4), MX220(4)

1шт.

2

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

MX240 (4), MX270 (4)

1шт.

4

228439A1

AIR COMPRESSOR

1шт.

5

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

4шт.

6

E135040

SEALING WASHER,M22 x 27 x 1.5

1шт.

7

224236A1

FITTING

Inc. 8

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

718743R1

SEALING RING,M10 x 16 x 1

1шт.

10

176896A1

UNION

9/16 fc sl x 10 Or, Includes 11

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

224234A2

FITTING

Includes 13

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

897502H1

ADAPTER

1шт.

15

933608R1

SEALING RING,M26 x 31 x 2

2шт.

17

J918215

ADAPTER

1шт.

18

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 19,20

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

177335A3

LARGE PLATE

PLATE, LARGE

1шт.

22

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

23

J915800

SEAL,Square, 1.68mm Thk x 25.12mm ID, -22

SEALRING

1шт.

24

T103887

WASHER

2шт.

25

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

Compressor Mounting and Drive

1шт.

Europe Only

1шт.

26

245975A3

PIPE

1шт.

27

245974A3

TUBE,0.375" OD, 138, 106 mm Length

1шт.

28

245986A3

LARGE HOSE

HOSE,LARGE

1шт.

29

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

30

191348A1

PULLEY

1шт.

31

282711A2

SUPPORT

1шт.

32

385738R1

V-BELT,0.50" W x 49.00" L

1шт.

33

176897A1

UNION

MX180(1), MX200(1), MX220(1), Includes 34

1шт.

33

176896A1

UNION

MX240(1), MX270(1), Includes 34

1шт.

34

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 38
