Запчасти Case IH MX200 (07-10) - TRAILER BRAKE HYDRAULIC (07) - BRAKES

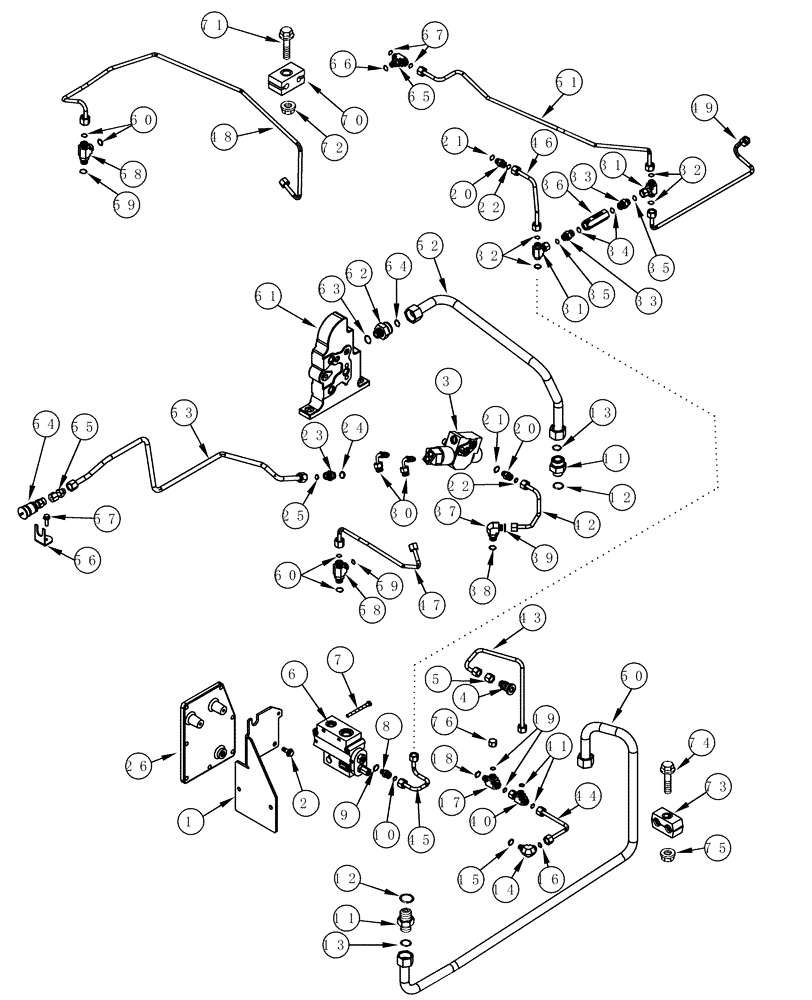

Схема запчастей Case IH MX200 - (07-10) - TRAILER BRAKE HYDRAULIC (07) - BRAKES
56
4
22
63
65
67
55
31
13
35
10
37
37
20
60
30
51
43
58
32
42
11
73
47
61
70
19
21
60
45
35
9
50
17
75
33
54
38
11
52
39
34
74
44
6
46
15
57
20
24
5
23
7
16
33
8
13
53
59
21
32
48
58
31
49
64
26
40
12
66
41
76
71
18
2
14
12
25
1
36
59
62
3
22
72

Артикул

Название

Примечание

Количество

1

237604A3

SUPPORT

1шт.

2

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

3

1343653C2

VALVE

MX180(1)

1шт.

1986883C1

SEAL KIT

Used With 1343653C2

1шт.

3

1343654C2

HYDRAULIC VALVE

MX200(1), MX220(1), MX240(1), MX270(1)

1шт.

1986883C1

SEAL KIT

Used With 1343654C2

1шт.

4

1975206C1

FITTING

1шт.

5

825-1424

NUT,M24, Cl 8

M24

1шт.

6

259894A1

VALVE

1шт.

7

814-8085

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

2шт.

8

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Inc. 9,10

1шт.

9

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 12,13

2шт.

12

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

700-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

11/16 fc sl x 12 Or, Inc. 15,16

1шт.

15

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

17

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Includes 18,19

1шт.

18

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

20

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 21, 22

2шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 24,25

1шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

REF

INSTRUCTION

Cover, See Figure 7-07

1шт.

30

1975290C1

HYD TUBE,0.312" OD

2шт.

31

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

Includes 32

2шт.

32

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

33

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 34,35

2шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

1348540C1

CHECK VALVE

1шт.

37

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

90 11/16 fc sl x 18 Or, Inc. 38,39

1шт.

38

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

39

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

40

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 41

1шт.

41

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

42

275729A1

HYD TUBE,0.375" OD, 165 mm Length

1шт.

43

237710A2

TUBE

1шт.

44

275769A1

HYD TUBE,0.375" OD, 115, 81 mm Length

1шт.

45

275771A1

HYD TUBE,0.375" OD, 60, 48 mm Length

1шт.

46

275772A1

HYD TUBE,0.375" OD, 165, 66 mm Length

1шт.

47

259411A2

HYD TUBE

1шт.

48

259412A2

HYD TUBE

1шт.

49

275773A2

HYD TUBE,0.375" OD, 422, 51 mm Length

With Standard Flow Capacity Hydraulic Pump

1шт.

49

331503A1

TUBE

With High Flow Capacity Hydraulic Pump

1шт.

50

275726A3

HYD TUBE,1" OD, 724, 491 mm Length

With Standard Flow Capacity Hydraulic Pump

1шт.

50

331502A2

TUBE

With High Flow Capacity Hydraulic Pump

1шт.

51

366083A1

PIPE

1шт.

52

366082A1

PIPE

1шт.

53

276203A2

HYD TUBE

1шт.

54

3131463R91

QUICK MALE COUPLING

1шт.

55

1975266C1

HYD TUBE,12 mm OD

1шт.

56

275844A1

SUPPORT

1шт.

57

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

58

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 59,60

2шт.

59

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

60

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

61

REF

INSTRUCTION

Manifold, See Figure 8-24

1шт.

62

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 63,64

1шт.

63

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

65

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

11/16 fc sl x 14 Or, Inc. 66,67

1шт.

66

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

67

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

70

1546024C1

CLAMP

2 piece

1шт.

71

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

72

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

73

255212A1

CLAMP

With Standard Flow Capacity Hydraulic Pump

1шт.

73

124664A1

MOUNTING CLIP

With High Flow Capacity Hydraulic Pump

1шт.

74

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

75

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

76

701-900

CAP,11/16" - 16

11/16 in, N.A. Only

1шт.

64

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 77
