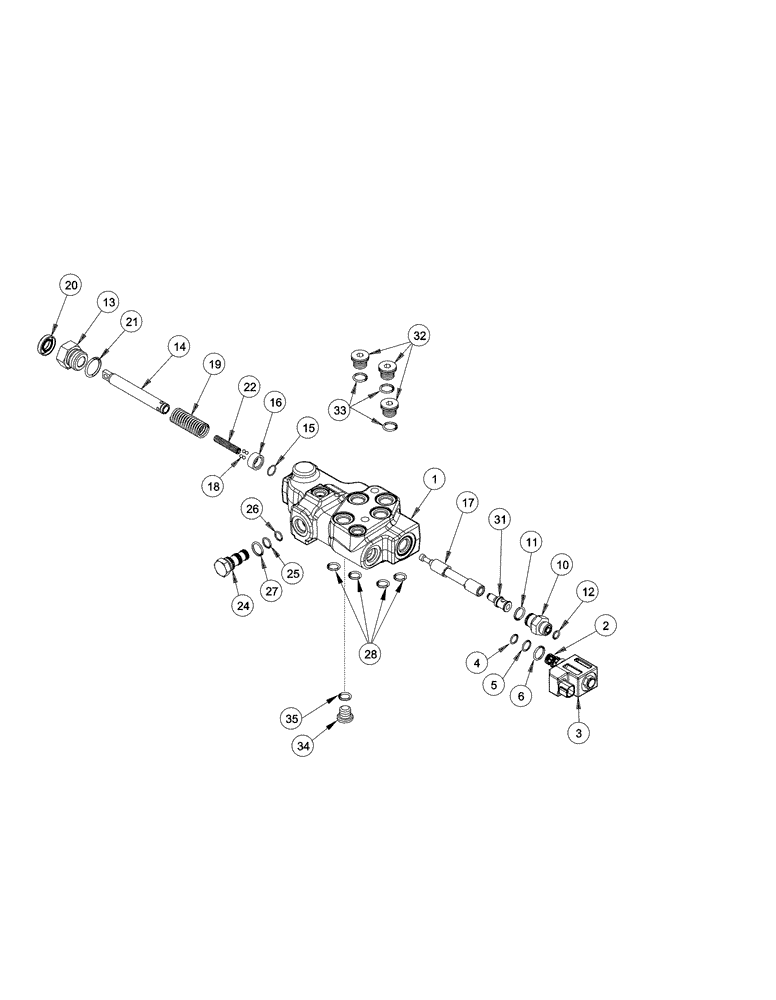

Запчасти Case IH MX200 (07-08) - VALVE ASSY BRAKE, EUROPE ONLY (07) - BRAKES

Europe Only

1шт.

277823A5

VALVE

Consists Of 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

349295A1

SOLENOID VALVE

Inc. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Cartridge

1шт.

3

NSS

NOT SOLD SEPARAT

Coil

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

6

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

10

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 11,12

1шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

314877A2

SPOOL

Inc. 13 - 22

1шт.

13

NSS

NOT SOLD SEPARAT

Retainer

1шт.

14

NSS

NOT SOLD SEPARAT

Rod

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

16

NSS

NOT SOLD SEPARAT

Washer

1шт.

17

NSS

NOT SOLD SEPARAT

Spool

1шт.

18

NSS

NOT SOLD SEPARAT

Ball

4шт.

19

NSS

NOT SOLD SEPARAT

Spring

1шт.

20

NSS

NOT SOLD SEPARAT

Seal

1шт.

21

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

22

NSS

NOT SOLD SEPARAT

Spring

1шт.

24

315514A1

PLUG

Inc. 25 - 27

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

31

295920A1

PIN

1шт.

32

221578A1

PLUG,M18 x 1.5 ORB

Includes 33

3шт.

33

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

34

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes 35

1шт.

35

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
