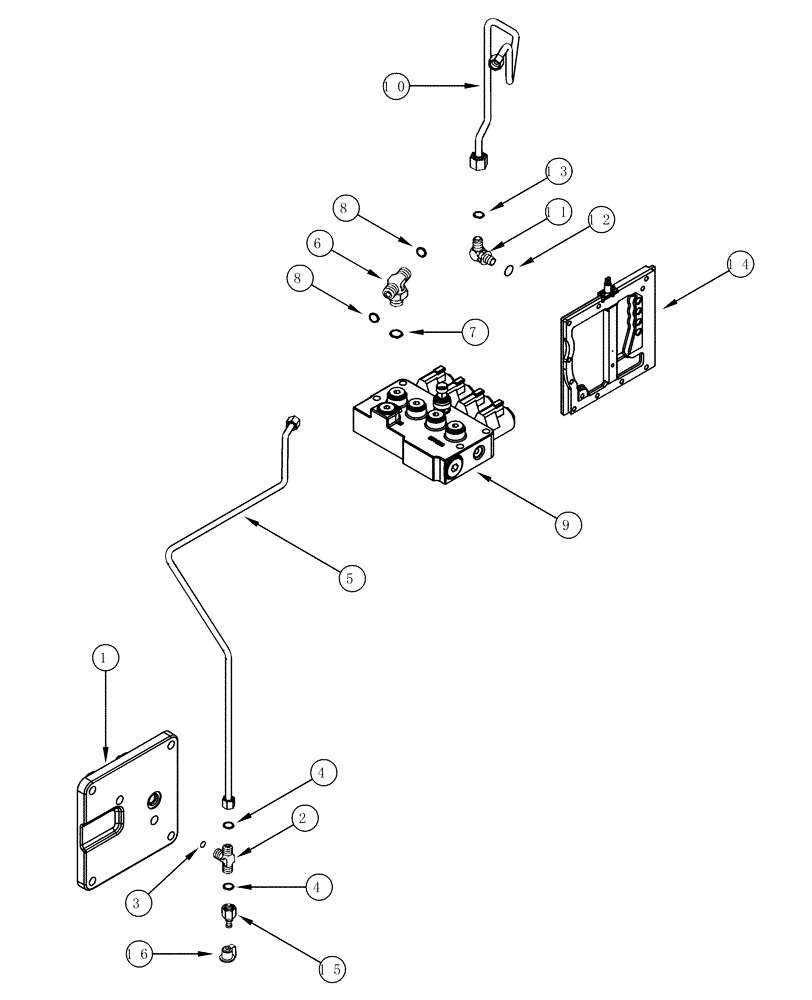

Запчасти Case IH MX200 (07-06) - HYDRAULIC CIRCUIT, BRAKE, N.A. ONLY (07) - BRAKES

N.A. Only

1шт.

1

REF

INSTRUCTION

Cover, See Figure 7-05

1шт.

2

700-443

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

13/16 fc sl x 14 Or, Inc. 3, 4

1шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

305118A3

PIPE

1шт.

6

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

13/16 fc sl x 18 Or, Inc. 7,8

1шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

9

REF

INSTRUCTION

Valve Assy, Control, See Figure 6-20

1шт.

10

298365A1

TUBE

1шт.

11

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 12,13

1шт.

12

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

REF

INSTRUCTION

Plate Assy, See Figure 6-03

1шт.

15

322529A1

COUPLING

1шт.

16

143349A1

DUST CAP

1шт.
