Запчасти Case IH MX200 (07-01) - PEDAL BRAKE, N.A. ONLY (07) - BRAKES

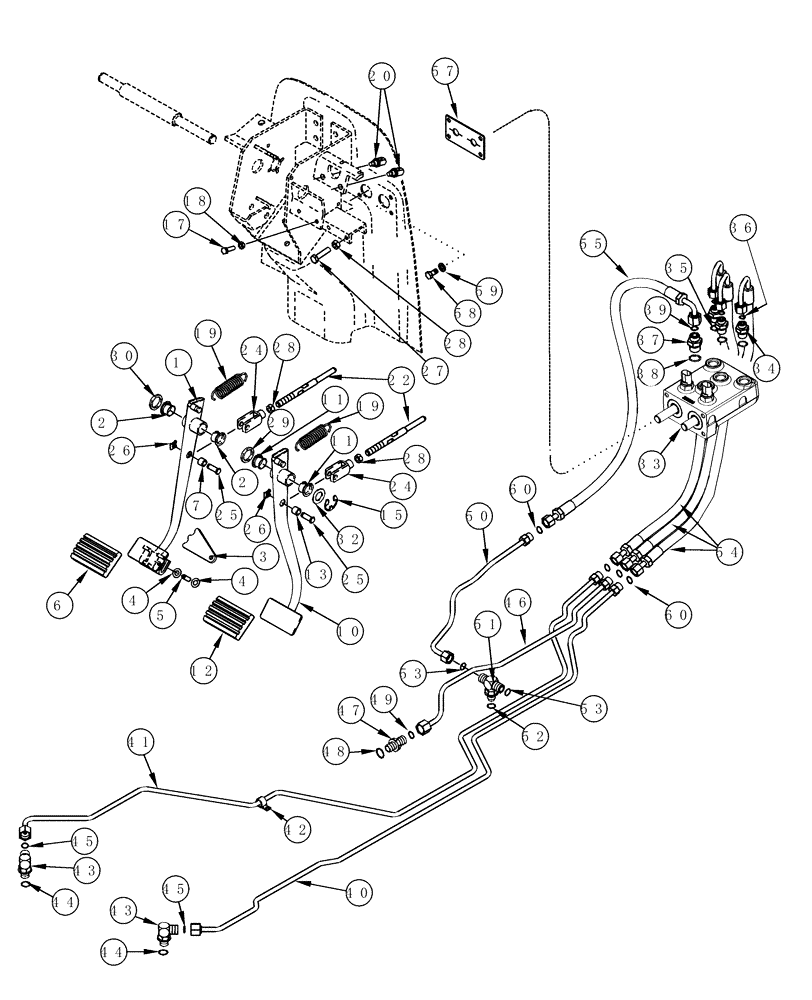

Схема запчастей Case IH MX200 - (07-01) - PEDAL BRAKE, N.A. ONLY (07) - BRAKES
26
11
17
11
43
49
46
10
15
4
48
53
60
55
27
33
28
3
19
5
22
45
18
57
4
50
37
35
12
13
44
32
47
36
51
30
25
29
28
60
7
2
53
28
44
58
1
52
38
19
54
45
40
2
42
59
25
6
24
20
34
41
43
26
39
24

Артикул

Название

Примечание

Количество

N.A. Only

1шт.

1

298504A1

PEDAL ASSY.

Left Hand, Inc. 2 - 7

1шт.

2

1990753C1

PLASTIC RING

2шт.

3

188419A1

ARM

1шт.

4

906045R1

BELLEVILLE WASHER,M10 Bolt Size x 20.5mm OD x 0.8mm Thk

10,2 x 20 x 0,8

2шт.

5

738-1825

LOCK PIN,M8 x 25, Slotted

1шт.

6

1999381C1

RUBBER PAD

1шт.

7

298715A1

BUSHING,10mm ID x 15mm OD x 13mm L

1шт.

10

298503A1

PEDAL

Right Hand, Inc. 11 - 13

1шт.

11

1990753C1

PLASTIC RING

2шт.

12

1999382C1

RUBBER PAD

1шт.

13

298715A1

BUSHING,10mm ID x 15mm OD x 13mm L

1шт.

15

800-3120

CIRCLIP,M20

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

19

236504A2

SPRING

2шт.

20

279265A2

SWITCH

Diff. Lock Brake

2шт.

22

300510A1

ROD

2шт.

24

236323A1

CLEVIS

2шт.

25

192869A1

CLEVIS PIN

2шт.

26

193182A1

CLIP

2шт.

27

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

28

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

29

T102217

WASHER,20.1mm ID x 35mm OD x 2mm Thk

1шт.

30

258242A1

WASHER,26mm ID x 35mm OD x 4mm Thk

1шт.

32

895-11018

WASHER,M18 x 34 x 3

20 x 34 x 3

1шт.

33

REF

INSTRUCTION

Valve Assy, Brake, See Figure 7-04

1шт.

34

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 35, 36

3шт.

35

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

N.A. Only

1шт.

37

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 38, 39

1шт.

38

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

39

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

40

387025A1

TUBE,0.375" OD, 1406, 140 mm Length

Right Hand

1шт.

41

387021A1

TUBE,0.375" OD, 1459, 505 mm Length

Left Hand

1шт.

42

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

43

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 44, 45

2шт.

44

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

45

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

46

299168A1

TUBE,0.375" OD, 568, 107 mm Length

Supply

1шт.

47

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 44, 49

1шт.

48

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

49

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

50

387024A1

TUBE

Return

1шт.

51

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

11/16 fc sl x 9/16 Or, Includes 52, 53

1шт.

52

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

54

245476A1

HOSE,9.52mm ID x 851mm L

3шт.

55

278729A1

HOSE,9.53mm ID x 931mm L

1шт.

57

320434A1

GASKET,2.3mm Thk

1шт.

58

806-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9

4шт.

59

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

60

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

53

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
