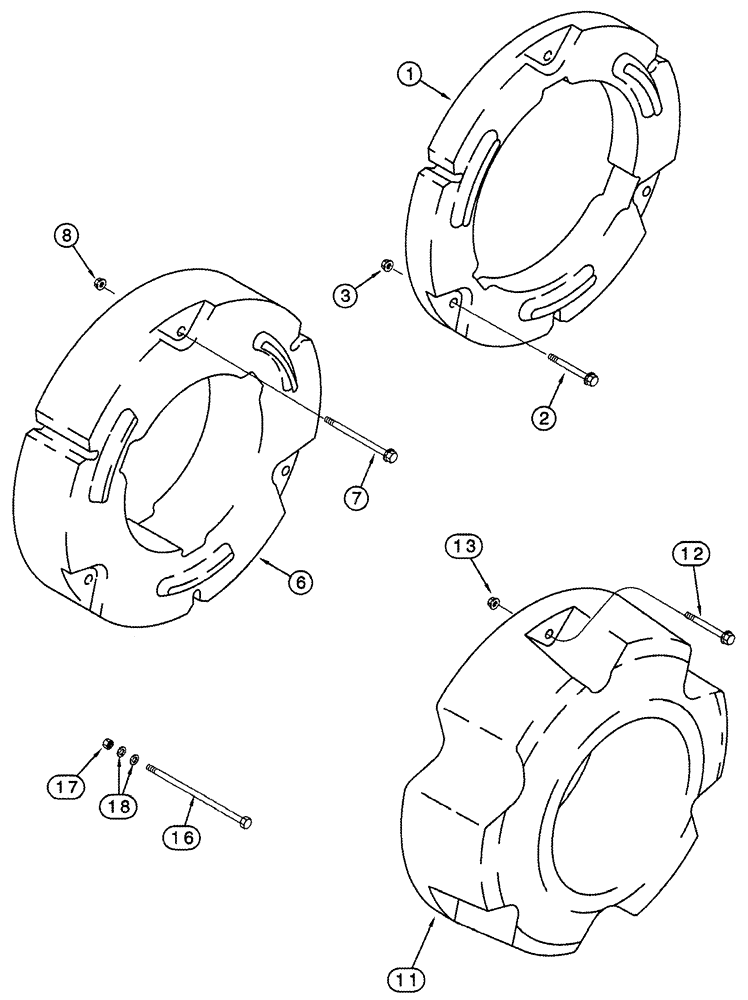

Запчасти Case IH MX200 (06-46) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

294441A1

WEIGHT, WHEEL

WHEEL WEIGHT 200 lb, Order From Machinery Price List, Consists Of 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Weight

2шт.

2

857-16110

BOLT,Hvy Hex, M16 x 110mm, Cl 10.9

M16 x 110; 10.9

6шт.

3

832-44416

FLANGE NUT,M16 x 2, Flg, Cl 10

M16; 10

6шт.

294442A1

WEIGHT, WHEEL

WHEEL WEIGHT 500 lb, Order From Machinery Price List, Consists Of 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Weight

2шт.

7

857-16180

BOLT,Hex, M16 x 180mm, Cl 10.9

M16 x 180; 10.9

6шт.

8

832-44416

FLANGE NUT,M16 x 2, Flg, Cl 10

M16; 10

6шт.

294443A1

WEIGHT, WHEEL

WHEEL WEIGHT 1000 lb, Order From Machinery Price List, Consists Of 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Weight

2шт.

12

857-16110

BOLT,Hvy Hex, M16 x 110mm, Cl 10.9

M16 x 110; 10.9

6шт.

13

832-44416

FLANGE NUT,M16 x 2, Flg, Cl 10

M16; 10

6шт.

16

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

5/8 x 5-1/2

6шт.

16

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

5/8 x 8-1/2

6шт.

17

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

5/8

6шт.

18

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

12шт.

Weight kit mounts, Serial Range: weight-wheel

1шт.
