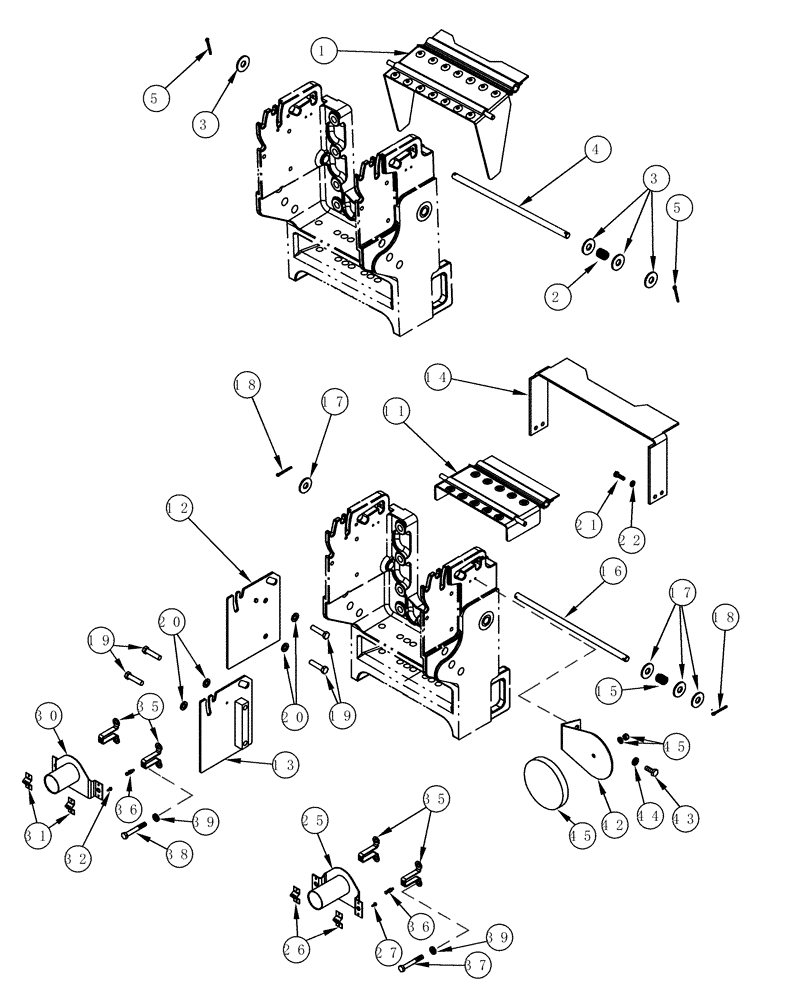

Запчасти Case IH MX200 (06-41) - POWER TAKE OFF ASSEMBLY SHIELDS (06) - POWER TRAIN

1

379252A1

PROTECTION PLATE

1шт.

2

179657A2

SPRING

1шт.

3

495-21069

WASHER,5/8"

11/16 x 1-3/4 x 9/64

4шт.

4

225672A2

ROD

1шт.

5

733-5040

COTTER PIN,M5 x 40

Europe Only

2шт.

11

275108A4

PROTECTION PLATE

1шт.

12

275257A3

PLATE ASSY.

Left Hand

1шт.

13

275258A3

PLATE ASSY.

Right Hand

1шт.

14

377751A1

PROTECTION PLATE

1шт.

15

179657A2

SPRING

1шт.

16

225672A2

ROD

1шт.

17

495-21069

WASHER,5/8"

11/16 x 1-3/4 x 9/64

4шт.

18

733-5040

COTTER PIN,M5 x 40

2шт.

19

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

20

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

21

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

311112A3

GUARD

Single Speed, Inc. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

Shield

1шт.

26

1968039C3

FASTENER

2шт.

27

280-5348

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

4шт.

311113A3

GUARD

Dual Speed, Inc. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

Shield

1шт.

31

1968039C3

FASTENER

2шт.

32

280-5348

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

4шт.

35

308308A1

SUPPORT

2шт.

36

1977929C1

STUD,M5 x 0.8

2шт.

37

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

38

828-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

M12 x 85; 10.9

4шт.

39

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

42

101588A1

SUPPORT

2шт.

43

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

44

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

45

107484C1

REFLECTOR

2шт.
