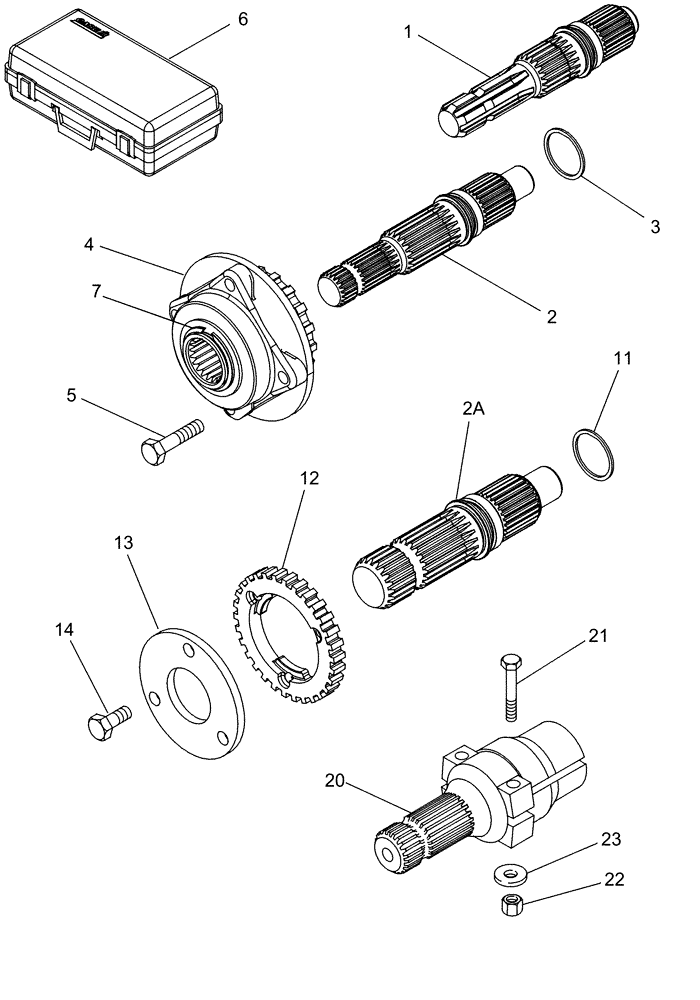

Запчасти Case IH MX200 (06-40) - POWER TAKE OFF ASSEMBLY OUTPUT SHAFT, DUAL SPEED, 35MM (1-3/8 IN) (06) - POWER TRAIN

1

226045A2

DRIVE SHAFT

Dual Speed, Output Shaft 35mm (1-3/8 in) 6 Spline

1шт.

2

226042A2

DRIVE SHAFT

Dual Speed, Output Shaft 35mm (1-3/8 in) 21 Spline

1шт.

2a

226040A2

DRIVE SHAFT

Output Shaft 45mm (1-3/4 in) 20 Spline, 1000 RPM, Used With Ref 12

1шт.

3

341418A2

SEAL,40.87mm ID x 50mm OD x 3.53mm Thk

1шт.

4

241387A5

HOUSING

Incl 7; Incl Seal NSS

1шт.

5

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

6

258531A1

BOX

1шт.

7

375374R1

RING

1шт.

11

341418A2

SEAL,40.87mm ID x 50mm OD x 3.53mm Thk

1шт.

12

241385A3

GEAR

Inner

1шт.

13

241386A2

PLATE

Outer

1шт.

14

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

A77361

ADAPTER

Incl 20 - 23

1шт.

20

A151928

DRIVE SHAFT

Adapter, 45mm (1-3/4 in) 20 Spline Output Shaft to 35mm (1-3/8 in) 21 Spline

1шт.

21

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

22

131-510

LOCK NUT,1/2"-13

2шт.

23

A30061

WASHER

2шт.
