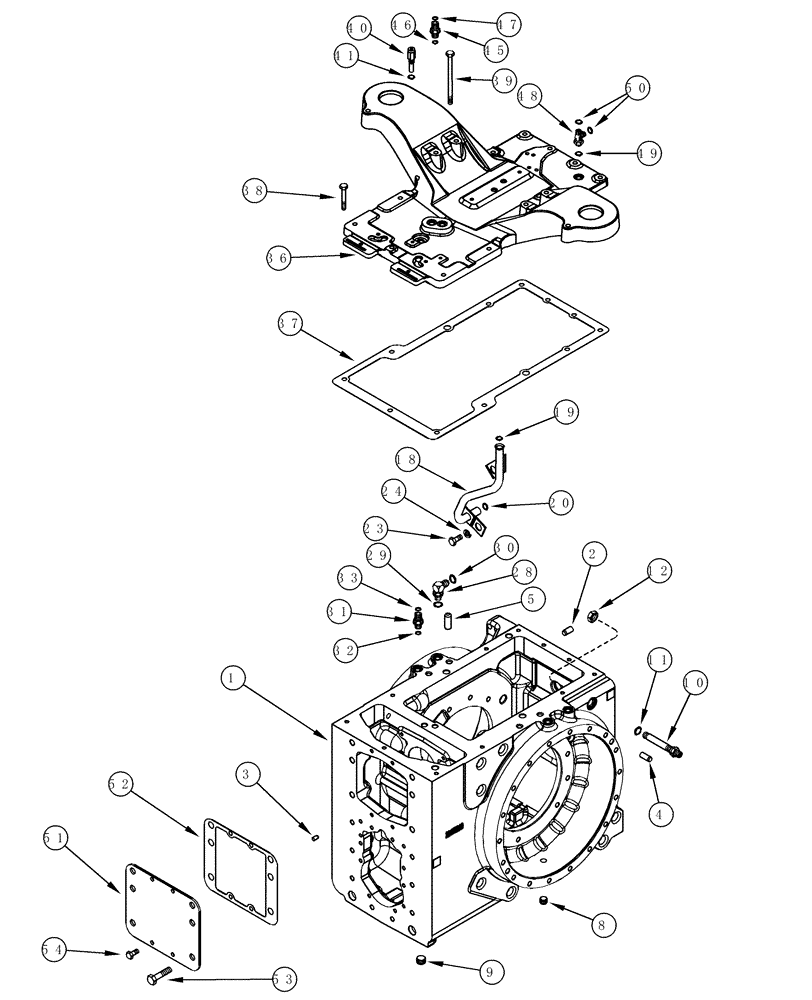

Запчасти Case IH MX200 (06-27) - REAR AXLE HOUSING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
236517A5
HOUSING
Inc. 2 - 9
1шт.
2
837-16035
DOWEL,M16 x 35
16 x 35 mm
1шт.
3
837-10020
DOWEL,M10 x 20
M10 x 20
2шт.
4
837-16040
DOWEL,M16 x 40
4шт.
5
37-11232
DOWEL,3/4" x 2"
3/4 x 2
2шт.
8
192791A1
PLUG
1/2 in
2шт.
9
192792A1
PLUG
3/4 in
1шт.
10
93200C1
UNION
1шт.
11
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
12
218-1254
LOCK NUT,Blkhd, 9/16"-18
1шт.
18
238869A1
TUBE
1шт.
19
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
20
239-5112
O-RING,Rect, .5" ID x .688" OD, Cl 5
1шт.
23
613-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
2шт.
24
892-11012
LOCK WASHER,M12
2шт.
28
700-305
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. 29, 30
2шт.
29
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
30
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
31
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Inc. 32,33
2шт.
32
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
33
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
36
364900A3
COVER
1шт.
37
282162A1
GASKET,0.79mm Thk
1шт.
38
828-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9
11шт.
39
863-12150
HEX SOC SCREW,M12 x 150mm, Cl 12.9
M12 x 150; 12.9
4шт.
40
A186005
SENSOR
1шт.
41
238-5115
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
1шт.
45
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. 46,47
2шт.
46
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
47
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
48
700-412
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Inc. 49,50
1шт.
49
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
50
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
51
236602A1
COVER
For Tractors Without Three Point Hitch
1шт.
53
628-20045
BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd
6шт.
54
628-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd
M12 x 25; 10.9
4шт.
Выбрано товаров: 37
