Запчасти Case IH MX200 (06-24) - VALVE ASSY TRANSMISSION CONTROL, EUROPE ONLY (06) - POWER TRAIN

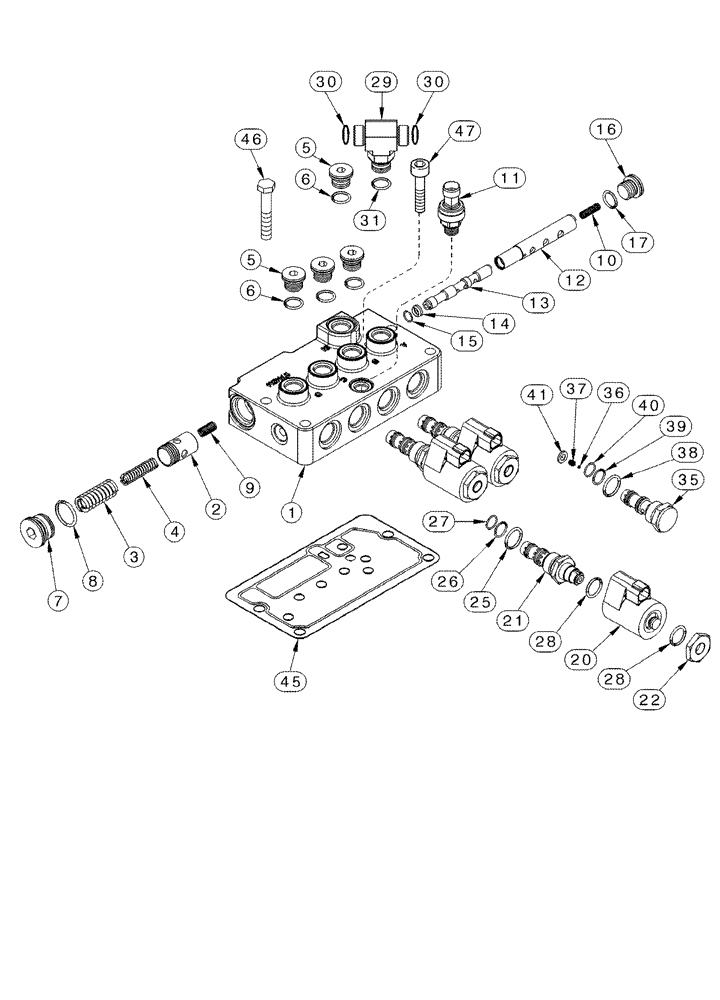

Схема запчастей Case IH MX200 - (06-24) - VALVE ASSY TRANSMISSION CONTROL, EUROPE ONLY (06) - POWER TRAIN
6
38
45
16
12
9
36
30
27
29
1
47
3
20
40
41
21
8
10
46
5
26
37
17
28
15
31
14
13
4
11
25
35
2
22
28
39
30
7
6
5

Артикул

Название

Примечание

Количество

181434A7

VALVE

Part Number Stamped On Part, Consists Of 1 - 41

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

222642A6

PISTON

1шт.

3

249130A1

SPRING

Outer

1шт.

4

249129A1

SPRING

Inner

1шт.

5

221578A1

PLUG,M18 x 1.5 ORB

Includes 6

4шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

221580A1

PLUG,M27 x 2 ORB

Includes 8

1шт.

8

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

9

281397A3

SPRING

1шт.

10

225246A3

SPRING

1шт.

11

231751A1

PRESSURE SWITCH

Pressure

1шт.

280123A6

SPOOL

1шт.

12

NSS

NOT SOLD SEPARAT

Spool

1шт.

13

NSS

NOT SOLD SEPARAT

Spool

1шт.

14

NSS

NOT SOLD SEPARAT

Plug

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

16

221578A1

PLUG,M18 x 1.5 ORB

Includes 17

1шт.

17

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

181434A7

VALVE

Consists Of 1 - 41

1шт.

234783A7

SOLENOID

Consists Of 20 - 28

3шт.

20

NSS

NOT SOLD SEPARAT

Coil

1шт.

21

NSS

NOT SOLD SEPARAT

Cartridge

1шт.

22

252462A2

NUT

1шт.

304317A1

SEAL KIT

Inc. 25 - 28

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

27

256633A1

O-RING,1.24mm Thk x 12.9mm ID, Cl 5

12,9 ID x 1,24 mm

1шт.

28

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

29

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

13/16 fc sl x 18 Or, Inc. 30,31

1шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

31

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

235532A2

VALVE, PRESSURE RELI

EF Consists Of 35 - 41

1шт.

35

NSS

NOT SOLD SEPARAT

Valve, Check

1шт.

36

NSS

NOT SOLD SEPARAT

Ball

1шт.

37

NSS

NOT SOLD SEPARAT

Spring

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

39

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

40

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

41

NSS

NOT SOLD SEPARAT

Plug

1шт.

45

255527A4

GASKET

1шт.

46

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

47

861-8060

HEX SOC SCREW,M8 x 60mm, Cl 12.9

M8 x 60; 12,9

1шт.

Выбрано товаров: 43
