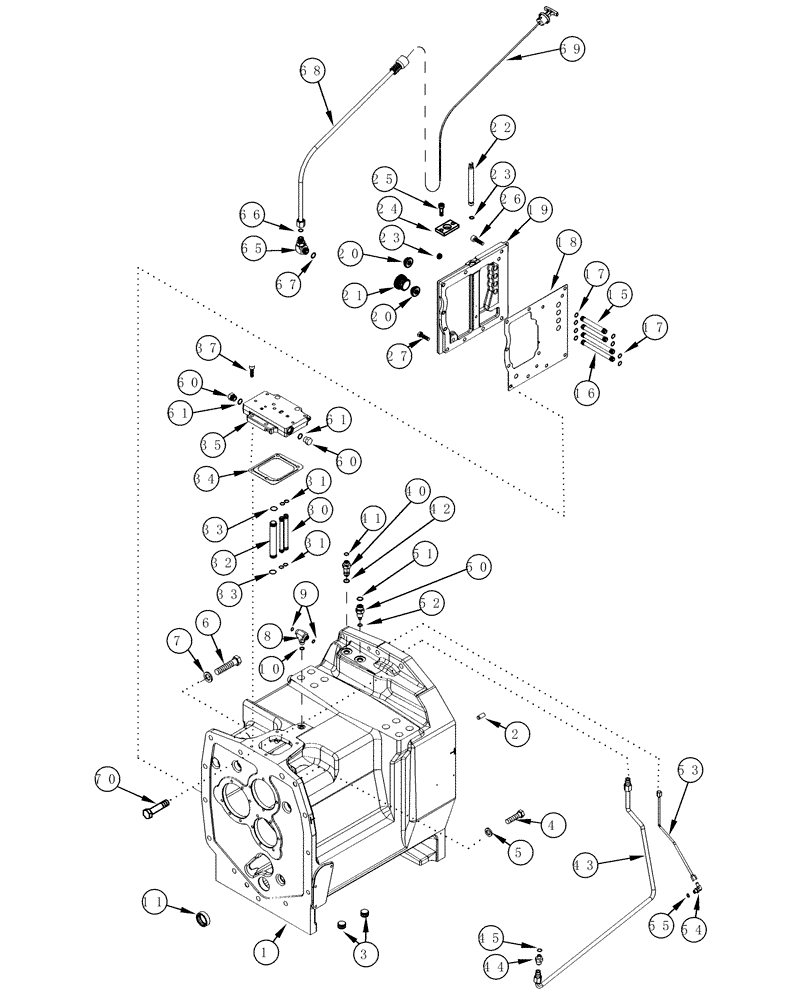

Запчасти Case IH MX200 (06-03) - SPEED TRANSMISSION HOUSING (06) - POWER TRAIN

1

307087A2

HOUSING

Inc. 2, 3

1шт.

1

87314903

KIT

Inc. 2, 3

1шт.

Replaces 307087A2. Also Order 1 of 700-438

1шт.

2

837-12030

DOWEL,M12 x 30mm OAL

2шт.

3

192792A1

PLUG

3/4 in

2шт.

4

813-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

Hex, M16 x 60, 8.8, Full Thd

8шт.

4

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

9шт.

6

828-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

1шт.

7

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

1шт.

8

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

Includes 9,10

1шт.

8

700-438

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Used With 87435948 Housing, Inc. 9, 10A

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10a

637-63173

O-RING,2.2mm Thk x 17.3mm ID, Cl 6, 75 Duro

1шт.

11

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

1шт.

15

235976A2

TUBE,8 mm ID, 13 mm OD

2шт.

16

235977A2

TUBE,13 mm OD

2шт.

17

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

8шт.

18

234157A5

GASKET,0.92mm Thk

1шт.

19

253671A4

PLATE ASSY.

Inc. 20 - 25

1шт.

20

1994615C2

VALVE, CHECK

2шт.

21

221579A1

PLUG,M22 x 1.5 ORB

1шт.

22

234802A2

PIN,15.8mm OD x 164.91mm L

1шт.

23

238-5208

O-RING,0.139" Thk x 0.609" ID, -208, Cl 5, 75 Duro

1шт.

24

315904A1

RETAINING PLATE

1шт.

25

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

2шт.

26

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

1шт.

27

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

30

235977A2

TUBE,13 mm OD

2шт.

31

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

4шт.

32

300827A1

TUBE,22.85 mm OD, 141.8 mm Length

1шт.

33

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

2шт.

34

253805A1

GASKET,0.92mm Thk

1шт.

35

304623A1

PLATE

1шт.

See Figures 06-20, 06-21, 06-23 and 06-24 for upper Gasket and Transmission Valve

1шт.

37

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

M10 x 35; 12,9

4шт.

40

93103C1

UNION

With Creep Speed

1шт.

41

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

43

256955A2

TUBE,12.7 mm OD, 673, 415.5 mm Length

With Creep Speed

1шт.

44

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

With Creep Speed, Includes 45

1шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

50

93105C1

UNION

With Creep Speed

1шт.

51

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

52

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

53

311670A1

TUBE

With Creep Speed

1шт.

54

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

With Creep Speed, Includes 55

1шт.

55

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

60

214389

PLUG,3/4" - 16 ORB

Includes Ref. 61, Without Creep Speed

2шт.

61

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

65

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 66, 67

1шт.

66

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

67

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

68

295149A1

TUBE,0.5" OD, 511, 380 mm Length

1шт.

69

295316A1

DIPSTICK,786.87mm L

1шт.

70

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

2шт.
