Запчасти Case IH MX200 (06-02) - TRANSMISSION DROP BOX (06) - POWER TRAIN

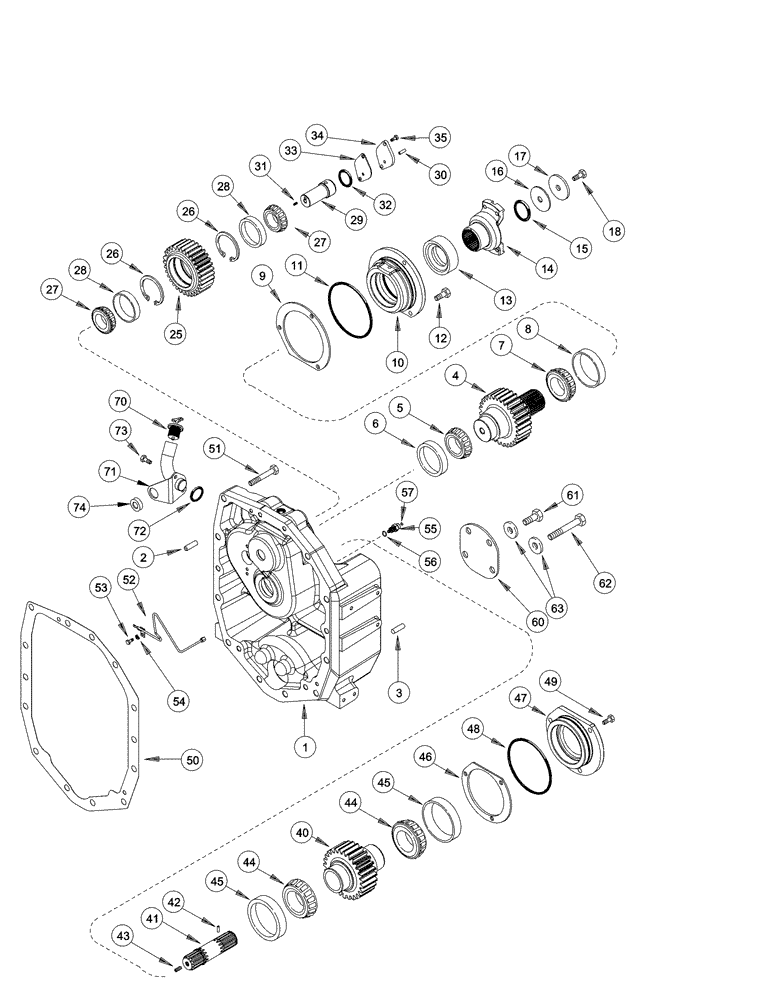

Схема запчастей Case IH MX200 - (06-02) - TRANSMISSION DROP BOX (06) - POWER TRAIN
49
43
29
72
51
42
44
4
25
53
32
56
50
26
16
31
71
55
52
48
30
12
44
15
40
41
26
27
9
14
28
2
8
46
34
35
47
74
18
10
73
63
60
17
3
62
1
54
61
45
5
6
27
13
45
11
7
70
33
28
57

Артикул

Название

Примечание

Количество

1

225171A5

HOUSING

Includes 2,3

1шт.

2

375362R1

PIN,12.69mm OD x 34.8mm L

1/2 x 1-3/8

2шт.

3

837-20040

DOWEL,M20 x 40

20 x 40 mm

2шт.

4

258093A2

GEAR SHAFT

30T

1шт.

5

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

2-1/4 inch ID

1шт.

6

105496H

BEARING CUP,97.63mm OD x 19.45mm W

1шт.

7

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

1шт.

8

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

275216A2

SHIM KIT

Consists Of 9

1шт.

9

341206A1

SHIM,146.4mm ID x 191mm OD x 0.15mm Thk

0,152 mm

2шт.

9

341205A1

SHIM,0.178mm Thk

0,178 mm

2шт.

9

275214A1

SHIM,146mm ID x 191mm OD x 0.2mm Thk

0,203 mm

2шт.

9

228267A1

SHIM,146.4mm ID x 191mm OD x 0.36mm Thk

0,356 mm

2шт.

9

228270A1

SHIM,146.4mm ID x 191mm OD x 0.64mm Thk

0,635 mm

2шт.

10

221240A3

BALL RACE

1шт.

11

238-5161

O-RING,0.103" Thk x 5.438" ID, -161, Cl 5, 75 Duro

5-7/16 ID x 3/32

1шт.

12

339770A1

BOLT,Hex, M10 x 30mm, Cl 10.9, W/ Sealant

3шт.

13

225820A1

OIL SEAL,66.55mm ID x 92.18mm OD x 11.68mm Thk

1шт.

14

259188A1

YOKE

UNIVERSAL JOINT YOKE MX180(1), MX200(1), MX220(1)

1шт.

14

301843A1

YOKE

UNIVERSAL JOINT YOKE MX240(1), MX270(1)

1шт.

15

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

276639A1

SHIM KIT

Consists Of 16

1шт.

16

276638A1

SHIM,16.5mm ID x 54mm OD x 0.2mm Thk

0,203 mm

2шт.

16

230486A1

SHIM,16.5mm ID x 54mm OD x 0.36mm Thk

0,356 mm

2шт.

16

230487A1

SHIM,16.5mm ID x 54mm OD x 0.5mm Thk

0,508 mm

2шт.

16

230488A1

SHIM,16.5mm ID x 54mm OD x 0.56mm Thk

0,559 mm

2шт.

16

230490A1

SHIM,16.5mm ID x 54mm OD x 0.64mm Thk

0,635 mm

2шт.

17

230497A1

WASHER,17.5mm ID x 67.5mm OD x 6mm Thk

1шт.

18

628-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

Hex, M16 x 35, 10.9, Full Thd

1шт.

25

258095A1

PINION

32T

1шт.

26

101-21325

SNAP RING,#325, 3.488", Int

No. 325

2шт.

27

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

2шт.

28

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

2шт.

29

228304A2

SHAFT ASSY.

Inc. 30,31

1шт.

30

837-8020

DOWEL,8mm OD x 20mm L

8 x 20 mm

1шт.

31

1342851C1

PLUG

10 mm

1шт.

32

238-5140

O-RING,0.103" Thk x 2.237" ID, -140, Cl 5, 75 Duro

1шт.

275217A2

SHIM KIT

Consists Of 33

1шт.

33

341208A1

SHIM,13.50mm ID x 59mm OD x 0.152mm Thk

0,152 mm

2шт.

33

341207A1

SHIM,13.5mm ID x 59mm OD x 0.18mm Thk

0,178 mm

2шт.

33

275215A1

SHIM,13.5mm ID x 59mm OD x 0.2mm Thk

0,203 mm

2шт.

33

228300A1

SHIM,13.5mm ID x 59mm OD x 0.36mm Thk

0,356 mm

2шт.

33

228303A1

SHIM,13.50mm ID x 59mm OD x 0.635mm Thk

0,635 mm

2шт.

34

258469A1

COVER PLATE

1шт.

35

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

M10 x 30; 10,9

2шт.

40

258096A2

GEAR SHAFT

27T

1шт.

41

282726A1

SHAFT

Without Creep Speed, Inc. 42,43

1шт.

41

282724A1

SHAFT

With Creep Speed, Inc. 42,43

1шт.

42

38-3605

PIN,3/32" x 5/16", Coiled

1шт.

43

284151A1

SET SCREW,M10 x 1.5 x 10mm

M10 x 10

1шт.

44

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

2шт.

45

105496H

BEARING CUP,97.63mm OD x 19.45mm W

2шт.

275219A2

SHIM KIT

Consists Of 46

1шт.

46

341210A1

SHIM,0.152mm Thk

0,152 mm

2шт.

46

341209A1

SHIM,123.4mm ID x 175mm OD x 0.18mm Thk

0,178 mm

2шт.

46

275213A1

SHIM,123.4mm ID x 175mm OD x 0.2mm Thk

0,203 mm

2шт.

46

228261A1

SHIM,123.4mm ID x 175mm OD x 0.36mm Thk

0,356 mm

2шт.

46

228265A1

SHIM,123.4mm ID x 175mm OD x 0.64mm Thk

0,635 mm

2шт.

47

226188A3

CAGE

1шт.

48

238-5157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

1шт.

49

339770A1

BOLT,Hex, M10 x 30mm, Cl 10.9, W/ Sealant

3шт.

50

230760A2

GASKET,0.79mm Thk

1шт.

51

828-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

2шт.

52

259979A2

TUBE

1шт.

53

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

54

892-11010

LOCK WASHER,M10

1шт.

55

93105C1

UNION

1шт.

56

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

57

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

60

223420A1

COVER

Without Mechanical Front Drive

1шт.

61

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

62

828-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

M20 x 150; 10.9

2шт.

63

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

70

279640A1

CAP

Transmission Oil Filler

1шт.

71

295087A1

TUBE

1шт.

72

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

73

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

74

248-2181

GROMMET,1" ID x 3/8" Groove Dia

1 ID

1шт.

Выбрано товаров: 78
