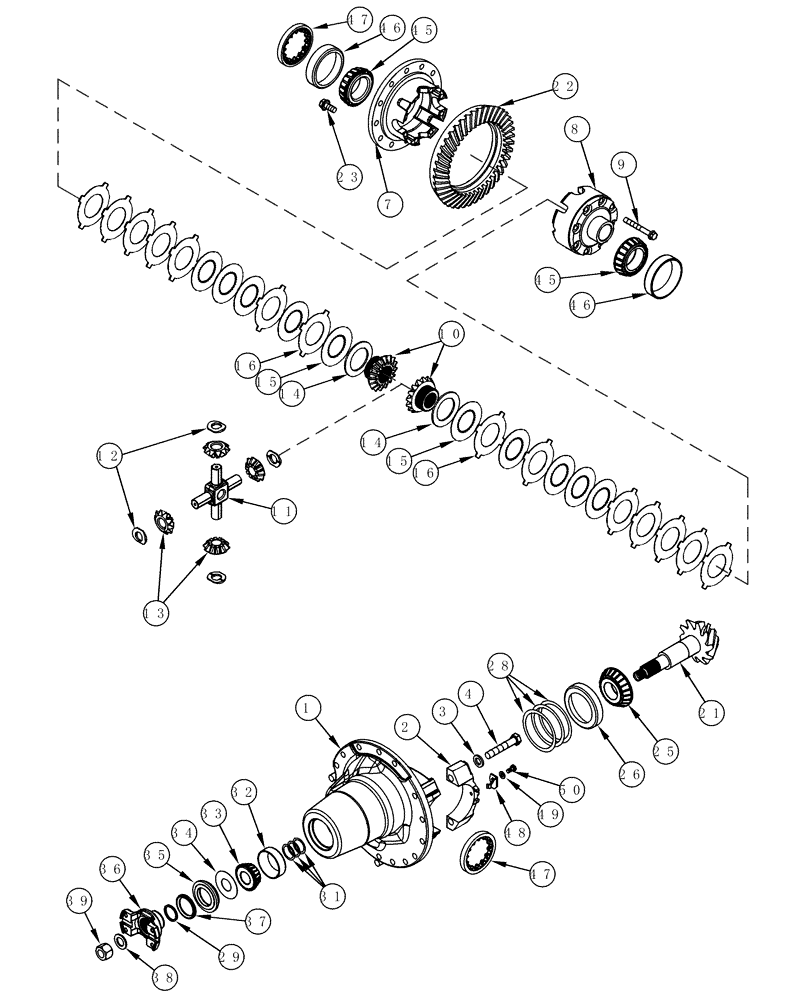

Запчасти Case IH MX200 (05-15) - CARRIER AND DIFFERENTIAL - M.F.D., MX180, MX200, MX220 (05) - STEERING

191812A8

4WD AXLE ASSY

MX180(1), MX200(1), See Figure 5-11

1шт.

191812A9R

REMAN-AXLE, MFD

Remanufactured, Axle MX180 - MX270

1шт.

191812A9C

CORE-AXLE, MFD

Return Part Number

1шт.

191813A8

4WD AXLE ASSY

MX220(1), See Figure 5-11

1шт.

191813A9R

REMAN-AXLE, MFD

Remanufactured, Axle MX180 - MX270

1шт.

191813A9C

CORE-AXLE, MFD

Return Part Number

1шт.

292566A1

DIFFERENTIAL

Consists Of 1 - 50

1шт.

1

321515A1

CARRIER

Inc. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Cap

2шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

345688A2

DIFFERENTIAL

Inc. 7 - 16

1шт.

7

NSS

NOT SOLD SEPARAT

Housing

1шт.

8

NSS

NOT SOLD SEPARAT

Housing

1шт.

9

1997853C1

BOLT

8шт.

377176A1

KIT

Inc. 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

Gear

2шт.

11

NSS

NOT SOLD SEPARAT

Shaft

1шт.

12

NSS

NOT SOLD SEPARAT

Washer, Thrust

4шт.

13

NSS

NOT SOLD SEPARAT

Gear

4шт.

191812A7

4WD AXLE ASSY

MX180(1), MX200(1), See Figure 5-16

1шт.

191812A9R

REMAN-AXLE, MFD

Remanufactured, Axle MX180 - MX270

1шт.

191812A9C

CORE-AXLE, MFD

Return Part Number

1шт.

191813A7

4WD AXLE ASSY

MX220(1), See Figure 5-17

1шт.

377177A1

KIT

Inc. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Plate

4шт.

15

NSS

NOT SOLD SEPARAT

Disc, Friction

10шт.

16

NSS

NOT SOLD SEPARAT

Plate

14шт.

1968293C1

BEVEL GEAR

Consists Of 21, 22

1шт.

21

NSS

NOT SOLD SEPARAT

Shaft, Pinion

1шт.

22

NSS

NOT SOLD SEPARAT

Ring, Gear

1шт.

23

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

12шт.

25

1968296C1

TAPERED BEARING

1шт.

26

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

1шт.

1277229C1

PACKAGE

Consists Of 28

1шт.

28

NSS

NOT SOLD SEPARAT

Shim

5шт.

28

NSS

NOT SOLD SEPARAT

Shim

5шт.

28

NSS

NOT SOLD SEPARAT

Shim

5шт.

29

251189A1

SPACER

1шт.

191812A7

4WD AXLE ASSY

MX180(1), MX200(1), See Figure 5-16

1шт.

191813A7

4WD AXLE ASSY

MX220(1), See Figure 5-17

1шт.

318504A1

SHIM KIT

Inc. 31

1шт.

31

NSS

NOT SOLD SEPARAT

Shim

1шт.

31

NSS

NOT SOLD SEPARAT

Shim

1шт.

31

NSS

NOT SOLD SEPARAT

Shim

1шт.

31

NSS

NOT SOLD SEPARAT

Shim

1шт.

31

NSS

NOT SOLD SEPARAT

Shim

1шт.

31

NSS

NOT SOLD SEPARAT

Shim

1шт.

31

NSS

NOT SOLD SEPARAT

Shim

1шт.

31

NSS

NOT SOLD SEPARAT

Shim

1шт.

31

NSS

NOT SOLD SEPARAT

Shim

1шт.

31

NSS

NOT SOLD SEPARAT

Shim

1шт.

32

1968289C1

BEARING ASSY

1шт.

33

1968288C1

BEARING ASSY

1шт.

34

318845A1

SLINGER,31.75mm ID x 72.26mm OD x 0.8mm Thk

1шт.

35

H758326

OIL SEAL

1шт.

36

302746A1

YOKE

UNIVERSAL JOINT YOKE Inc. 37

1шт.

37

345427C1

SLINGER

1шт.

38

H224501

WASHER

7/8 inch

1шт.

39

232-46314

LOCK NUT,7/8"-14, GC

1шт.

45

1968291C1

ROLLER BEARING

2шт.

46

1968292C1

BEARING

2шт.

47

1277233C1

RING NUT,14T

2шт.

48

1277234C1

CLIP

2шт.

49

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

50

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.
