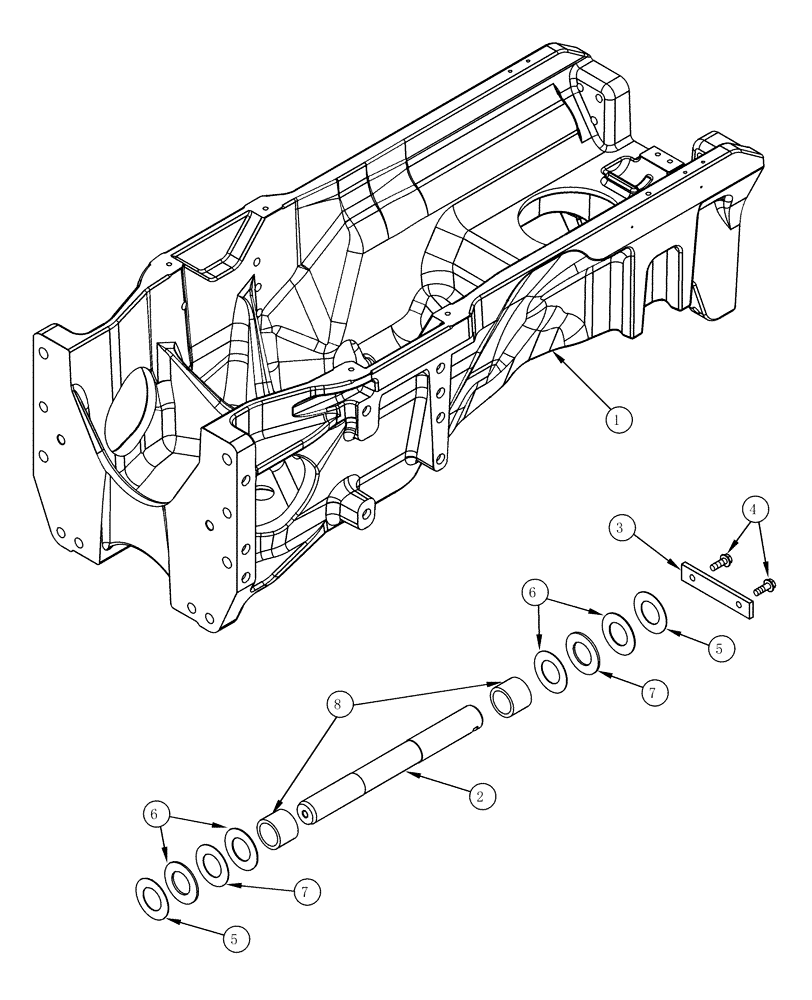

Запчасти Case IH MX200 (05-08) - FRONT AXLE MOUNTING (05) - STEERING

1

REF

INSTRUCTION

Frame, See Figure 9-01

1шт.

2

226687A3

PIN,49.75mm OD x 475mm L

1шт.

3

226686A3

PLATE

1шт.

4

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

2шт.

5

186869A1

SHIM,50.3mm ID x 90mm OD x 2.26mm Thk

2.26 mm

1шт.

6

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

flat

1шт.

7

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

thrust

2шт.

8

196294A1

BUSHING

2шт.
