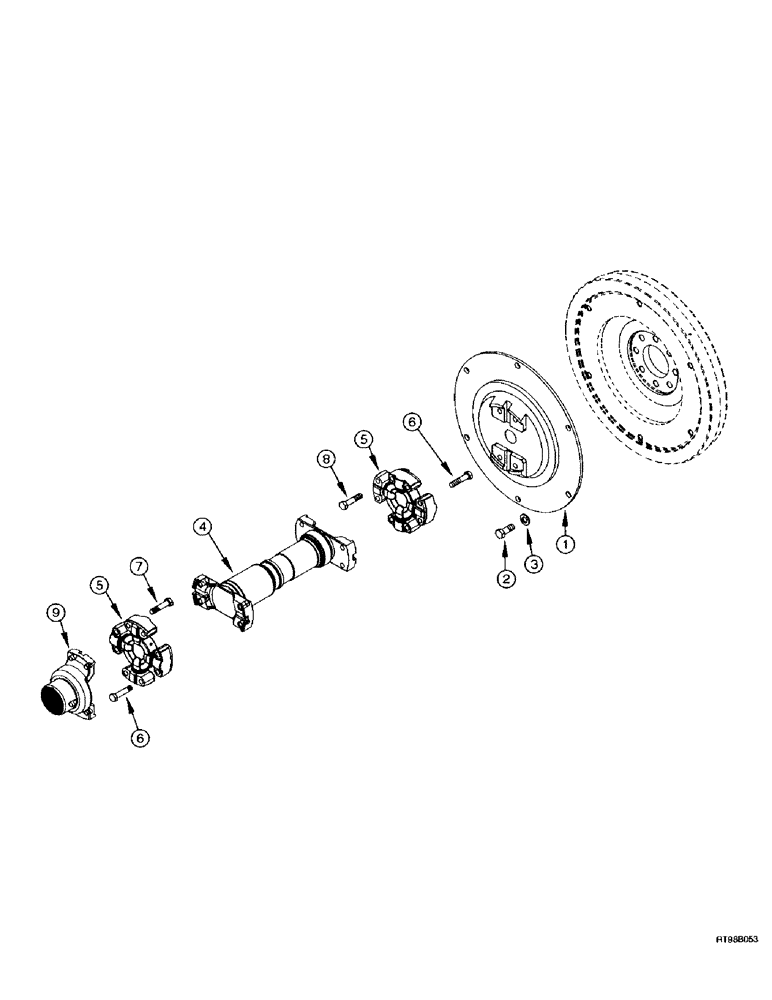

Запчасти Case IH MX180 (6-002[A]) - TRANSMISSION, DRIVE SHAFT, MX180, MX200, MX220 (06) - POWER TRAIN

1

248408A2

CLUTCH DISC,354.33mm OD

1шт.

1

248408A2R

REMAN-CLUTCH DISC

1шт.

1

248408A2C

CORE-CLUTCH DISC

Reman Return Number

1шт.

2

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

3

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

4

259075A2

DRIVE SHAFT

Includes: Ref. 5, 6

1шт.

5

259076A1

U-JOINT SPIDER

2шт.

6

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

7

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

8

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

9

259188A1

YOKE

UNIVERSAL JOINT YOKE input

1шт.
