Запчасти Case IH MX180 (5-068) - FRONT WHEELS, M.F.D., MX180, MX200, MX220 (05) - STEERING

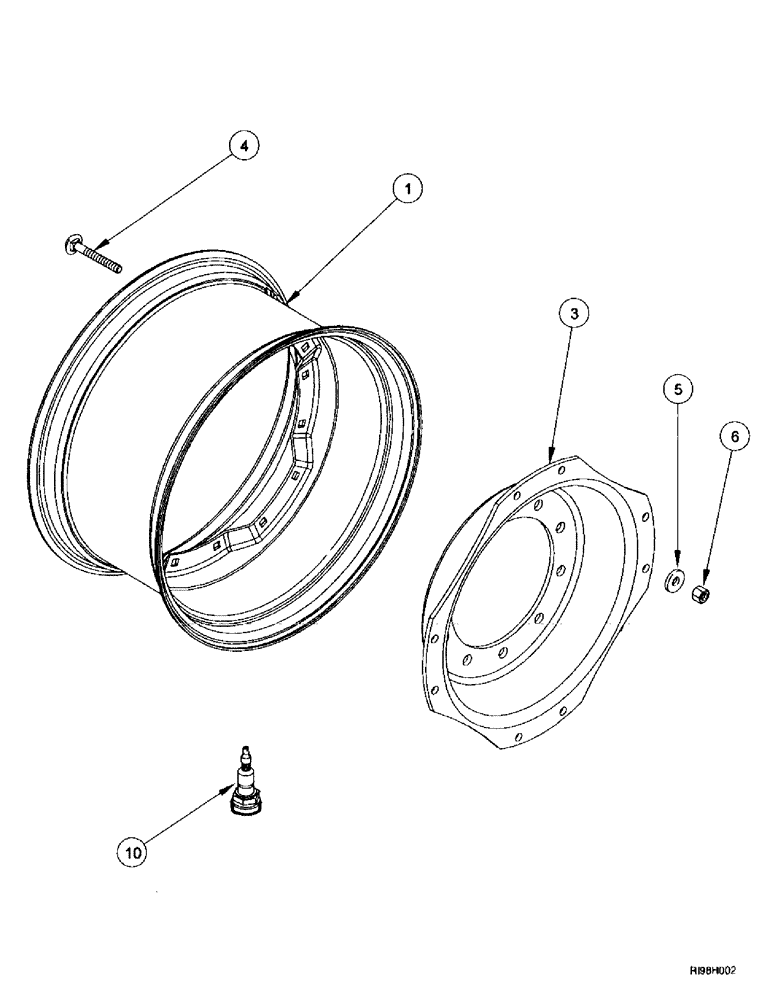

Схема запчастей Case IH MX180 - (5-068) - FRONT WHEELS, M.F.D., MX180, MX200, MX220 (05) - STEERING
5
3
1
4
10
6

Артикул

Название

Примечание

Количество

259366A1

WHEEL ASSY.

W15L x 28, for tires 420/85R28, 16.9R28, order from machinery price list, Includes: Ref. 1 - 6

2шт.

1

188333A1

RIM

WHEEL wheel, W15L x 28

1шт.

3

240677A1

WHEEL DISC

DISC wheel, 10-bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

259367A1

WHEEL ASSY.

DW18L x 28, for tires 600/65R28, order from machinery price list, Includes: Ref. 1 - 6

2шт.

1

188350A1

RIM

WHEEL wheel, DW18L x 28

1шт.

3

240677A1

WHEEL DISC

DISC wheel, 10-bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

259368A1

WHEEL ASSY

DW13 x 30, for tires 380/85R30, 14.9R30, order from machinery price list, Includes: Ref. 1 - 6

2шт.

1

188338A1

RIM

WHEEL wheel, DW13 x 30

1шт.

3

240677A1

WHEEL DISC

DISC wheel, 10-bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

259369A1

WHEEL ASSY.

DW15L x 30, for tires 480/70R30, 420/90R30, 16.9R30, order from machinery price list, Includes: Ref. 1 - 6

2шт.

1

188341A1

RIM

WHEEL wheel, DW15L x 30

1шт.

3

240677A1

WHEEL DISC

DISC wheel, 10-bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

259372A1

WHEEL ASSY.

W13 x 34, for tires 380/85R34, 14.9R34, order from machinery price list, Includes: Ref. 1 - 6

2шт.

1

231998A1

RIM

WHEEL wheel, W13 x 34

1шт.

3

259373A1

WHEEL DISC

DISC wheel

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

259370A1

WHEEL ASSY.

W15L x 34, for tires 480/70R34, order from machinery price list, Includes: Ref. 1 - 6

2шт.

1

259416A1

RIM

WHEEL wheel, W15L x 34

1шт.

3

259373A1

WHEEL DISC

DISC wheel

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

297354A1

WHEEL

ASSY, W10 x 38, for tires 320/85R38, order from machinery price list, Includes: Ref. 1 - 6

2шт.

1

297355A1

RIM

WHEEL wheel, W10 x 38

1шт.

3

297356A1

DISC

wheel

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

BOLT

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

10

A20058

VALVE STEM

2шт.

Выбрано товаров: 43
