Запчасти Case IH MX180 (5-040) - FRONT AXLE DRIVE SHAFT, M.F.D. (05) - STEERING

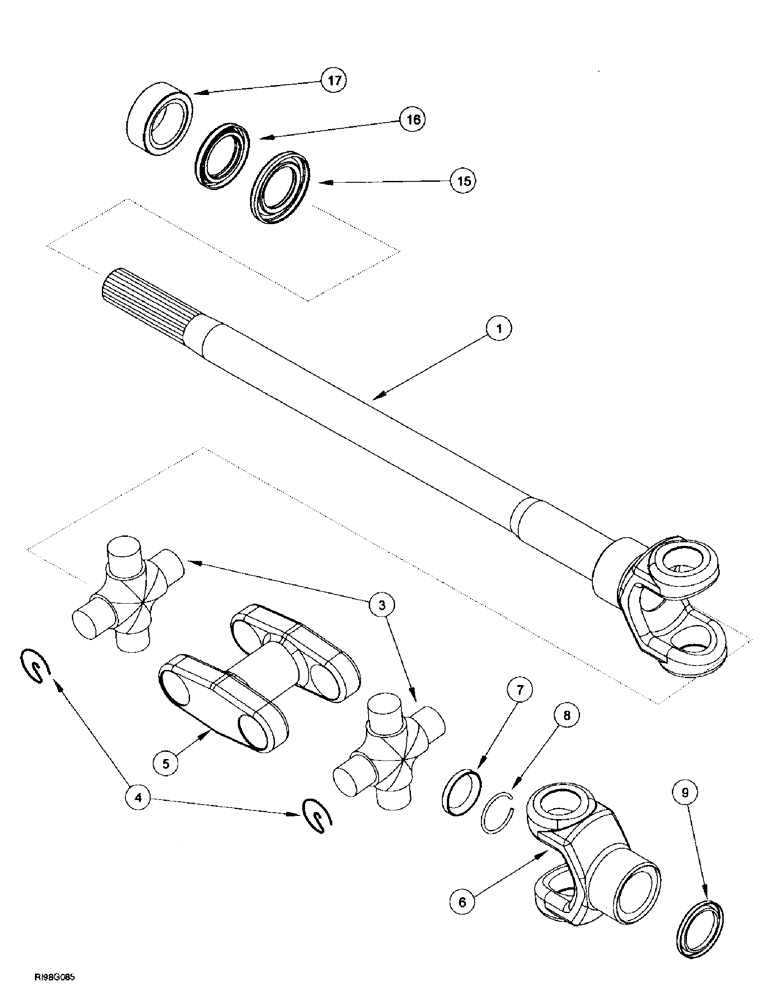

Схема запчастей Case IH MX180 - (5-040) - FRONT AXLE DRIVE SHAFT, M.F.D. (05) - STEERING
6
8
16
4
1
15
5
9
3
7
17

Артикул

Название

Примечание

Количество

191812A5

4WD AXLE ASSY

front drive, MX180, MX200, see Figures 5-030 - 5-064

1шт.

191813A5

4WD AXLE ASSY

front drive, MX220, see Figures 5-030 - 5-064

1шт.

191814A4

4WD AXLE ASSY

front drive, MX240, MX270, see Figures 5-030 - 5-064

1шт.

191814A9R

REMAN-AXLE, MFD

Remanufactured Axle, N.A. Only

1шт.

191814A9C

CORE-AXLE, MFD

Return Number, N.A. Only

1шт.

302755A1

AXLE

AXLE ASSY, front drive, right-hand shown, Includes: Ref. 1 - 9

1шт.

395734A1R

REMAN-GEAR

Reman for new P/N 302755A1

1шт.

395734A1C

CORE-GEAR

Return Number

1шт.

302756A1

AXLE

AXLE ASSY, front drive, left-hand, Includes: Ref. 1 - 9

1шт.

1

302762A1

LONG SHAFT

axle, right-hand

1шт.

1

302763A1

LONG SHAFT

axle, left-hand

1шт.

247298A1

BEARING ASSY

PACKAGE, Includes: Ref. 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

JOINT universal

1шт.

4

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

5

231020A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

6

231021A1

YOKE

UNIVERSAL JOINT YOKE Includes: Ref. 7 - 9

1шт.

7

1961753C1

SEAL

1шт.

8

1277405C1

RING

retaining

1шт.

9

1287608C1

SEAL

1шт.

15

302957A1

OIL SEAL,40mm ID x 67mm OD x 8mm Thk

2шт.

16

302956A1

OIL SEAL,40mm ID x 60mm OD x 8mm Thk

2шт.

17

302958A1

BUSHING,40mm ID x 60mm OD x 22mm L

2шт.

Выбрано товаров: 22
