Запчасти Case IH MX180 (5-030) - FRONT AXLE HOUSING, STEERING KNUCKLE AND TIE ROD, M.F.D., MX180, MX200, MX220 (05) - STEERING

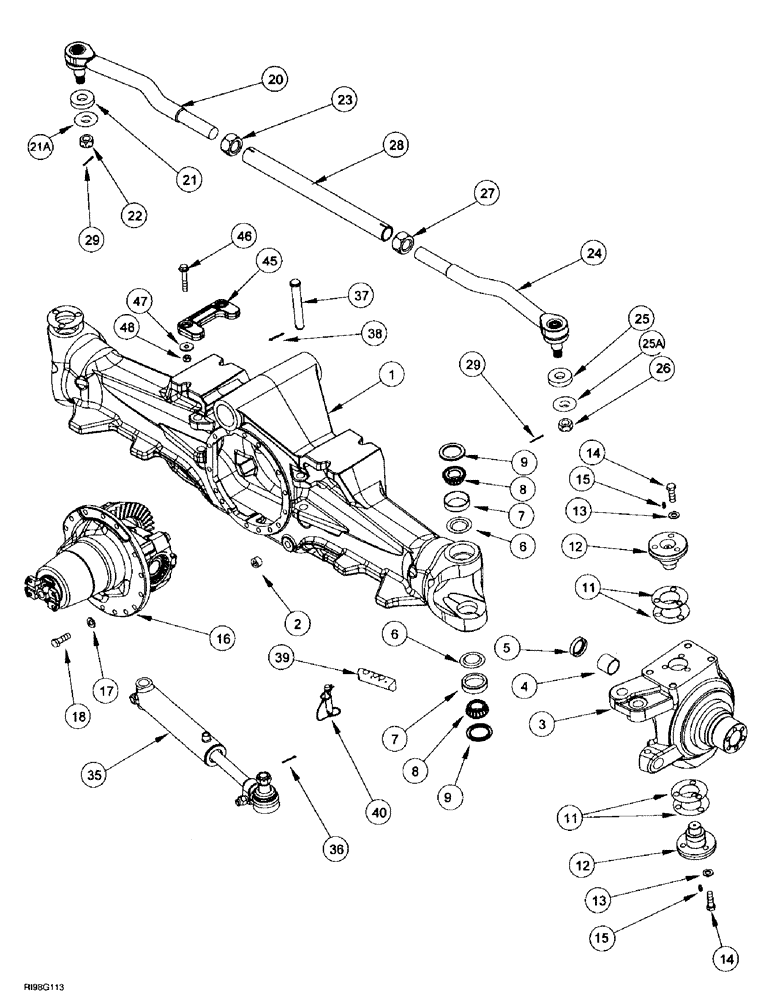

Схема запчастей Case IH MX180 - (5-030) - FRONT AXLE HOUSING, STEERING KNUCKLE AND TIE ROD, M.F.D., MX180, MX200, MX220 (05) - STEERING
23
7
14
36
7
38
22
39
20
27
11
28
35
29
46
6
26
24
2
9
13
17
29
5
16
6
37
25a
13
12
8
8
48
40
1
15
11
4
21a
15
9
12
25
21
14
47
18
3
45

Артикул

Название

Примечание

Количество

191812A5

4WD AXLE ASSY

front drive, MX180, MX200, see Figures 5-030 - 5-064

1шт.

191813A5

4WD AXLE ASSY

front drive, MX220, see Figures 5-030 - 5-064

1шт.

1

321521A1

HOUSING

axle

1шт.

2

221-887

PLUG

3/4

1шт.

3

295163A2

STEERING KNUCKLE

ASSY, right-hand, also order 292562A1, Includes: Ref. 4, 5, Serial Range: -JJA0097997

1шт.

If you have a unit prior to S/N JJA0097997, you must order the correct steering knuckle assembly, plus the 292562A1. Unit after S/N JJA0097997, you only order the correct knuckle assembly.

1шт.

3

295162A2

STEERING KNUCKLE

ASSY, left-hand, also order 292562A1, Includes: Ref. 4, 5, Serial Range: -JJA0097997

1шт.

If you have a unit prior to S/N JJA0097997, you must order the correct steering knuckle assembly, plus the 292562A1. Unit after S/N JJA0097997, you only order the correct knuckle assembly.

1шт.

4

235628A1

BUSHING

1шт.

5

128647A1

OIL SEAL

1шт.

6

1277271C1

RETAINER

4шт.

7

671033R1

BEARING, CUP

cup

4шт.

8

671032R1

TAPERED BEARING,33.34mm ID x 22.33mm W

4шт.

9

1277270C1

OIL SEAL

4шт.

310960A1

SHIM KIT

Includes: Ref. 11

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM

5шт.

11

NSS

NOT SOLD SEPARAT

SHIM

5шт.

11

NSS

NOT SOLD SEPARAT

SHIM

5шт.

11

NSS

NOT SOLD SEPARAT

SHIM

5шт.

11

NSS

NOT SOLD SEPARAT

SHIM

5шт.

11

NSS

NOT SOLD SEPARAT

SHIM

5шт.

12

294040A1

CAP

4шт.

13

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

15.5 x 28 x 3 mm

12шт.

14

627-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

12шт.

15

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, 1/4 tpr x 11/16

4шт.

16

REF

INSTRUCTION

CARRIER, see Figure 5-042

1шт.

17

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

15.5 x 28 x 3 mm

16шт.

18

627-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

16шт.

20

302643A1

BALL JOINT

ASSY, left-hand threads, Includes: Ref. 21 - 22

1шт.

333617A1

SEAL KIT

PACKAGE seals, Includes: Ref. 21, 21A

1шт.

21

NSS

NOT SOLD SEPARAT

BOOT

1шт.

21a

NSS

NOT SOLD SEPARAT

SPACER

1шт.

22

429-1314

NUT,7/8"-14, G8

7/8 NF; 8

1шт.

23

302648A1

NUT

left-hand threads, 1-3/8

1шт.

24

302645A1

BALL JOINT

ASSY, right-hand threads, Includes: Ref. 25 - 26

1шт.

333617A1

SEAL KIT

PACKAGE seals, Includes: Ref. 25, 25A

1шт.

25

NSS

NOT SOLD SEPARAT

BOOT

1шт.

25a

NSS

NOT SOLD SEPARAT

SPACER

1шт.

26

429-1314

NUT,7/8"-14, G8

7/8 NF; 8

1шт.

27

302649A1

NUT

right-hand threads, 1-3/8

1шт.

28

302647A1

TUBE,44 mm OD, 531 mm Length

ROD tie

1шт.

29

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

35

REF

INSTRUCTION

CYLINDER ASSY, see Figure 5-062

2шт.

36

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

37

292565A1

PIN,22.25mm OD x 155mm L

clevis

2шт.

38

733-4032

COTTER PIN,M4 x 32

2шт.

39

281914A1

ROD

ADJUSTMENT, (3 Hole) Steering Stop, Length 113 mm, If Used (Shown)

2шт.

39

451995A1

ADJUSTMENT ROD

(4 Hole) Steering Stop, Length 171 mm, If Used

2шт.

39

87368673

ADJUSTMENT ROD

(5 Hole) Steering Stop, Length 171 mm, If Used

2шт.

40

314449A1

LOCK PIN

2шт.

45

297333A1

BLOCK ASSY.

2шт.

46

844-12070

BOLT,Hvy Hex, M12 x 70mm, Cl 8.8

BOLT flange, M12 x 70; 8.8

4шт.

47

895-25012

WASHER,M12 x 37 x 3

13.5 x 37 x 3 mm

4шт.

48

829-1412

NUT,M12, Cl 10.9

4шт.
