Запчасти Case IH MX180 (5-022) - STEERING CYLINDER ASSEMBLY, 2-WHEEL DRIVE, MX180, MX200, MX220, N.A. ONLY (05) - STEERING

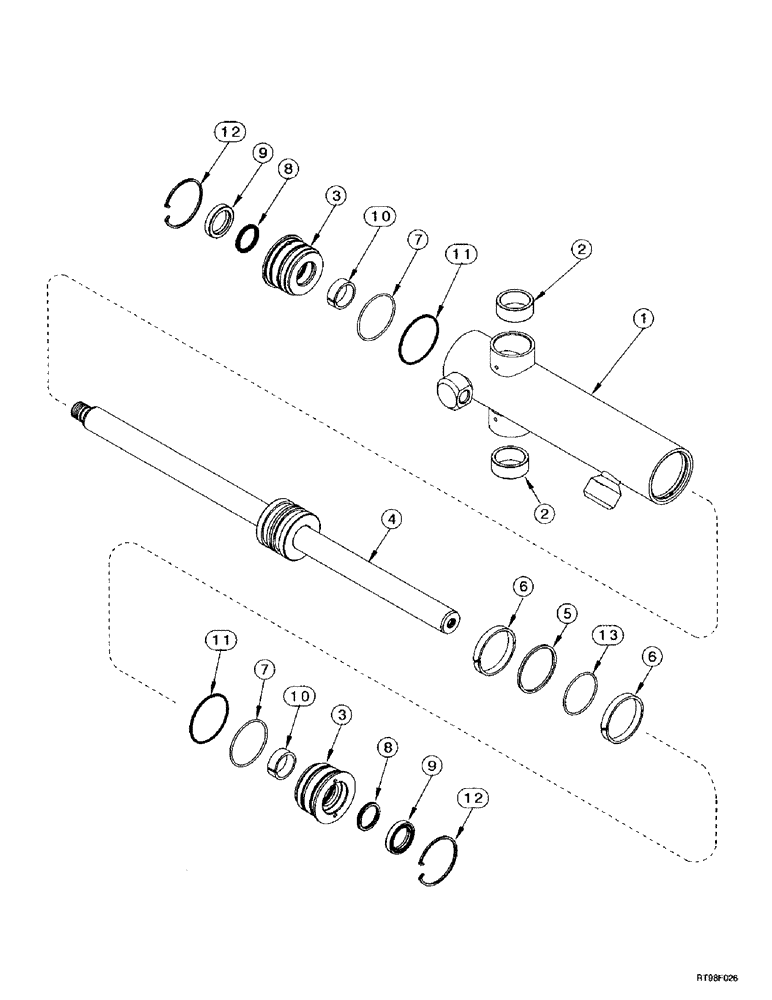

Схема запчастей Case IH MX180 - (5-022) - STEERING CYLINDER ASSEMBLY, 2-WHEEL DRIVE, MX180, MX200, MX220, N.A. ONLY (05) - STEERING
11
1
10
13
12
10
8
6
9
3
8
3
2
11
9
2
6
7
12
7
5
4

Артикул

Название

Примечание

Количество

241936A1

STEERING CYLINDER

ASSY, consists of: Ref. 1 - 13

1шт.

1

242063A1

HYD CYL SLEEVE

TUBE, Includes: Ref. 2

1шт.

2

1255304C1

BUSHING

2шт.

3

243089A1

CYLINDER END CAP

HEAD

2шт.

4

243090A1

PISTON ROD

1шт.

80448C3

SEAL KIT

PACKAGE seals, consists of: Ref. 5 - 13

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

6

NSS

NOT SOLD SEPARAT

RING

2шт.

7

NSS

NOT SOLD SEPARAT

RING backup

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL

2шт.

9

NSS

NOT SOLD SEPARAT

WIPER

2шт.

10

NSS

NOT SOLD SEPARAT

BEARING gland

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING

2шт.

12

NSS

NOT SOLD SEPARAT

RING retaining

2шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Выбрано товаров: 15
