(4-086) - LAMP, STROBE AND BEACON, N.A. ONLY

Запчасти Case IH MX180 (4-086) - LAMP, STROBE AND BEACON, N.A. ONLY (04) - ELECTRICAL SYSTEMS

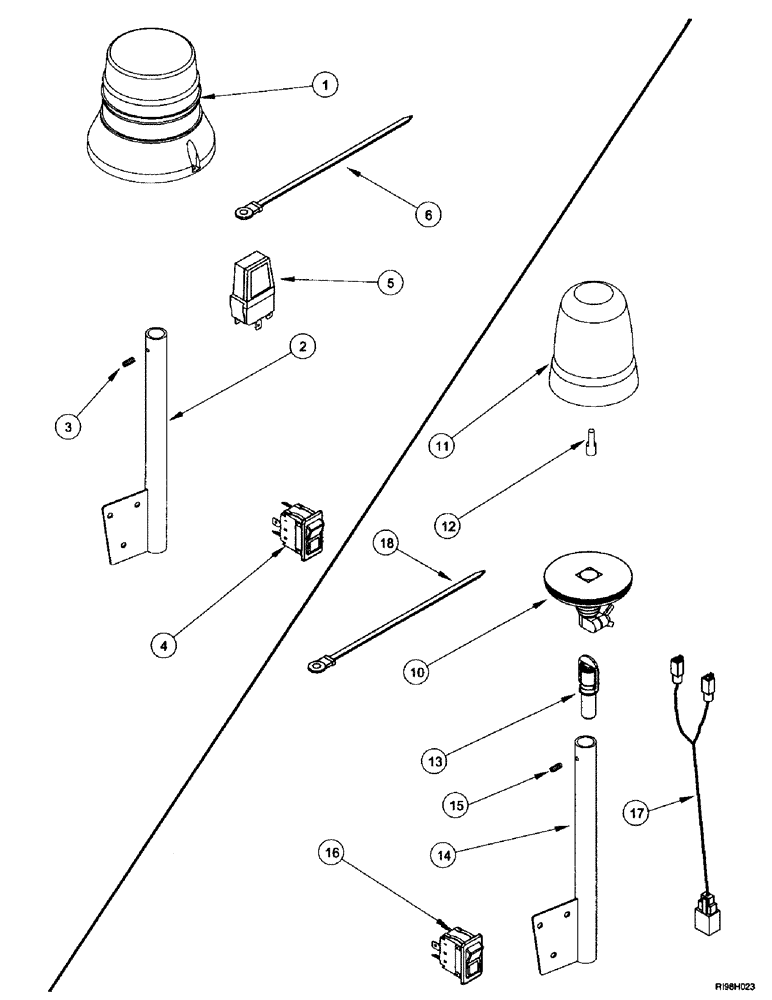

Схема запчастей Case IH MX180 - (4-086) - LAMP, STROBE AND BEACON, N.A. ONLY (04) - ELECTRICAL SYSTEMS
13
15
10
6
5
4
1
11
16
17
18
12
2
14
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

313164A1

KIT

attachment, strobe lamp, order components, consists of: Ref. 1 - 6

1шт.

1

279013A2

LAMP

Includes: Ref. 5

1шт.

2

300765A1

BRACKET

1шт.

3

878-1066

SET SCREW,Hex Skt, M6 x 6mm, Cup Pt

1шт.

4

229379A1

SWITCH

1шт.

5

323095A1

BULB

400-12V

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 inch

1шт.

313163A1

BEACON ROTATING

BEACON KIT attachment, beacon light, order components, consists of: Ref. 10 - 18, Europe only

1шт.

10

175048A1

BEACON

LAMP, Includes: Ref. 11 - 12

1шт.

11

192809A1

LENS

1шт.

12

3125705R1

BULB

12V, 55W

1шт.

13

244106A1

ELEC CONNECTOR

SUPPORT

1шт.

14

300765A1

BRACKET

1шт.

15

878-1066

SET SCREW,Hex Skt, M6 x 6mm, Cup Pt

1шт.

16

229379A1

SWITCH

1шт.

17

328501A1

HARNESS

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 inch

1шт.
