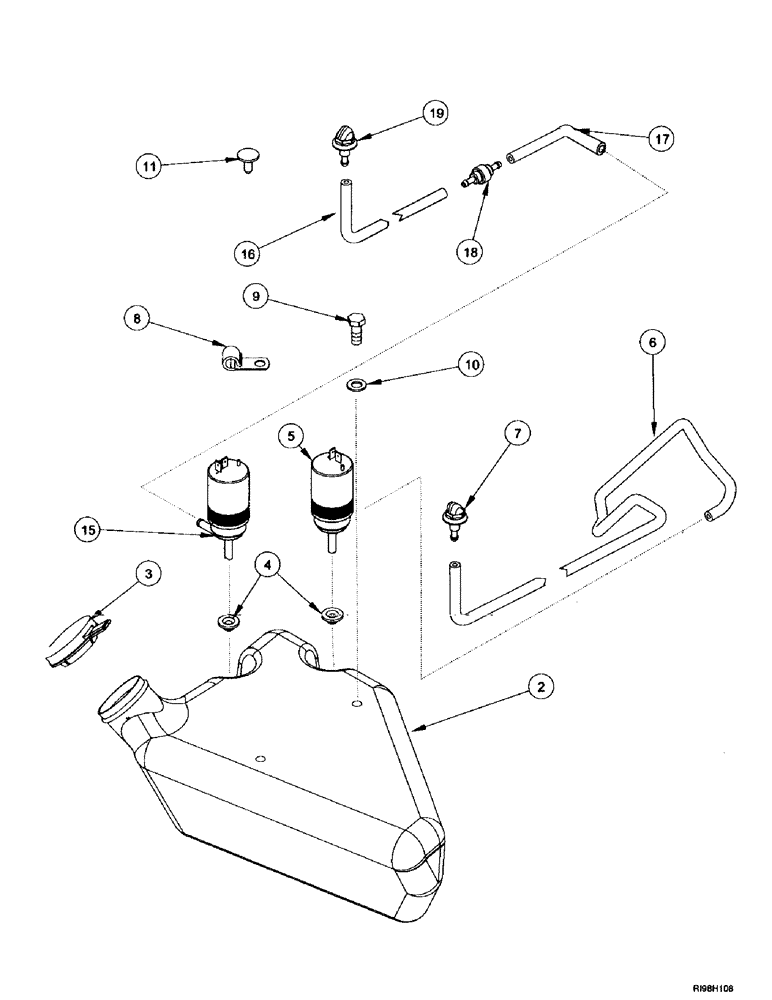

Запчасти Case IH MX180 (4-058) - WINDSHIELD WASHER, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

301523A2

RESERVOIR

TANK ASSY, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

TANK

1шт.

3

307130A1

COVER

CAP filler

1шт.

4

196830A1

GROMMET

2шт.

5

1964696C2

PUMP

Electric, Front

1шт.

6

1964828C1

PIPE

HOSE, 1145 mm (45-1/8 in.), cut from 1968141CX

1шт.

7

3229749R1

NOZZLE CAP

front

1шт.

8

516-2295

CLAMP,J, 7/16" Insul, 5/16" Bolt

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

196831A1

PLUG

1шт.

15

1964696C2

PUMP

Electric, Rear

1шт.

16

1968058C1

HOSE

3600 MM (142 in.), cut from 1968141CX

1шт.

17

233105A1

HOSE,3.56mm ID x 250mm L

250 mm (10 in.), cut from 1968141CX

1шт.

18

K307050

VALVE

check

1шт.

19

3229749R1

NOZZLE CAP

rear

1шт.
