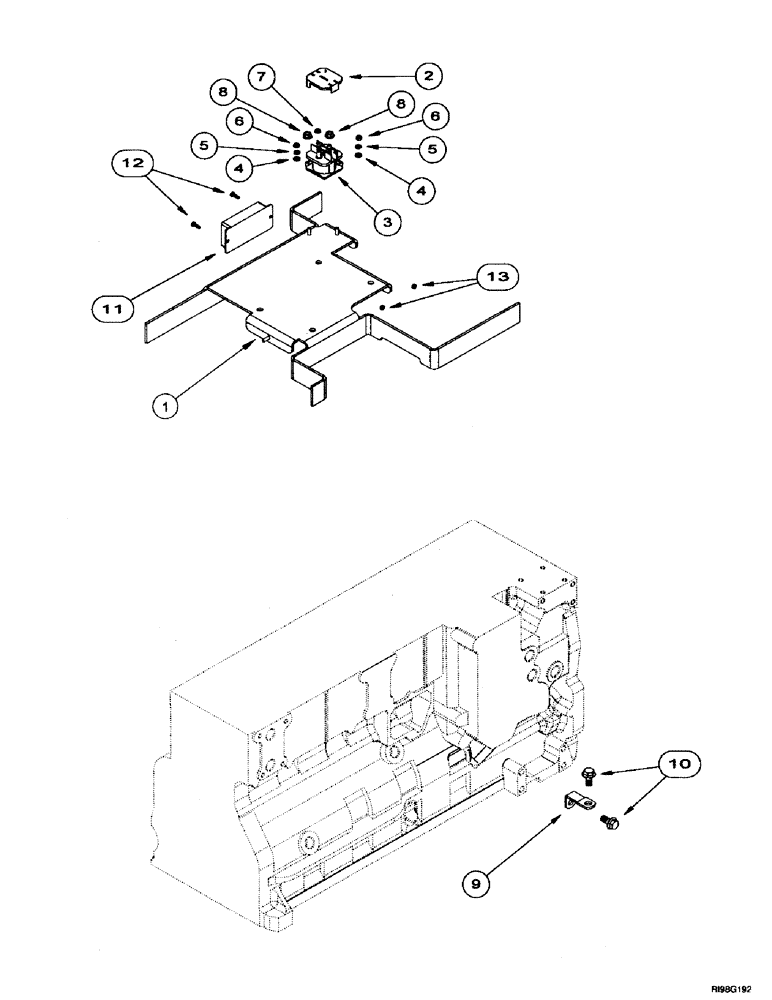

Запчасти Case IH MX180 (4-042) - SOLENOID, STARTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

SUPPORT, air cleaner assy, see Figure 9-026

1шт.

2

178148A1

COVER

1шт.

3

NSS

NOT SOLD SEPARAT

SWITCH, order 178149A1

1шт.

4

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

5

892-11006

LOCK WASHER,M6

2шт.

6

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

7

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

9

257176A1

NEG BATTERY CABLE

STRAP ground

1шт.

10

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

11

284638A2

ELEC CONNECTOR,4 Pin

TERMINATOR active

1шт.

12

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

2шт.

13

131-642

SPRING NUT,Tinn, U, #10

U, No. 10

2шт.
