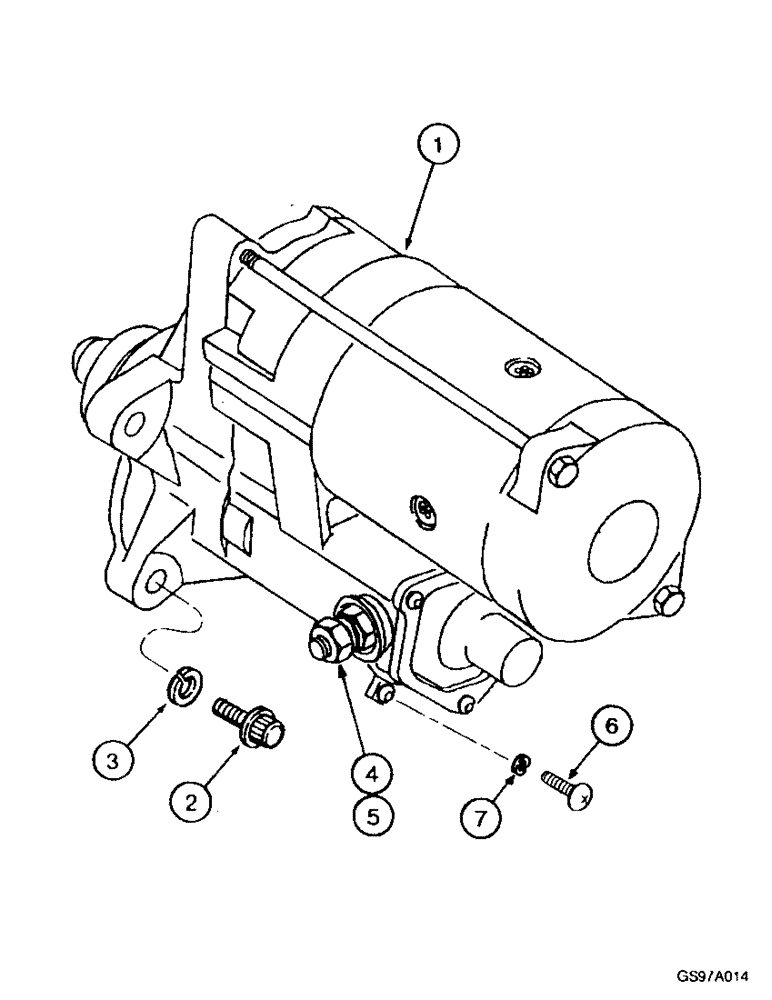

Запчасти Case IH MX180 (4-036) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

1

193432A1

STARTING MOTOR

ASSY, see Figure 4-038

1шт.

1

193432A2R

REMAN-STARTER,12V, 4.8kW

Remanufactured Starter 12 volt, 4.0 KW

1шт.

1

193432A2C

CORE-STARTER,12V, 4.8kW

Return Part Number Starter12 volt, 4.0KW

1шт.

2

868-12040

12 PT SCREW,M12 x 40mm, Cl 12.9

BOLT flange, M12 x 40

3шт.

3

892-11012

LOCK WASHER,M12

3шт.

4

829-1412

NUT,M12, Cl 10.9

1шт.

5

892-11012

LOCK WASHER,M12

1шт.

6

258820A1

SCREW

M5 x 8

1шт.

7

892-11005

LOCK WASHER,M5

1шт.
