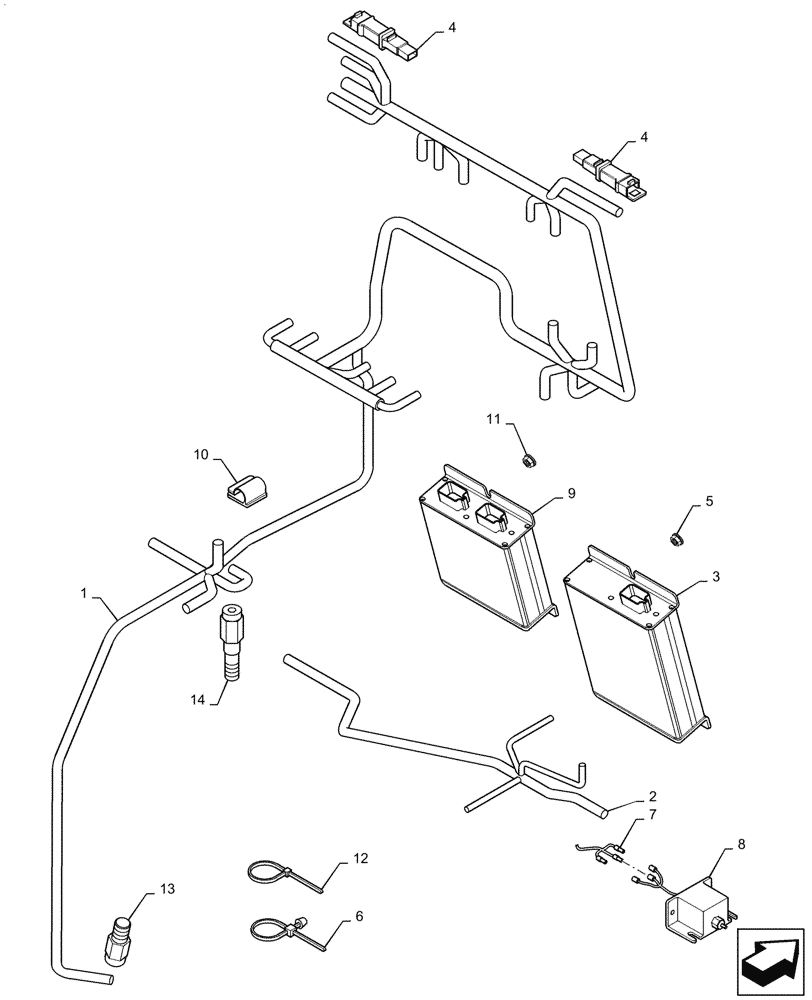

Запчасти Case IH MX180 (4-012) - HARNESS, AUXILIARY HYDRAULICS AND PTO (04) - ELECTRICAL SYSTEMS

1

300858A3

HARNESS

1шт.

2

297631A2

HARNESS

fender, N.A. only

2шт.

3

313861A2

CLUSTER, INSTR.

CLUSTER, INSTRUMENT PROCESSOR auxiliary hydraulics, without software

1шт.

3

313861A4R

REMAN-INSTR CLUSTER

REMAN-INSTRUMENT CLUSTER Flight Syst List - ECU - Aux Valve - For N.A. Only

1шт.

3

313861A4C

CORE-MONITOR

Flight Syst List - ECU - Aux Valve - For N.A. Only

1шт.

4

113699A1

RECTIFIER

In-line

2шт.

5

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

6

347610A1

ANCHOR

STRAP

2шт.

7

221546A1

HARNESS

360

1шт.

8

221545A1

KIT

KIT implement, status

1шт.

9

323761A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT PROCESSOR, P.T.O., MFD, differential lock, without software

1шт.

323761A1C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT - for N.A. Only

1шт.

10

336006A1

ANCHOR

CLIP

6шт.

11

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 inch

5шт.

13

A186004

SENSOR

dual speed P.T.O.

1шт.

14

A186005

SENSOR

P.T.O. shaft speed

1шт.

Refer to NTR SB 4006 99. P/N 352787A1 can be up to .026" longer than A186005, which allows deeper reach and better pickup.

1шт.
