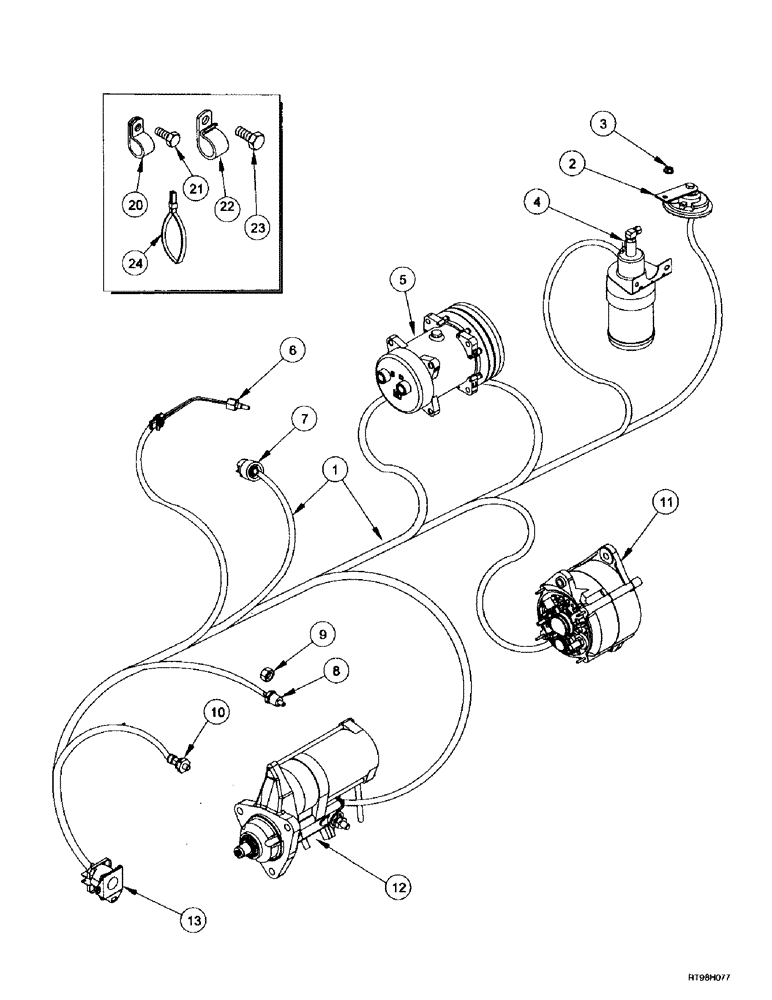

Запчасти Case IH MX180 (4-002) - HARNESS, ENGINE, MX180, MX200, MX220 (04) - ELECTRICAL SYSTEMS

1

301153A4

HARNESS

1шт.

2

237582A1

HORN

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

4

REF

INSTRUCTION

SOLENOID ASSY, ether start, see Figure 2-014

1шт.

5

REF

INSTRUCTION

COMPRESSOR ASSY, see Figure 9-084

1шт.

6

194346A1

SENSOR

air to air temperature

1шт.

7

292740A1

RESTRICTION SWITCH

air filter

1шт.

8

A176566

TRANSMITTER

SENDER temperatur, coolant

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

10

238082A1

SWITCH, PRESSURE

PRESSURE SWITCH SENDER oil

1шт.

11

REF

INSTRUCTION

ALTERNATOR ASSY, see Figures 4-032, 4-034

1шт.

12

REF

INSTRUCTION

STARTER ASSY, see Figure 4-038

1шт.

13

REF

INSTRUCTION

SOLENOID, see Figure 4-042

1шт.

20

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

21

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

22

229354A1

CLAMP,20.62mm ID, 12.7mm Bolt Hole, J Type

1шт.

23

615-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, 15 inch

7шт.
