Запчасти Case IH MX180 (3-056) - FUEL LINES, MX180, MX200, MX220 (03) - FUEL SYSTEM

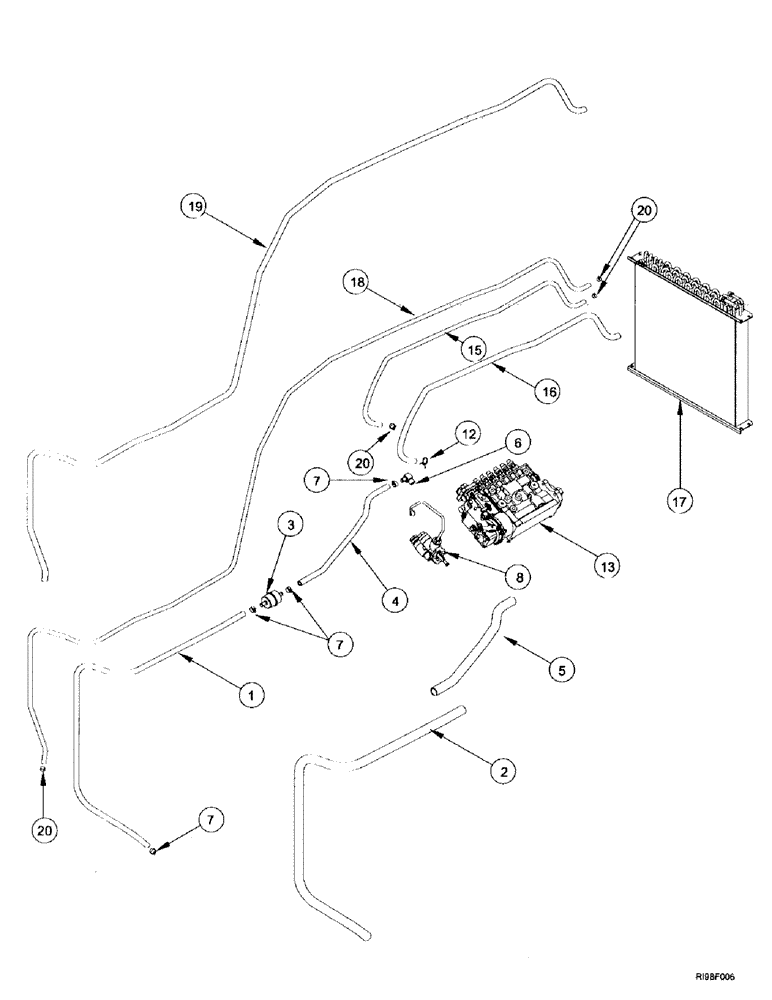

Схема запчастей Case IH MX180 - (3-056) - FUEL LINES, MX180, MX200, MX220 (03) - FUEL SYSTEM
20
8
6
12
18
17
20
5
1
7
2
20
7
15
13
19
7
4
3
16

Артикул

Название

Примечание

Количество

1

284735A2

HOSE,12.7mm ID x 1570mm L, SAE 30R7

1шт.

2

291260A2

CONDUIT

1500 mm (59 in.)

1шт.

3

194199A1

FUEL FILTER

1шт.

4

244413A2

HOSE

700 mm (28 in.), cut from 284735A2

1шт.

5

244867A2

HOSE

CONDUIT, 630 mm (25 in.), cut from 291260A2

1шт.

6

197095A1

ELBOW

1шт.

7

196252A1

CLAMP

4шт.

8

REF

INSTRUCTION

PUMP, see Figures 3-012, 3-014

1шт.

12

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

1шт.

13

REF

INSTRUCTION

PUMP injection, see Figures 3-020, 3-024

1шт.

15

292457A2

FUEL HOSE,9.53 mm ID x 1415.00 mm, SAE 30R7

Cut From 284736A2

1шт.

16

291507A2

CONDUIT

1345 mm (53 in.), cut from 291262A2

1шт.

17

REF

INSTRUCTION

COOLER, see Figure 9-086

1шт.

18

284736A2

HOSE,9.53 mm ID x 4000.0 mm , SAE 30R7

1шт.

19

291262A2

CONDUIT

3930 mm (155 in.)

1шт.

20

1348264C1

HOSE CLAMP

3/8 ID

4шт.

Выбрано товаров: 16
