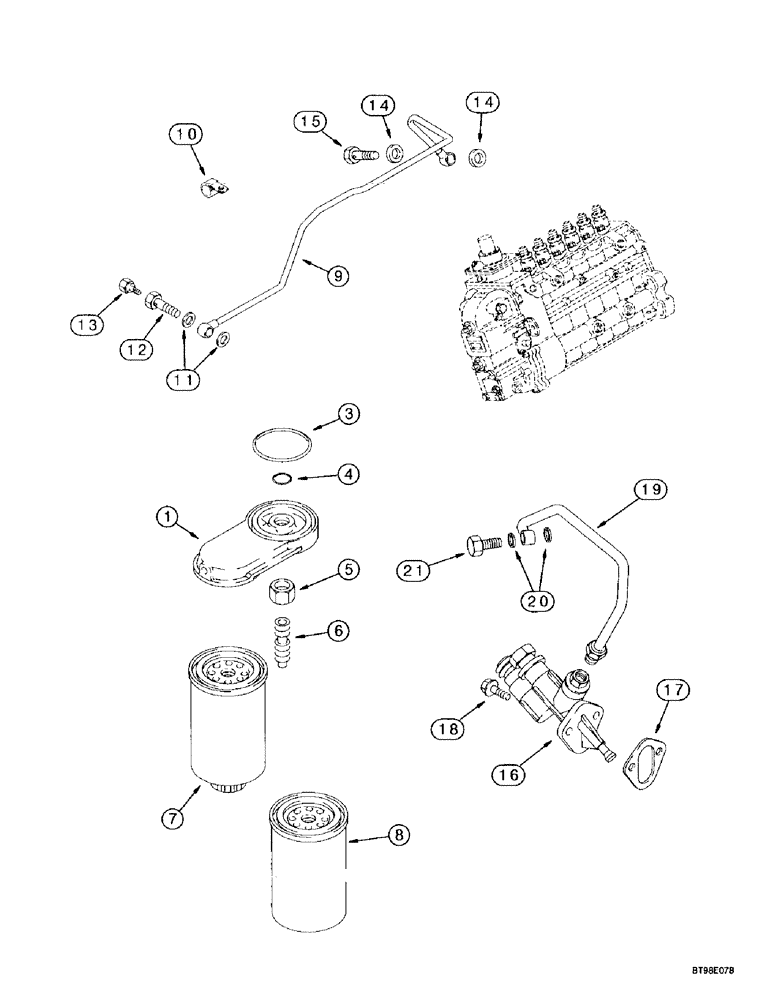

Запчасти Case IH MX180 (3-012) - FUEL FILTER, PUMP, TRANSFER, MX180, 6T-830 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J897331

SUPPORT

HEAD filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING 70 mm

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING 14 mm

1шт.

5

J903293

JAM NUT

M16

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

6a

A77470

SEPARATOR

KIT, Consists of Ref. 7, 8, Not Illustrated

1шт.

7

J925274

FILTER, FUEL

1шт.

8

J903640

FILTER, FUEL

1шт.

9

J918873

FUEL TUBE,8 mm OD x 531.9, 92.9 mm L

1шт.

10

J914711

CLIP

CLAMP

1шт.

11

J918191

PACKING RING

WASHER, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSY, consists of: Ref. 12, 13

1шт.

12

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER, 14 x 20 x 1 mm

2шт.

15

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

16

J933252

FEED PUMP

1шт.

17

J931059

GASKET

mounting, Replaces: J931348

1шт.

18

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

19

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

1шт.

20

J918191

PACKING RING

WASHER, 12 x 18 x 1 mm

2шт.

21

J916361

BANJO BOLT

M12 x 24

1шт.
