Запчасти Case IH MX180 (2-142) - GASKET KIT, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE, VALVE GRIND (02) - ENGINE

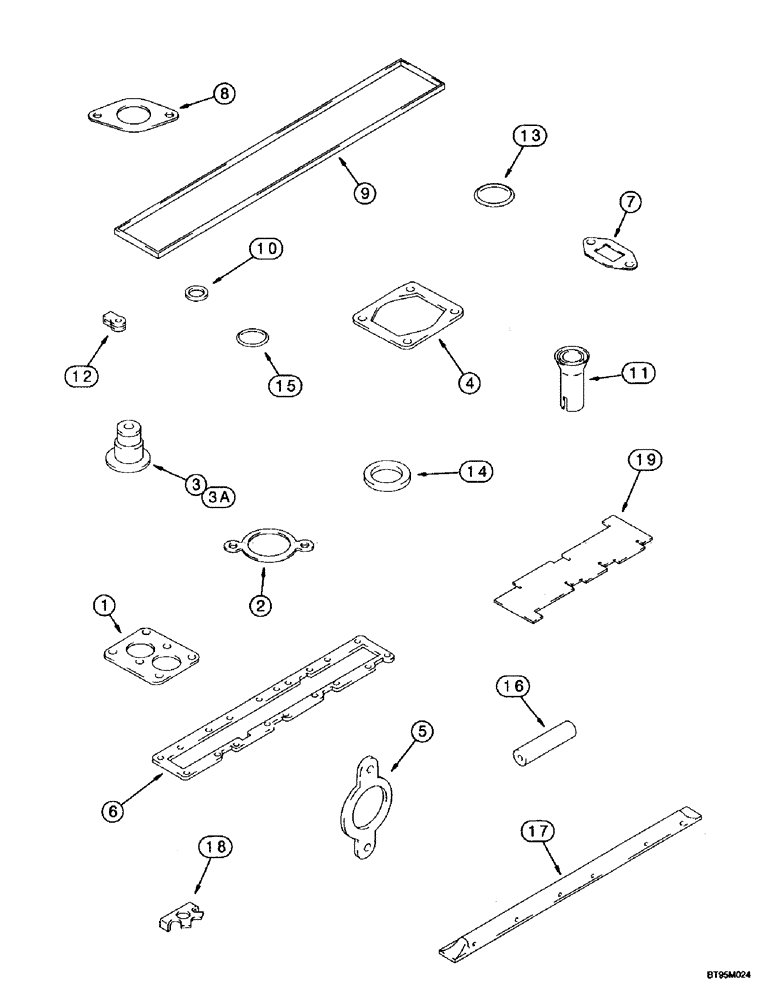

Схема запчастей Case IH MX180 - (2-142) - GASKET KIT, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE, VALVE GRIND (02) - ENGINE
3
4
15
9
1
7
12
16
8
13
11
5
19
2
17
3a
14
18
6
10

Артикул

Название

Примечание

Количество

A77842

GASKET KIT

consists of: Ref. 1 - 19

1шт.

1

J914310

GASKET,0.8mm Thk

housing, see Figure 2-082

1шт.

2

J918779

GASKET,1.19mm Thk

mounting, see Figure 2-082

1шт.

3

J915707

SEAL

see Figure 2-074

6шт.

3a

J927642

SEAL

if used

6шт.

4

J911941

GASKET

mounting, see Figure 2-036

1шт.

5

J929012

GASKET,0.5mm Thk

manifold, see Figures 2-030, 2-032

6шт.

6

J914311

MANIFOLD GASKET

manifold, see Figure 2-030, 2-032

1шт.

7

J931350

GASKET

mounting, see Figures 2-036, 2-038

1шт.

8

J942725

GASKET

mounting, see Figures 2-37, 2-39, Replaces: J819378

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

see Figure 2-068

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

see Figure 2-068

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE, see Figures 3-02, 3-04

6шт.

12

J903380

SEAL

see Figure 3-38

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

See Figure 2-69

1шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

SEAL, 2.5 mm, see Figure 3-038

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

See Figure 2-082

1шт.

16

J930827

HOSE,51.00 mm

See Figure 2-068

1шт.

17

J919677

TUBE

see Figure 2-074

1шт.

18

J914708

LOCKING PLATE

see Figures 2-030, 2-032

12шт.

19

J823921

GAUGE

1шт.

Выбрано товаров: 21
