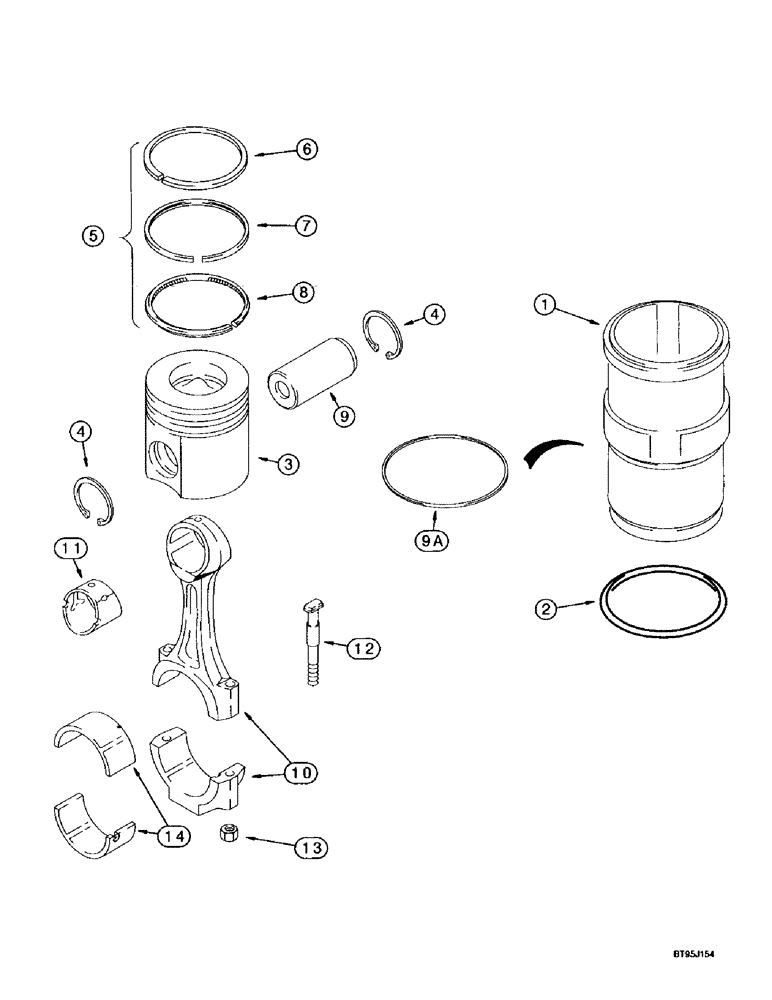

Запчасти Case IH MX180 (2-134) - PISTONS, CONNECTING RODS, MX180,MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

A77854

PACKAGE, REPAIR

KIT, piston, standard, consists of: J919937, Ref. 2 - 8, Serial Range: -45636465

6шт.

A77912

PACKAGE, REPAIR

KIT, piston, standard, consists of: J944344, Ref. 2 - 8, Start Serial: 45636466

6шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

use with A77854

1шт.

1

J944344

SLEEVE CYLINDER

use with A77912

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

A77853

PISTON & RINGS KIT

standard, consists of: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J802429

PISTON RINGS KIT

standard, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

RING top

1шт.

7

NSS

NOT SOLD SEPARAT

RING middle

1шт.

8

NSS

NOT SOLD SEPARAT

RING bottom

1шт.

9

J901597

PIN

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9a

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9a

J924449

SHIM,1.000mm Thk

(.040")

1шт.

J901383

CONNECTING ROD

ASSY, new, Includes: Ref. 10 - 13

6шт.

84487529R

REMAN-CONNECTING ROD

MX180, MX200, MX220 PRIOR TO P.I.N. JJA0105000 ALL(1/99-), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

JR901383

REMAN-CONNECTING ROD

ASSY, N.A. only, consists of: Ref. 10 - 13

1шт.

JC901383

CORE-ROD CONNECTING

CORE-CONNECTING ROD return number

1шт.

10

NSS

NOT SOLD SEPARAT

ROD

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

1шт.

12

J928870

ROD

2шт.

13

J901381

SPECIAL NUT

2шт.

14

A77563

BEARING SET

con. rod, standard, connecting

6шт.

14

A77564

BEARING SET

con. rod, undersize, 0.25 mm, connecting

6шт.

14

A77565

BEARING SET

con. rod, undersize, 0.50 mm, connecting

6шт.

14

A77566

BEARING SET

con. rod, undersize, 0.75 mm, connecting

6шт.

14

A77567

BEARING SET

con. rod, undersize, 1.00 mm, connecting

6шт.
