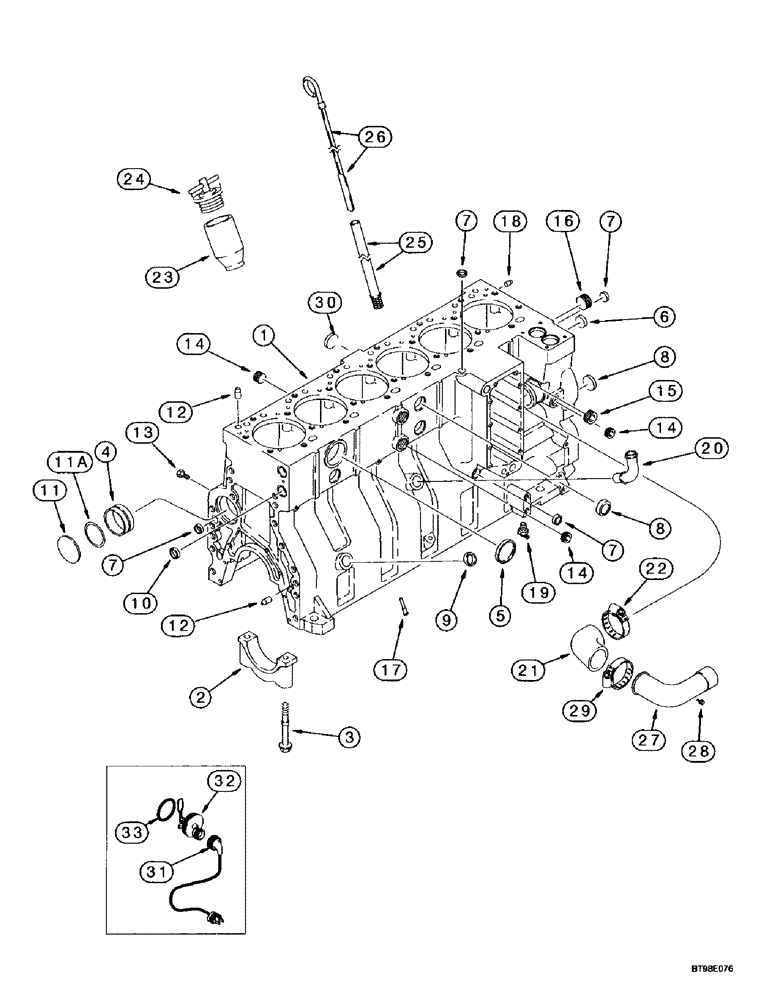

Запчасти Case IH MX180 (2-094) - CYLINDER BLOCK, MX180, 6T-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

198565A1

ENGINE ASSEMBLY

ENGINE ASSY complete, less: starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, order: 243307A1

1шт.

243307A1

BASIC ENGINE

service

1шт.

Less: starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler

1шт.

243307A1R

REMAN-BASIC ENGINE

Less: starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler

1шт.

243307A1C

CORE-BASIC ENGINE

Return Part Number

1шт.

J934600

SKELETON ENGINE

BLOCK ASSY, short, with: stripped block, pistons, connecting rods and bearings, crankshaft and bearings, consists of: Ref. 1 - 8

1шт.

JR934600

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly, short, remanufactured

1шт.

JC934600

CORE-ENGINE

Return Part Number

1шт.

87448701

REMAN-SHORT ENGINE

Reman For New PN J934600

1шт.

6-830-SHBC

CORE

Return Part Number Short Block

1шт.

JR925187

SKELETON ENGINE

Reman For New PN J934600

1шт.

JC925187

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J934900

SHORT ENGINE

BLOCK ASSY, stripped, also order A77716, consists of: Ref. 2 - 8

1шт.

2

J917313

BEARING CAP

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

14шт.

4

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

see Figure 2-088, Replaces: J943199

7шт.

5

A77782

PLUG

expansion, 58 mm

1шт.

6

A77586

PLUG

expansion, 28.9 mm

1шт.

7

A77506

PLUG

expansion, 21 mm

4шт.

8

J905401

PLUG

expansion, 35 mm

4шт.

A77716

BLOCK

KIT, consists of: Ref. 9 - 11, 12 - 20

1шт.

9

J920706

PLUG

expansion, 22 mm, not used

1шт.

10

J920443

PLUG

expansion, 30 mm, not used

2шт.

11

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

1шт.

11a

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

4шт.

13

J906619

PLUG,1/8" - 27

hex, 1/8 PT

6шт.

14

A77429

PLUG

1/2 PT

4шт.

15

A77505

PLUG

3/4 PT

2шт.

16

A77533

PLUG

1 PT

1шт.

17

J928031

NOZZLE,8.5mm OD x 30mm L

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

19

217-103

COCK, DRAIN

VALVE, 1/4 PT

1шт.

20

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE, not used

1шт.

21

J920762

ELBOW

HOSE, 79 mm (3-1/8 in.)

1шт.

22

J918521

HOSE CLAMP,59mm - 83mm

1-13/16 - 2-3/4

1шт.

23

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

1шт.

24

J934480

FILLER CAP

1шт.

25

A77645

TUBE

1шт.

26

J934481

DIPSTICK

1шт.

J900955

PLUG

10 m

1шт.

27

J907208

TUBE,50.8 mm DIA x 295.3 mm L

1шт.

28

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

29

J922847

CLAMP

1шт.

30

J905401

PLUG

expansion, 35 mm

1шт.

196804A1

KIT

coolant heater, 120V, consists of: Ref. 31 - 33, engine block

1шт.

31

196466A1

ELECTRIC CABLE

1829 mm (72 in.), 120V

1шт.

32

NSS

NOT SOLD SEPARAT

ELEMENT, 120V

1шт.

33

J910517

O-RING

120V

1шт.

A77665

SET OF PARTS

KIT, coolant heater, 240V, consists of: Ref. 31 - 33, engine block

1шт.

31

NSS

NOT SOLD SEPARAT

CABLE, 240V

1шт.

32

NSS

NOT SOLD SEPARAT

ELEMENT, 240V

1шт.

33

J910517

O-RING

240V

1шт.

A77885

PACKAGE, REPAIR

KIT engine block, Includes: Ref. 34 - 41, not illustrated, Serial Range: -45636465

1шт.

34

A77854

PACKAGE, REPAIR

KIT piston, see Figure 2-134

6шт.

35

A77563

BEARING SET

con. rod, see Figure 2-134

6шт.

36

J901597

PIN

see Figure 2-134

6шт.

37

A77711

BEARING LINER

crankshaft, see Figure 2-126

6шт.

38

A77843

BEARING LINER

crankshaft, see Figure 2-126

1шт.

39

A77872

GASKET KIT

PACKAGE, order A77872

1шт.

40

J931019

GASKET

cylinder head, see Figures 2-068, 2-074

1шт.

41

A77679

GASKET KIT

PACKAGE, see Figure 2-064

1шт.

A77913

PACKAGE, REPAIR

KIT engine block, Includes: Ref. 42 - 49, not illustrated, Start Serial: 45636466

1шт.

42

A77912

PACKAGE, REPAIR

KIT piston, see Figure 2-134

6шт.

43

A77563

BEARING SET

con. rod, see Figure 2-134

6шт.

44

J901597

PIN

see Figure 2-134

6шт.

45

A77711

BEARING LINER

crankshaft, see Figure 2-126

6шт.

46

A77843

BEARING LINER

crankshaft, see Figure 2-126

1шт.

47

A77872

GASKET KIT

PACKAGE, order A77872

1шт.

48

J931019

GASKET

cylinder head, see Figures 2-068, 2-074

1шт.

49

A77679

GASKET KIT

PACKAGE, see Figure 2-064

1шт.
