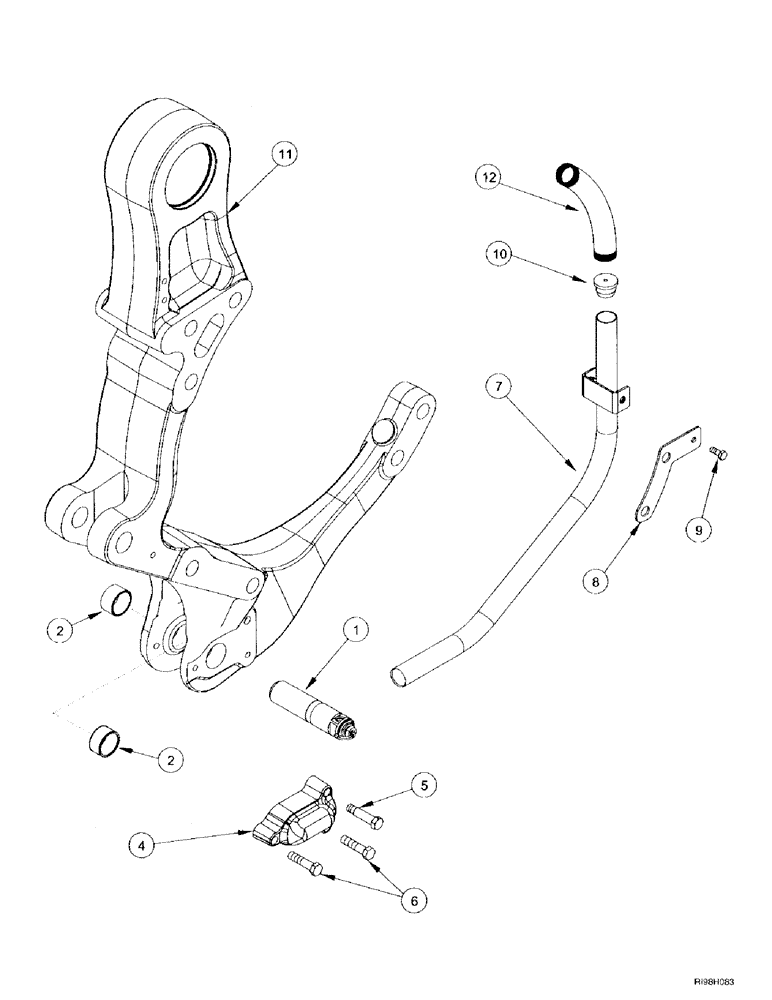

Запчасти Case IH MX180 (9-132) - DRAFT CONTROL PINS, HITCH (09) - CHASSIS/ATTACHMENTS

322022A1

KIT

repair, Includes: Ref. 1 - 2

2шт.

1

283771A2

PIN

draft control

1шт.

2

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

2шт.

3

303550A1

BUSHING,37.15mm ID x 57.15mm OD x 26mm L

1шт.

4

291895A1

COVER

2шт.

5

225643A1

BOLT,Shldr, Hex, M12 x 1.75 x 56mm

special

2шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

7

236897A2

TUBE

TUBE

2шт.

8

229904A2

SUPPORT

BRACKET

2шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

10

1960765C2

GROMMET

2шт.

11

REF

INSTRUCTION

BRACKET, see Figure 9-110

2шт.

12

326827A1

SLEEVE

CONDUIT

2шт.
