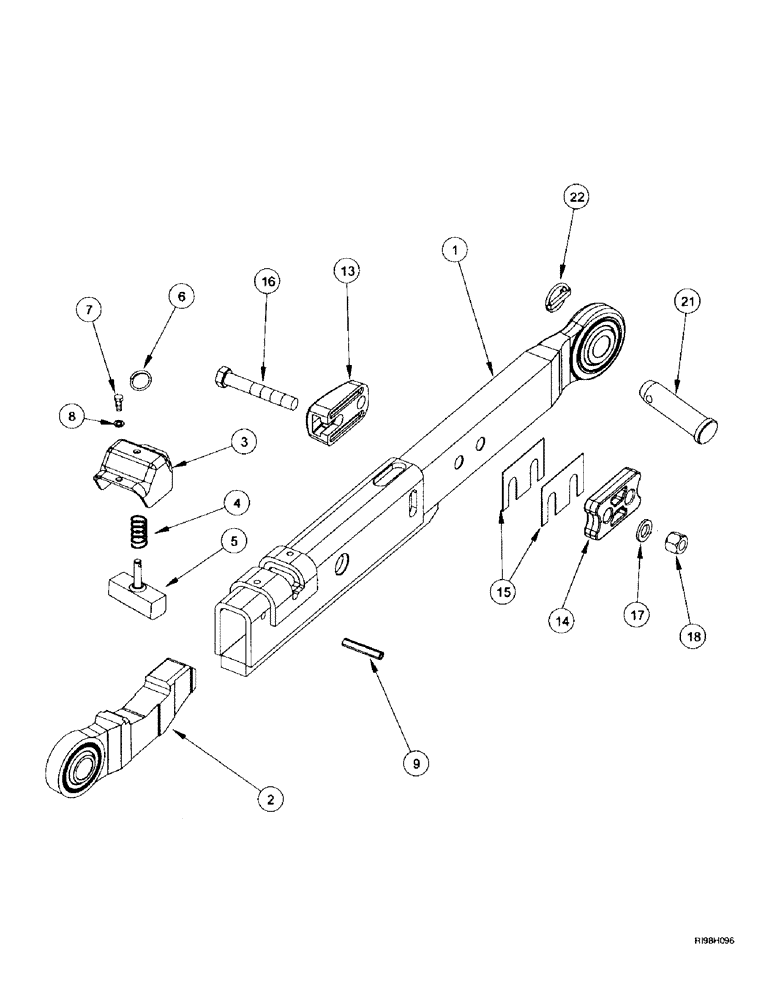

Запчасти Case IH MX180 (9-122) - LOWER LIFT LINKS, HITCH, N.A. ONLY, MX180 (09) - CHASSIS/ATTACHMENTS

234460A2

LOWER LINK

ASSY, right-hand, consists of: Ref. 1 - 9

1шт.

234459A2

LOWER LINK

ASSY, left-hand, consists of: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

LINK, right-hand shown

1шт.

1

NSS

NOT SOLD SEPARAT

LINK, left-hand

1шт.

2

283522A1

DRAG LINK

right-hand shown

1шт.

2

283521A1

DRAG LINK

left-hand

1шт.

3

258770A1

COVER

2шт.

4

113774A1

SPRING

2шт.

5

258771A1

PIN,10mm OD x 77mm L

2шт.

6

1965556C1

RING

2шт.

7

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

838-31270

PIN,M12 x 70, Coiled

roll, 12 x 70 mm

2шт.

13

301248A2

BUMPER

2шт.

14

301927A1

SPACER

2шт.

15

189946A1

SHIM,76mm OD x 1.03mm Thk

4шт.

16

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

4шт.

17

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

18

832-10420

NUT,M20 x 2.5, Cl 8

4шт.

21

A75028

PIN,36.45mm OD x 138mm L

without draft control

2шт.

22

A64204

PIN

linch

2шт.
