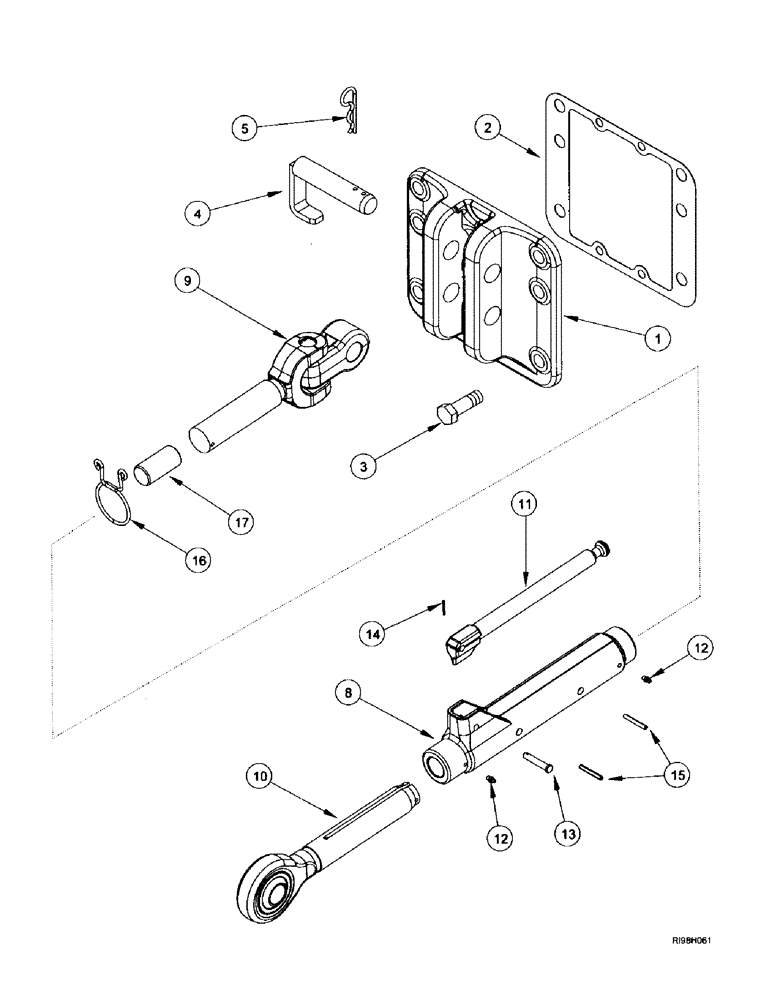

Запчасти Case IH MX180 (9-114) - TOP LINK, HITCH, MX180, N.A. ONLY (09) - CHASSIS/ATTACHMENTS

1

220126A2

HITCH BRACKET

SUPPORT

1шт.

2

231991A1

GASKET

cover

1шт.

3

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

4

321528A2

PIN

1шт.

5

486830R1

COTTER PIN

CLIP spring

1шт.

284335A2

UPPER LINK

ASSY, consists of: Ref. 8 - 17

1шт.

8

1954223C3

ARM

TURNBUCKLE

1шт.

9

319585A1

CLEVIS

YOKE, right-hand threads

1шт.

10

1282082C2

LIFT LINK END ASSY,1-3/4" - 5, LH Threads

SCREW, left-hand threads

1шт.

11

1331863C2

HANDLE

1шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

13

427-6200

CLEVIS PIN,3/8" x 2", HDN

1шт.

14

432-612

COTTER PIN,3/32" x 3/4"

1шт.

15

838-3645

PIN,M6 x 45, Coiled

6 x 45 mm

2шт.

16

315912A1

SPRING

1шт.

17

315541A1

SPACER

1шт.
