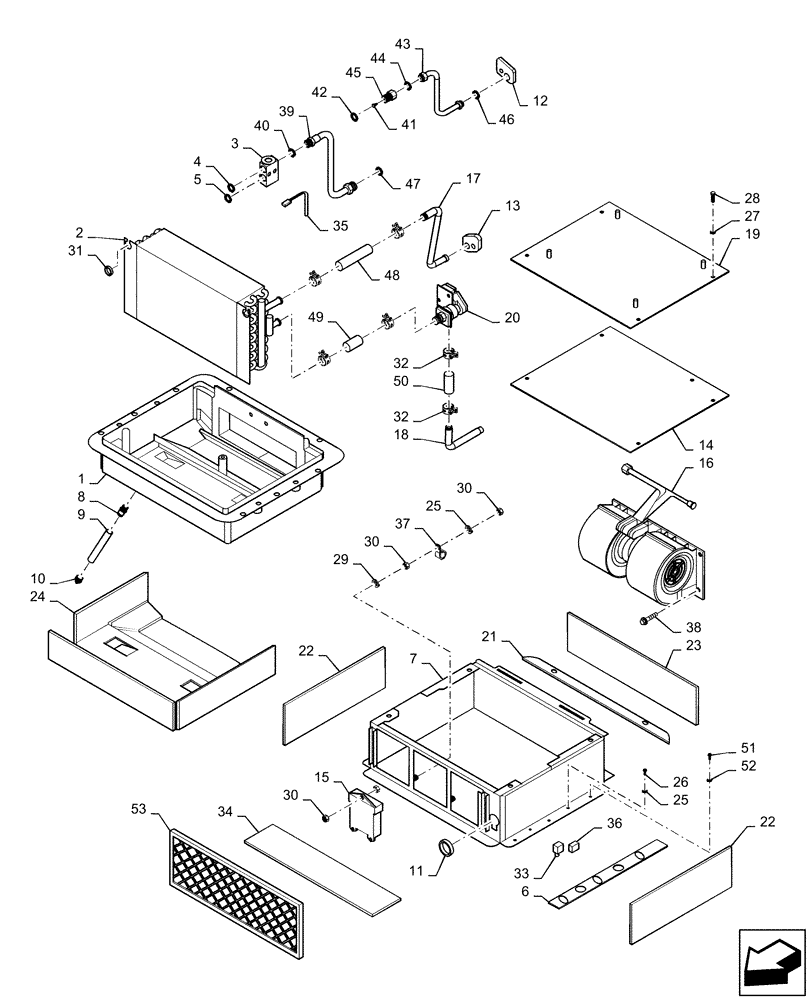

Запчасти Case IH MX180 (9-090) - AIR CONDITIONING, CLIMATE CONTROL UNIT, WITHOUT AUTO TEMP CONTROL (09) - CHASSIS/ATTACHMENTS

1

322996A1

BOX

1шт.

2

322847A1

CONDENSER

CORE, Evaporator and Heater, Incl 3 - 5

1шт.

3

1990756C2

VALVE

Expansion

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

5

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

6

322994A1

GASKET,3mm Thk

Mounting

4шт.

7

322831A1

CASE

BOX

1шт.

8

1250522C3

FITTING

2шт.

9

1977334C1

HOSE

610 mm (24-1/8 in.), Cut From 198091C1

2шт.

10

109239C2

CHECK VALVE

2шт.

11

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

12

322989A1

GROMMET

1шт.

13

322990A1

GROMMET

1шт.

14

322992A1

GASKET,3mm Thk

Cover

1шт.

15

323018A1

MODULE

1шт.

16

323611A1

BLOWER

1шт.

Resistor for Blower is P/N 359504A1. dws 5/00

1шт.

16

84222526R

REMAN-BLOWER

MX180, MX200, MX220, MX240, MX270, All CASE IH MAGNUM TRACTOR (PRIOR TO P.I.N. JJA0105000) (1/99-), Reman for New PN 323611A1

1шт.

16

84222526C

CORE-BLOWER

Return Number

1шт.

17

322985A1

HEATER TUBE

Outlet

1шт.

18

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

Inlet

1шт.

19

323625A1

TOP COVER

1шт.

20

322988A1

VALVE, CONTROL

Regulator

1шт.

21

322995A1

GASKET,3mm Thk

Mounting

4шт.

22

322993A1

GASKET

Housing

2шт.

23

322991A1

GASKET

Housing

1шт.

24

324484A1

INSULATOR

INSULATION

1шт.

25

892-11006

LOCK WASHER,M6

5шт.

26

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

27

892-11008

LOCK WASHER,8mm ID

4шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

29

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

30

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

31

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

32

1954736C1

HOSE CLAMP,#24

6шт.

33

105849A1

RELAY

20 amp

1шт.

34

327306A1

GASKET

Mounting

1шт.

35

323016A1

SENSOR

PROBE

1шт.

36

327308A1

HARNESS

1шт.

37

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

38

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

39

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

TUBE ASSY, Incl 40 - 42

1шт.

40

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

41

1250594C2

CORE

1шт.

42

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

43

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

TUBE ASSY, Incl 44

1шт.

44

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

45

284272A2

PRESSURE SWITCH

Low

1шт.

46

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

47

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

48

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Cut From 97252CX

1шт.

49

324022A1

HEATER HOSE,15.50 mm ID x 54.00 mm

Cut From 97252CX

1шт.

50

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

Cut From 97252CX

1шт.

51

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

52

892-11008

LOCK WASHER,8mm ID

8шт.

53

87409377

FILTER

Recirculated Air

1шт.
