(2-030) - MANIFOLDS, MX180, 6T-830 EMISSIONS CERTIFIED ENGINE, EXHAUST

Запчасти Case IH MX180 (2-030) - MANIFOLDS, MX180, 6T-830 EMISSIONS CERTIFIED ENGINE, EXHAUST (02) - ENGINE

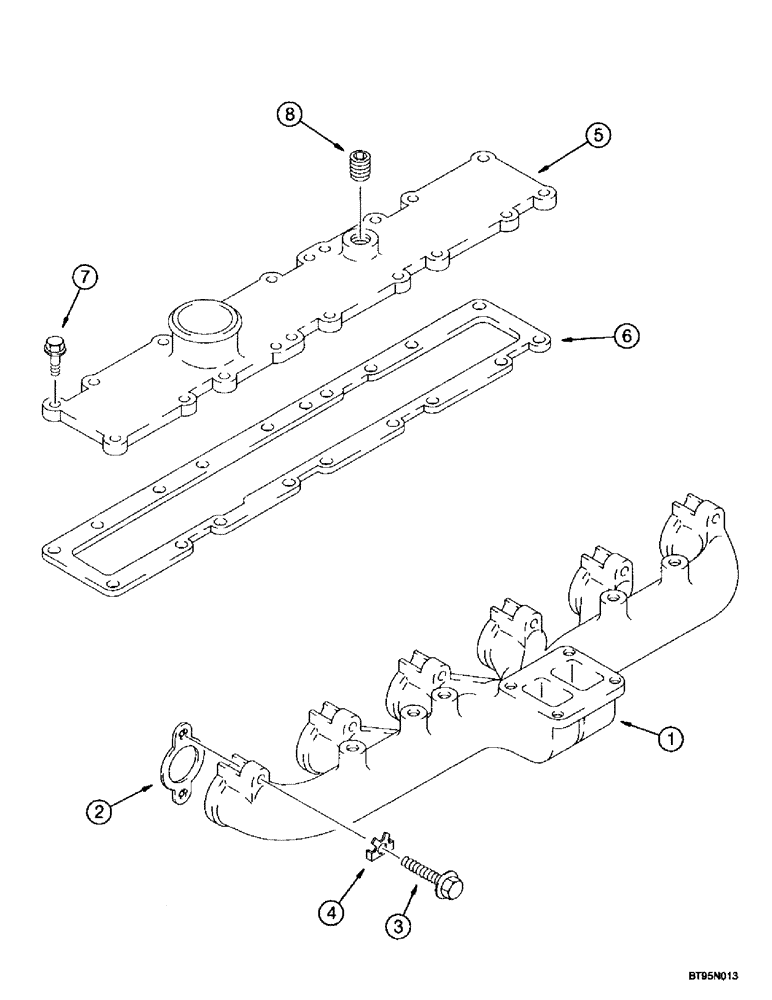

Схема запчастей Case IH MX180 - (2-030) - MANIFOLDS, MX180, 6T-830 EMISSIONS CERTIFIED ENGINE, EXHAUST (02) - ENGINE
3
2
5
8
6
4
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J932183

EXHAUST MANIFOLD

1шт.

2

J929012

GASKET,0.5mm Thk

manifold

6шт.

3

J929537

BOLT

10 x 70 mm

12шт.

4

J914708

LOCKING PLATE

12шт.

5

J922648

COVER ASSY

intake

1шт.

6

J914311

MANIFOLD GASKET

manifold, intake

1шт.

7

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

Intake

18шт.

8

A77429

PLUG

1/2 PT, intake

1шт.
