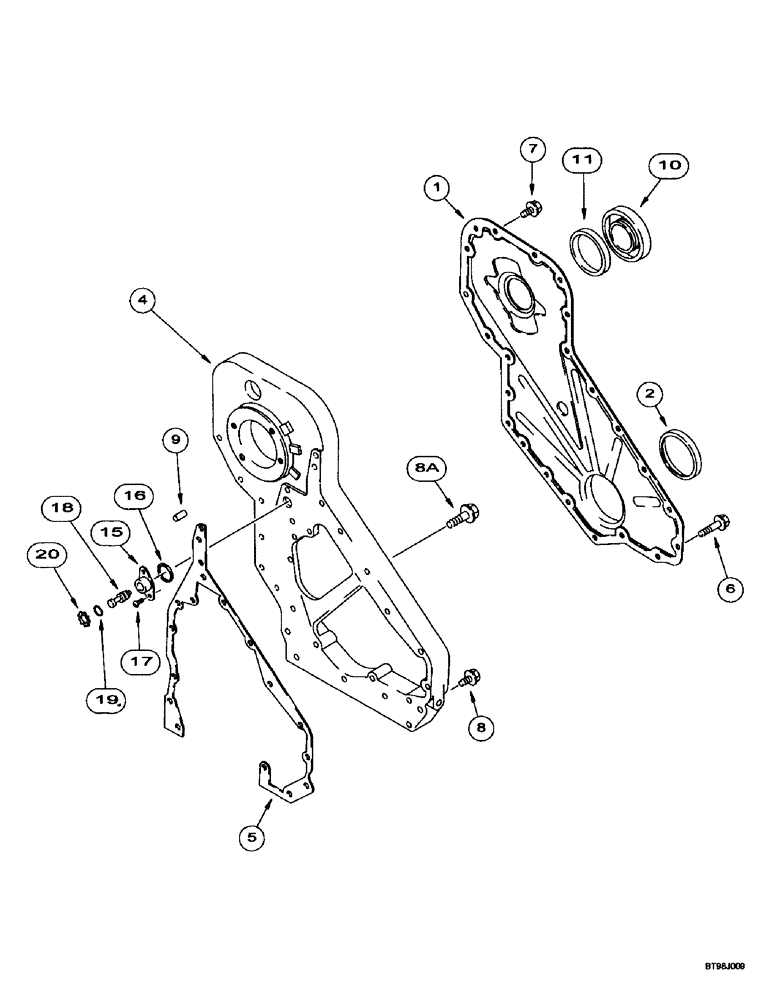

Запчасти Case IH MX180 (2-026) - FRONT GEAR COVER, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J929446

COVER ASSY

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, order: A77790, J353978, see Figure 2-126

1шт.

3

J823494

SEALANT

3 oz., not illustrated

1шт.

4

J929419

MOTOR HOUSING

MX180

1шт.

4

J929420

TRANSMISSION HOUSING

MX200, MX220

1шт.

5

J929253

GASKET

housing

1шт.

6

J926863

FLANGE BOLT

BOLT flange, M8 x 50

6шт.

7

J924962

FLANGE BOLT

flange, M8 x 16

17шт.

8

J926846

FLANGE BOLT

BOLT flange, M8 x 20

5шт.

8a

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

4шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

10

J903463

PLUG,M63 x 5

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

15

J919683

HOUSING

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

1шт.

19

J913994

O-RING

1шт.

20

100-2587

SNAP RING,0.875", Int, #87

1шт.
