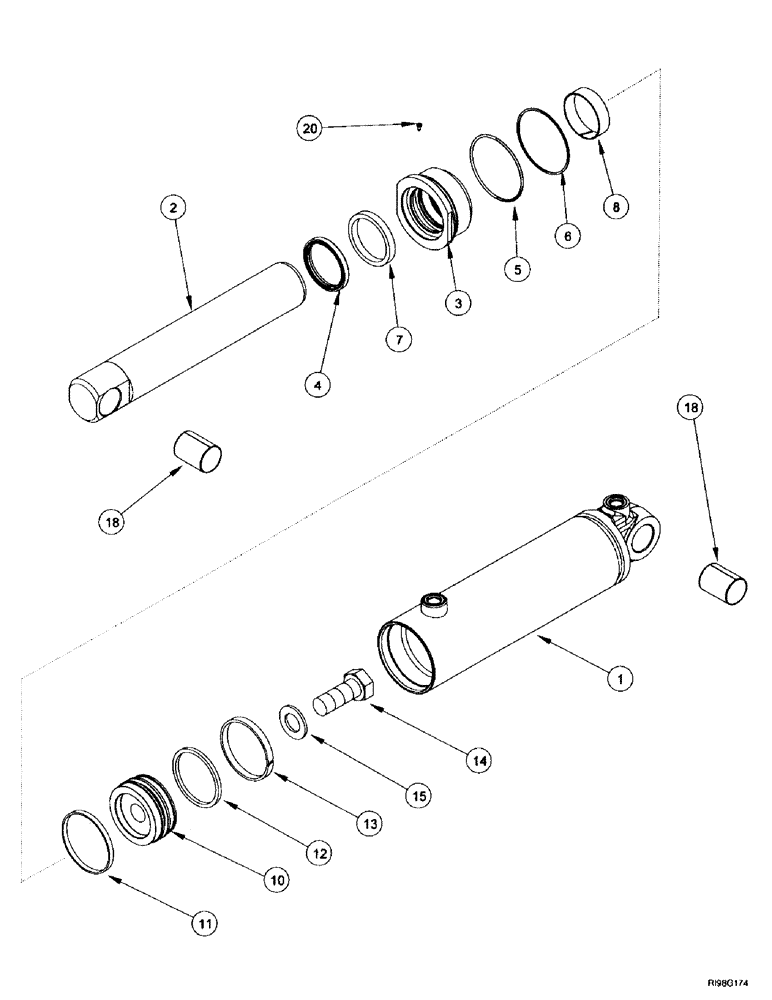

Запчасти Case IH MX180 (8-060) - CYLINDER ASSEMBLY, HITCH (08) - HYDRAULICS

305002A1

CYLINDER ASSY.

89 ID x 260 mm strk, part number stamped on cylinder, consists of: Ref. 1 - 18

1шт.

1

305003A1

TUBE,88.77 mm ID, 414.1 mm Length

TUBE

1шт.

2

303880A1

PISTON ROD

1шт.

3

305008A1

CYLINDER END CAP

GLAND

1шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

5

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

6

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

1шт.

7

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

1шт.

8

258960A1

BEARING,63.5mm ID x 66.57mm OD x 18.8mm L

gland

1шт.

10

305010A1

JACK PISTON

1шт.

11

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

The dealers can replace the seal and O-ring with a chem cast seal to prevent cutting/tearing the seal. This part number is 190332A1. MB TSG 10/05/99

1шт.

Per service bulletin NTR SB MG 8000 00, a seal kit, P/N 378922A1, is available. One of the components in this kit is the chem cast seal, P/N 190332A1. RCJ-TSG 8/3/00

1шт.

12

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

The dealers can replace the seal and O-ring with a chem cast seal to prevent cutting/tearing the seal. This part number is 190332A1. MB TSG 10/05/99

1шт.

13

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

14

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

1шт.

15

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

17

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

18

237443A1

BUSHING,34.96mm ID x 38.9mm OD x 50mm L

1шт.

305012A1

SEAL KIT

PACKAGE seals, Includes: Ref. 4, 5, 6, 7, 8, 11, 12, 13

1шт.
