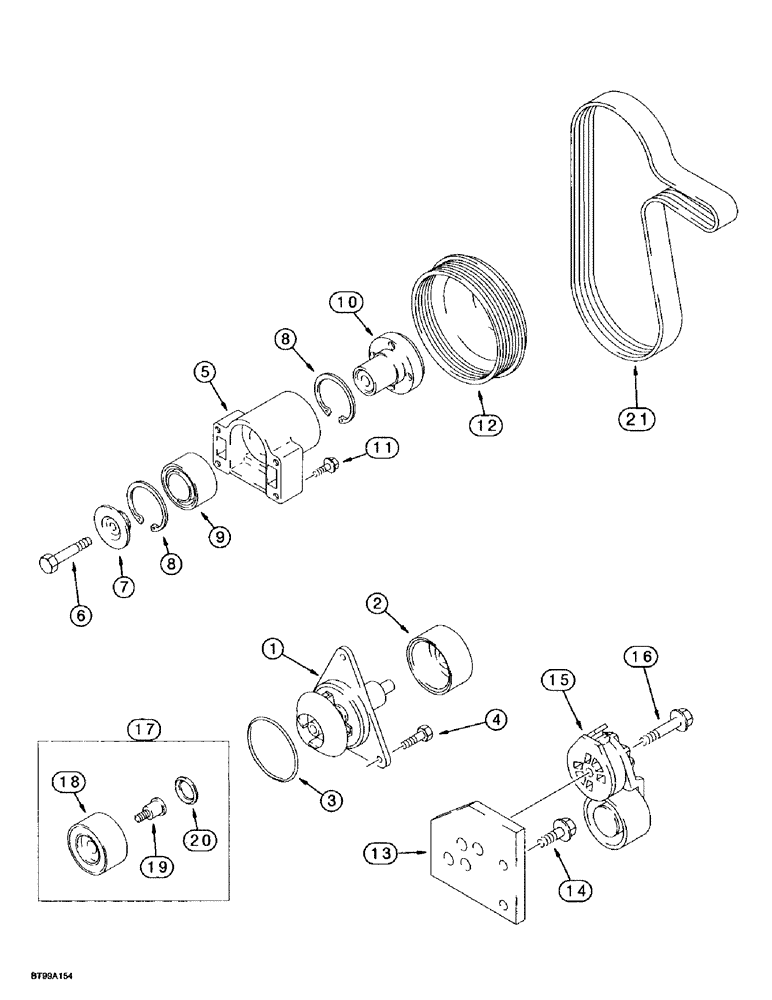

Запчасти Case IH MX180 (2-022) - WATER PUMP SYSTEM, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J802975

PUMP, WATER

KIT, consists of: Ref. 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

MX180, MX200, MX220, All 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE (PRIOR TO P.I.N. JJA0105000) (1/99-), Reman for New P/N J802975

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-Ring

1шт.

4

J934054

FLANGE BOLT

Flange, M8 x 28

3шт.

5

J929458

SUPPORT

ASSY, Includes: Ref. 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

BOLT, M10 x 70

1шт.

7

J923044

RETAINER

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

4шт.

12

J926855

PULLEY,187.23mm OD

1шт.

13

J925211

BRACKET

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

15

J934817

BELT TENSIONER

1шт.

16

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT flange, M10 x 75

1шт.

17

A77817

KIT

KIT tensioner, pulley, consists of: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL

1шт.

21

243372A1

BELT,1622.00 mm L, 8 Ribs

1шт.
