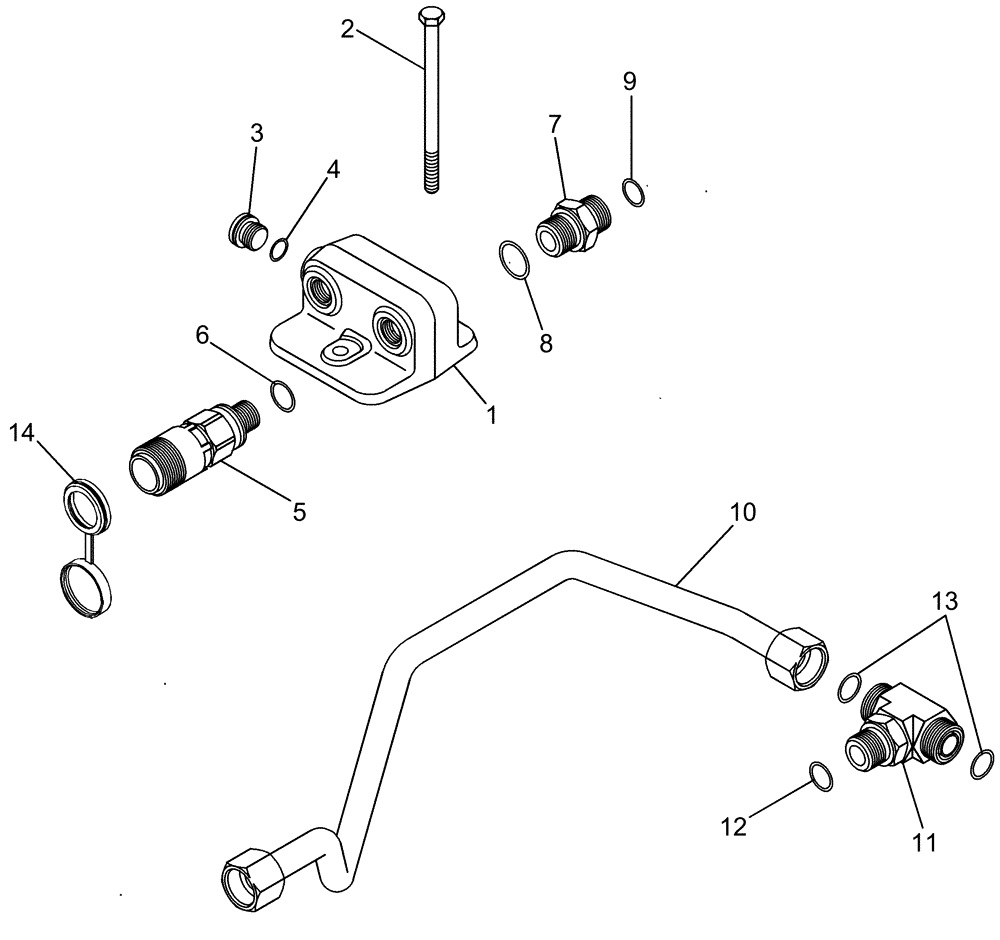

Запчасти Case IH MX180 (8-040) - HYDRAULIC SYSTEM, MOTOR RETURN (08) - HYDRAULICS

315715A

ATTACHMENT

KIT, order from machinery price list, consists of: Ref. 1 - 14

1шт.

1

298283A1

SUPPORT

MOUNT

1шт.

2

814-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8

BOLT, M10 x 150

2шт.

3

221578A1

PLUG,M18 x 1.5 ORB

Includes Ref. 4

1шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

5

195315A2

COUPLING, BREAK AWAY

hydraulic, Includes: Ref. 6

2шт.

6

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

7

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Ref. 8, 9

1шт.

8

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

298284A1

TUBE

TUBE

1шт.

11

700-424

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1-3/16 fc sl x 27 Or, Includes: Ref. 12, 13

1шт.

12

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

14

1954146C1

CAP

dust

2шт.
