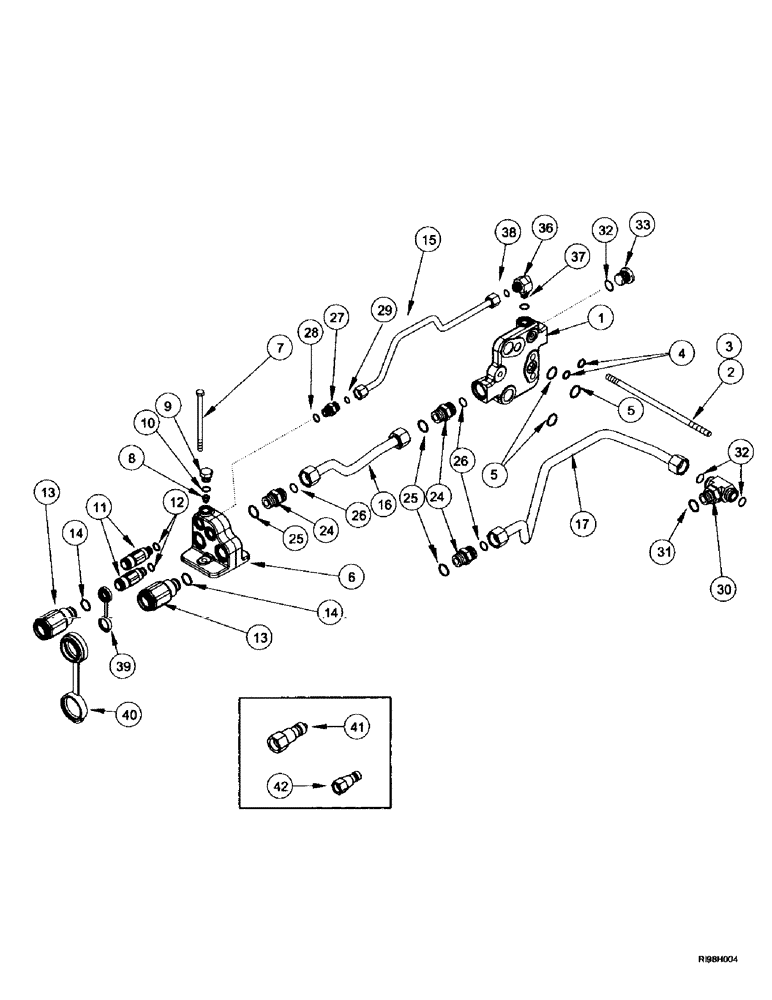

Запчасти Case IH MX180 (8-036) - HYDRAULIC SYSTEM, POWER BEYOND (08) - HYDRAULICS

315716A

ATTACHMENT

KIT, order from machinery price list, consists of: Ref. 1 - 40

1шт.

1

304050A1

COVER

1шт.

2

1986938C1

STUD

4 valve, M12 x 312

2шт.

2

304051A1

TRUSS ROD

STUD, 5 valve, M12 x 350

2шт.

3

304172A1

TRUSS ROD

STUD, 5 valve, M10 x 340

1шт.

4

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

7/8 ID x 1/8

2шт.

5

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3шт.

6

295036A1

SUPPORT

MOUNT

1шт.

7

814-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8

BOLT, M10 x 150

2шт.

8

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

9

220066A1

PLUG,M18 x 1.5, ORB

Includes Ref. 10

1шт.

10

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

294603A1

BODY

COUPLER hydraulic, 1/4 in., Includes: Ref. 12

2шт.

Per TSG comments in Support Pro, the mating connector for this is 347756A1.

1шт.

12

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

13

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

COUPLER hydraulic, 3/4 in., Includes: Ref. 14

2шт.

14

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

15

298286A2

TUBE

TUBE

1шт.

16

298285A2

TUBE

TUBE

1шт.

17

298284A1

TUBE

TUBE

1шт.

24

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Ref. 25, 26

3шт.

25

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

26

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

27

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 28, 29

1шт.

28

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

700-424

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1-3/16 fc sl x 27 Or, Includes: Ref. 31, 32

1шт.

31

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

33

221580A1

PLUG,M27 x 2 ORB

Includes Ref. 34

1шт.

This plug replaces a tube that is no longer used. The tube used to tee into the outlet of the PFC pump. The power beyond manifold is supplied internally. 12-4-99 TM @ TSG

1шт.

34

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

36

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Includes: Ref. 37, 38

1шт.

37

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

334216A1

CAP

dust

2шт.

The illustration is misleading. The 334218A1 is smaller than the 334216A1. Billy A. CAM 8/13/01

1шт.

40

334218A1

CAP

dust

2шт.

The illustration is misleading. The 334218A1 is smaller than the 334216A1. Billy A. CAM 8/13/01

1шт.

41

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

hydraulic, 3/4 in.

2шт.

42

347756A1

QUICK MALE COUPLING,ISO 6.3, 1/4" x 9/16" - 18, Fem SAE ORB

hydraulic, 1/4 in.

2шт.
