Запчасти Case IH MX180 (8-002) - HYDRAULIC SYSTEM, OIL COOLER (08) - HYDRAULICS

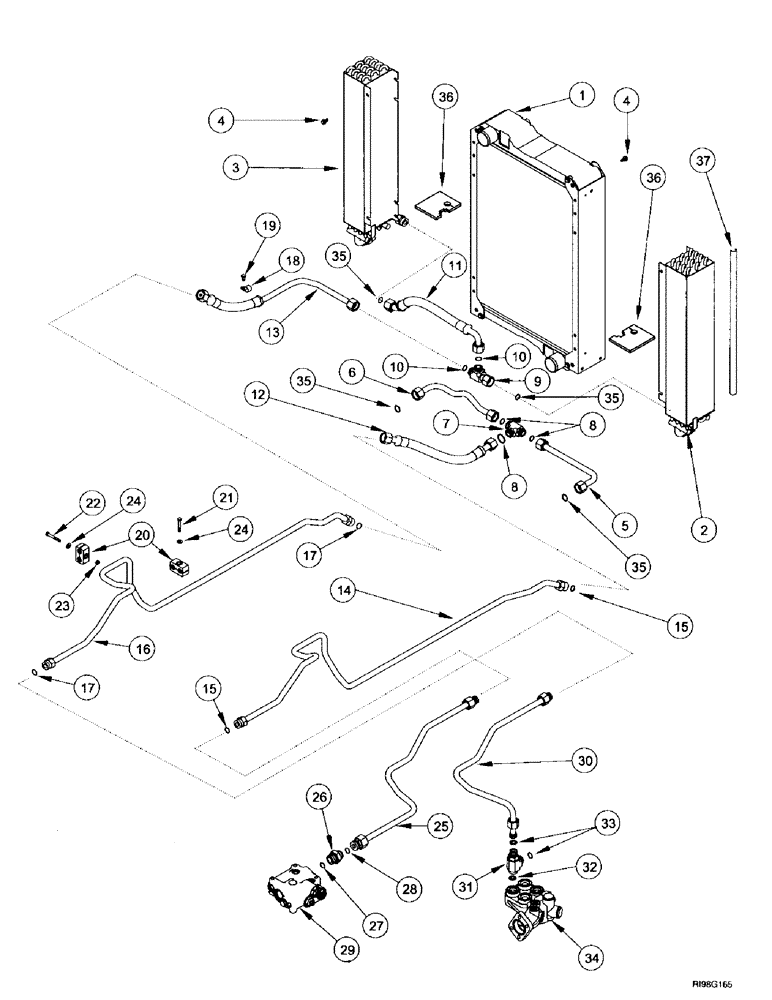

Схема запчастей Case IH MX180 - (8-002) - HYDRAULIC SYSTEM, OIL COOLER (08) - HYDRAULICS
21
18
33
35
8
12
32
2
5
4
17
34
19
3
1
35
28
36
17
11
14
9
29
7
8
27
20
25
22
15
15
10
16
10
37
35
35
30
31
23
6
13
24
24
4
36
26

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

RADIATOR, see Figure 2-002

1шт.

2

248874A3

COOLER ASSY.

right-hand

1шт.

3

248873A3

COOLER ASSY.

left-hand

1шт.

4

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

5

300904A2

TUBE,0.75" OD, 282, 90 mm Length

TUBE, right-hand

1шт.

6

300903A2

TUBE

TUBE, left-hand

1шт.

7

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

1-3/16 fc sl, Includes: Ref. 8

1шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

9

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

1-3/16 fc sl x 1-3/16 sw, Includes: Ref. 10

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

11

313315A2

HOSE,19mm ID x 471.2mm L, SAE 100R1

1шт.

12

301020A2

HOSE,19mm ID x 472.5mm L

supply

1шт.

13

301430A2

HOSE

return

1шт.

14

313358A2

TUBE,0.75" OD, 1679, 225 mm Length

TUBE supply

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

16

313359A2

TUBE,0.75" OD, 1673, 275 mm Length

TUBE return, without front hitch

1шт.

16

359878A1

TUBE

TUBE return, with front hitch

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

18

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

19

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

20

314137A1

COLLAR CLAMP

2шт.

21

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

22

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

25

299165A1

TUBE,0.75" OD, 779, 171 mm Length

supply, M6 x 40; 8.8

1шт.

26

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

ADAPTER, 1-7/16 fc sl x 33 Or, Includes: Ref. 27, 28

1шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

29

REF

INSTRUCTION

VALVE ASSY, priority, see Figures 8-048, 8-052

1шт.

30

300841A1

TUBE

TUBE return

1шт.

31

700-428

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1-3/16 fc sl x 27 Or, Includes: Ref. 32, 33

1шт.

32

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

33

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

34

REF

INSTRUCTION

HEAD, see Figures 8-008, 8-012

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

36

329701A1

OIL SEAL

2шт.

37

328134A1

GUIDE

2шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
