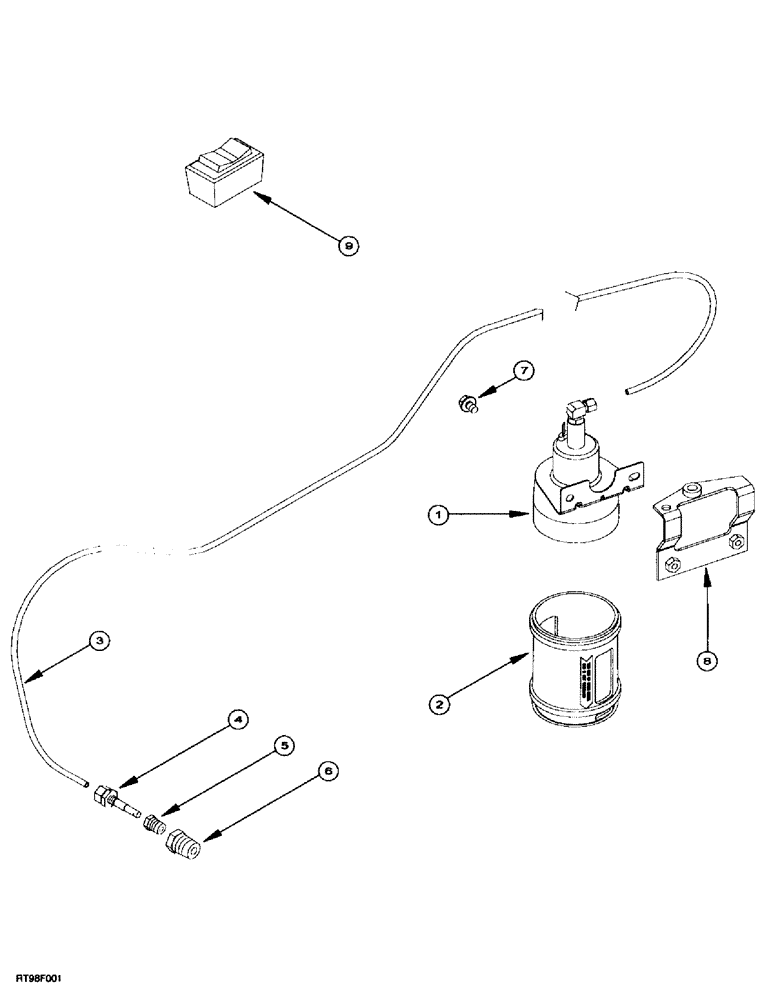

Запчасти Case IH MX180 (2-014) - ETHER START SYSTEM (02) - ENGINE

303535A

KIT

attachment, consists of: Ref. 1 - 9

1шт.

1

185552A2

SOLENOID

ASSY, 12V, Includes: Ref. 2

1шт.

2

190752A1

HOUSING

1шт.

3

A149932

TUBE

2006 mm (79 in.)

1шт.

4

A172900

NOZZLE CAP

MX180, MX200, MX220

1шт.

5

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

MX180, MX200, MX220

1шт.

6

A145069

NOZZLE INJECTION

MX240, MX270

1шт.

7

845-8012

BOLT,Hvy Hex, M8 x 12mm, Cl 8.8

BOLT flange, M8 x 12

2шт.

8

246212A1

SUPPORT

BRACKET

1шт.

9

229364A1

SWITCH

rocker

1шт.

ZAD6

FLUID

ether start, per notes in 3270

1шт.
