Запчасти Case IH MX180 (6-112) - POWER TAKE-OFF ASSEMBLY, INPUT SHAFT (06) - POWER TRAIN

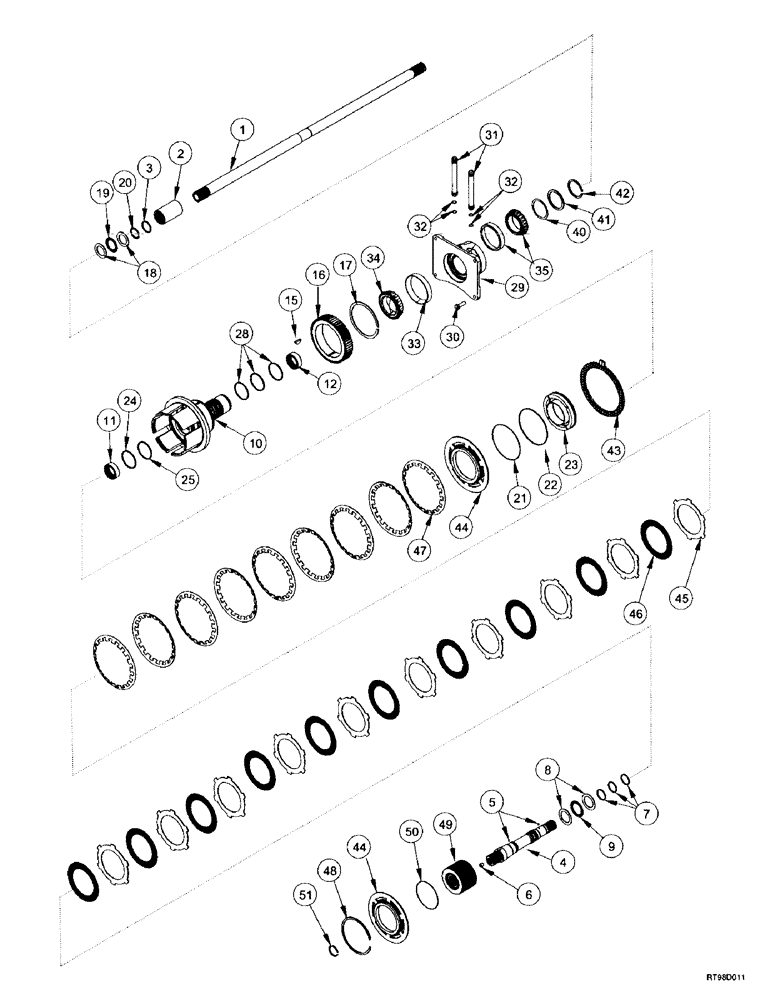

Схема запчастей Case IH MX180 - (6-112) - POWER TAKE-OFF ASSEMBLY, INPUT SHAFT (06) - POWER TRAIN
47
43
10
6
29
21
40
22
32
41
51
46
15
44
35
5
8
19
48
50
2
44
17
45
16
4
18
30
11
32
24
23
42
34
7
28
49
1
33
20
31
12
3
25
9

Артикул

Название

Примечание

Количество

1

198496A1

COUNTERSHAFT

1шт.

2

231241A1

SPLINED COUPLING

1шт.

3

238-6124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

1шт.

4

225800A2

SHAFT

ASSY, Includes: Ref. 5

1шт.

5

38-3605

PIN,3/32" x 5/16", Coiled

2шт.

6

877-31212

SET SCREW,Hex Skt M12 x 12mm, Flat Pt

M12 x 12

1шт.

7

225802A1

SEAL,Locking, 37.57mm ID x 41.57mm OD x 2.87mm Thk

3шт.

8

A54021

WASHER

thrust, 1-3/4 x 2-1/2 x 3/32 in. (44 x 64 x 2 mm)

2шт.

9

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

thrust

1шт.

10

323734A1

CARRIER

ASSY, Includes: Ref. 11, 12

1шт.

11

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

needle 1-3/4 ID

1шт.

12

38834

ROLLER BEARING,Needle, 34.92mm ID x 41.29mm OD x 19.05mm W

needle

1шт.

15

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

16

221203A1

PINION

GEAR, 57T

1шт.

17

101-11475

SNAP RING,#475, 4.495, Ext

retaining

1шт.

18

1327732C1

THRUST WASHER,34.92mm ID x 52.37mm OD x 2.42mm Thk

thrust, 1-13/32 x 2 x 3/32 in.

2шт.

19

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

thrust

1шт.

20

1259828C1

RING

retaining

1шт.

21

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

1шт.

22

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

1шт.

23

230166A1

PISTON

1шт.

24

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

1шт.

25

1286077C1

RING,74.96mm ID x 78mm OD x 2.28mm Thk

1шт.

28

1286026C1

SEALING RING,Locking, 59.41mm ID x 63.41mm OD x 2.87mm Thk

3шт.

29

254105A1

CAGE

1шт.

30

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

31

178999A1

TUBE,13.5 mm OD

2шт.

32

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

4шт.

33

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

1шт.

34

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

1шт.

35

225805A1

BEARING ASSY,60mm ID x 95mm OD x 23mm W

1шт.

253458A1

SHIM KIT

consists of: Ref. 40

1шт.

40

249528A1

SHIM,0.203mm Thk

1шт.

40

199929A1

SHIM,60.5mm ID x 73mm OD x 0.36mm Thk

1шт.

40

199928A1

SHIM,60.5mm ID x 73mm OD x 0.5mm Thk

1шт.

40

199927A1

SHIM,60.5mm ID x 73mm OD x 0.56mm Thk

1шт.

40

222675A1

SHIM,60.5mm ID x 73mm OD x 0.64mm Thk

1шт.

41

199923A1

SPACER,60.12mm ID x 73mm OD x 3.12mm L

1шт.

42

357194R1

RING

1шт.

43

325666A1

BRAKE DISC

PLATE

1шт.

44

239718A2

PLATE,106.9mm ID x 202mm OD x 12mm Thk

backing

2шт.

45

128114A1

DISC

PLATE separator

10шт.

46

1997907C1

PLATE

friction

10шт.

47

225801A1

BELLEVILLE WASHER,197mm ID x 161mm OD x 9.3mm Thk

Belleville

9шт.

48

1285996C1

SNAP RING,151mm OD, Internal

retaining

1шт.

49

221209A1

CLUTCH HOUSING

HUB

1шт.

50

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

1шт.

51

555570R1

SNAP RING

1шт.

Выбрано товаров: 48
