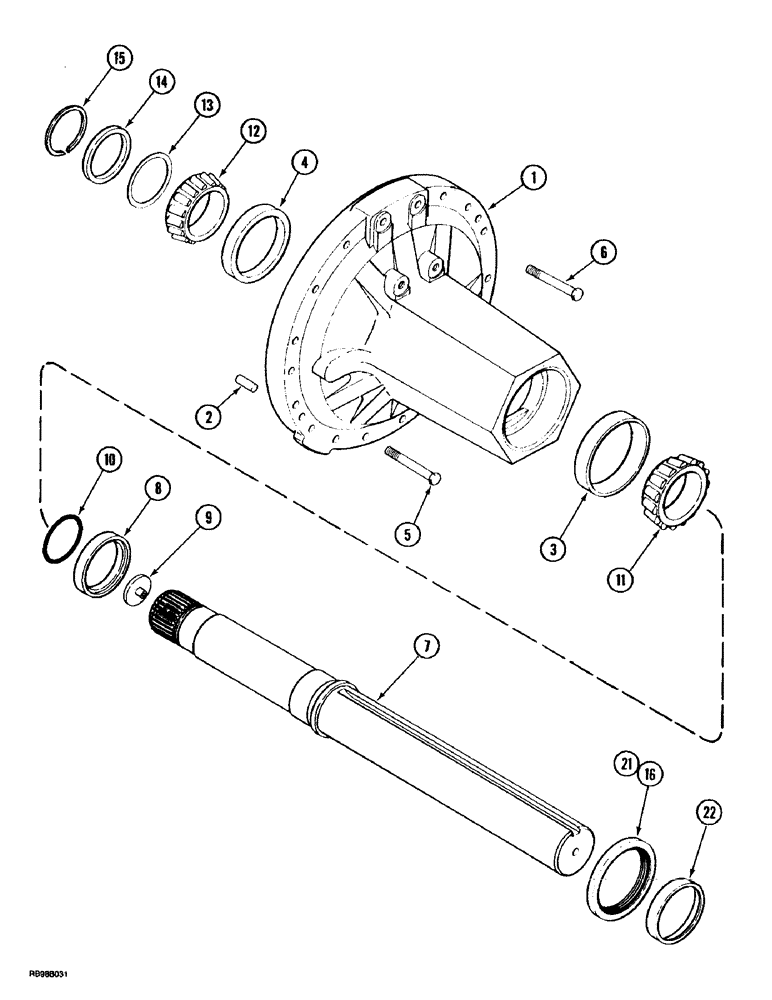

Запчасти Case IH MX180 (6-094) - REAR AXLE, AXLE : 4 X 96 IN., MX180, N.A. AND EUROPE, AXLE : 4 X 98 IN., MX200, MX220, EUROPE ONLY (06) - POWER TRAIN

1

1968489C1

CARRIER

ASSY, Includes: Ref. 2 - 4

2шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

630899C1

BEARING CUP

1шт.

4

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

1шт.

5

813-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

BOLT, M16 x 120, MX180

32шт.

5

813-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

BOLT, M16 x 140, MX200, MX220

32шт.

6

813-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

BOLT, M16 x 140, MX180

4шт.

6

813-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 8.8

BOLT, M16 x 160, MX200, MX220

4шт.

7

1968339C3

SHAFT ASSY.

AXLE, 4 x 96/98, Includes: Ref. 8, 9

2шт.

8

1968334C1

BUSHING,100.41mm ID x 119.85mm OD x 19.5mm L

1шт.

9

1981270C1

INSERT

1шт.

10

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

2шт.

11

630874C1

ROLLER BEARING,99.99mm ID x 41mm W

2шт.

12

123869R1

ROLLER BEARING,95.263 mm ID x 36.535 mm

2шт.

13

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

1шт.

13

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

1шт.

13

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

1шт.

13

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

1шт.

13

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

1шт.

14

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

2шт.

15

1277020C2

RING

retaining

2шт.

16

84842C1

OIL SEAL,120mm ID x 160.23mm OD x 12mm Thk

2шт.

94547C1

SEAL KIT

consists of: Ref. 21, 22

2шт.

21

92689C1

SEAL

oversize

1шт.

22

92687C1

SLEEVE

1шт.
