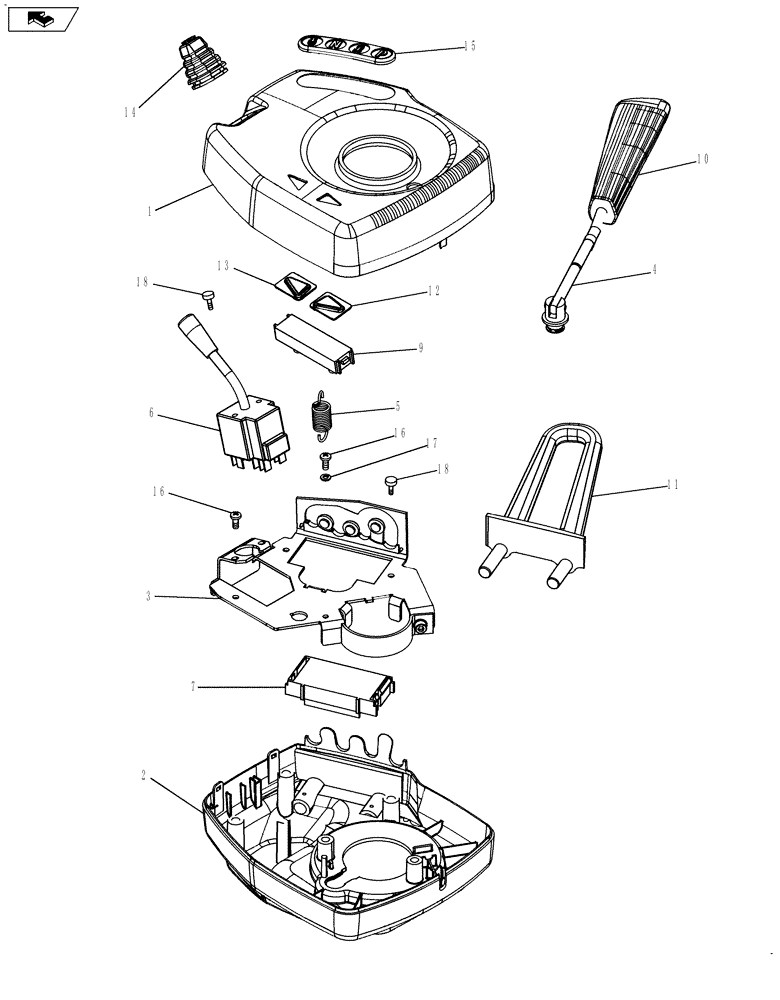

Запчасти Case IH MX180 (6-084) - LEVER ASSEMBLY, TRANSMISSION CONTROL (06) - POWER TRAIN

319464A2

CASE ASSY.

CONTROL, consists of: Ref. 1 -18

1шт.

1

325064A1

HOUSING

upper

1шт.

2

325065A1

HOUSING

lower

1шт.

3

325362A1

CHASSIS

1шт.

4

325363A1

LEVER

transmission control

1шт.

This part has a retaining ring on it. Per print, it is P/N 800-438, which is 8 mm. 5/2/00 ms

1шт.

5

250939A1

SPRING

1шт.

6

284776A1

SWITCH

turn signal, horn, high beam

1шт.

7

86991897

SWITCH

transmission control

1шт.

8

303463A1

HARNESS

1шт.

9

303465A2

LAMP,12V, 2W

flasher

1шт.

10

325533A1

HANDLE

KNOB

1шт.

11

325066A1

GUARD

PROTECTOR

1шт.

12

303466A1

SYMBOLS

SYMBOL LENS, RH

1шт.

13

303467A1

SYMBOLS

SYMBOL LENS, LH

1шт.

14

325068A1

BELLOWS

BOOT

1шт.

15

341333A1

SYMBOLS

SYMBOL PLATE

1шт.

16

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

7шт.

17

892-11004

LOCK WASHER,M4

7шт.

18

905974R1

SELF-TAP SCREW,Pan Hd, M2.9 x 13

2шт.
