Запчасти Case IH MX180 (6-062) - VALVE ASSEMBLY, TRANSMISSION CONTROL, N.A. ONLY (06) - POWER TRAIN

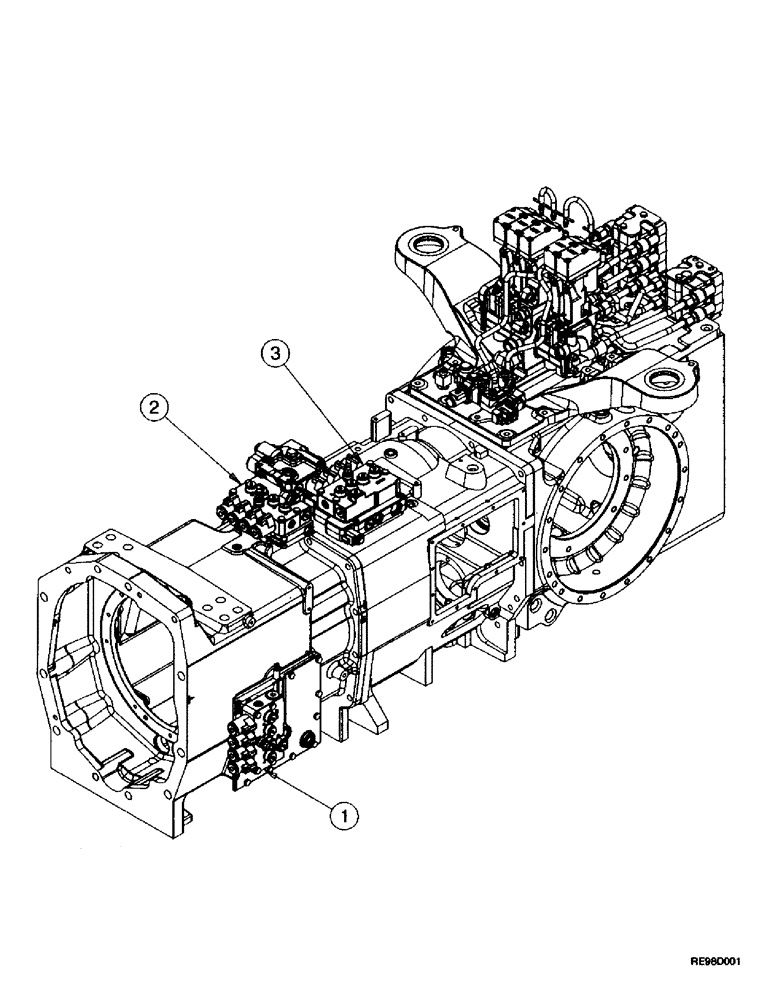

Схема запчастей Case IH MX180 - (6-062) - VALVE ASSEMBLY, TRANSMISSION CONTROL, N.A. ONLY (06) - POWER TRAIN
1
3
2

Артикул

Название

Примечание

Количество

1

177075A7

VALVE

ASSY, control, see Figure 6-064

1шт.

2

234497A3

VALVE

ASSY, control, without creep speed, see Figure 6-066

1шт.

2

177075A7

VALVE

ASSY, control, with creep speed, see Figure 6-064

1шт.

3

234496A3

VALVE

ASSY, control, without mechanical front drive, see Figure 6-070

1шт.

3

177075A7

VALVE

ASSY, control, with mechanical front drive, see Figure 6-064

1шт.

1

177075A7

VALVE

ASSY, control, see Figure 6-064, Europe only

1шт.

2

234498A3

VALVE

ASSY, control, without creep speed, see Figure 6-074, Europe only

1шт.

2

181434A7

VALVE

ASSY, control, with creep speed, see Figure 6-078, Europe only

1шт.

3

177075A7

VALVE

ASSY, control, see Figure 6-064, Europe only

1шт.

Выбрано товаров: 9
