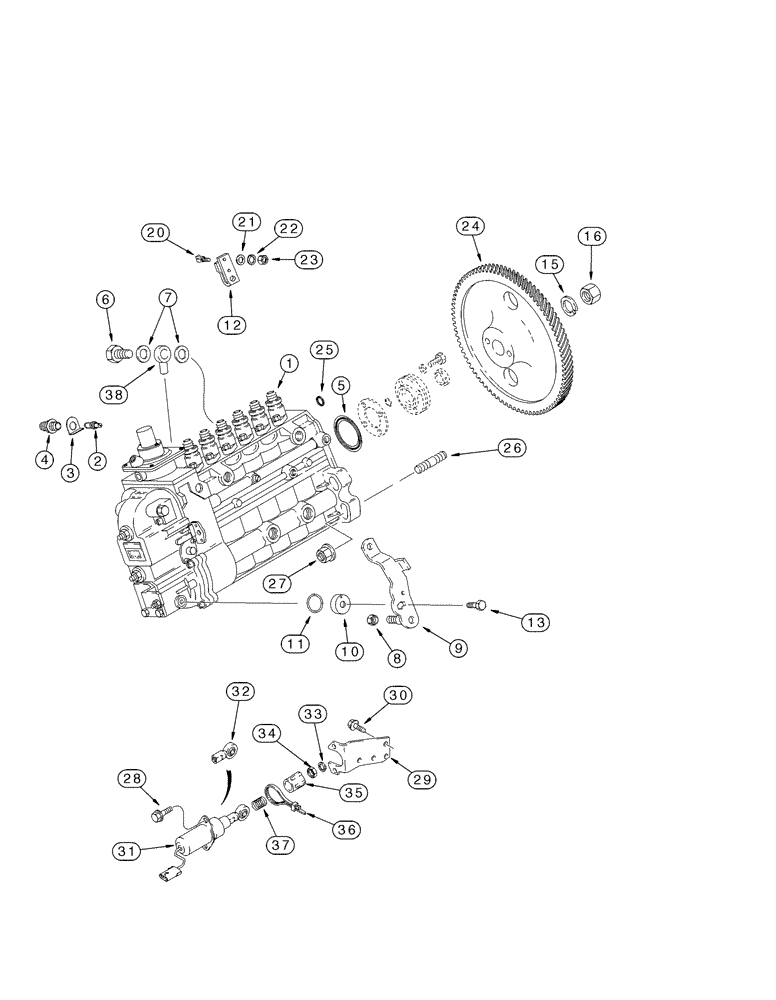

Запчасти Case IH MX180 (03-09) - FUEL INJECTION PUMP AND DRIVE, MX180, 6T-830 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J930526

PUMP, FUEL INJECTION

PUMP, INJECTION New, Consists Of 2 - 23

1шт.

1

JR930526

REMAN-INJECTION PUMP

Remanufactured

1шт.

1

JC923235

CORE-INJECTION PUMP

Return Part Number

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

5

J935032

SEAL

80 mm ID, Replaces J930993

1шт.

6

J932096

VALVE

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

2шт.

8

J930683

LOCK NUT

5 mm - 0.8

1шт.

9

J929322

LEVER

1шт.

10

691292C1

RETAINER

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

12

1808728C1

LEVER

1шт.

13

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

15

J912897

LOCK WASHER

1шт.

16

J912896

LOCK NUT

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

892-11006

LOCK WASHER,M6

1шт.

23

829-1306

NUT,M6, Cl 10

1шт.

24

J931379

GEAR

1шт.

25

J916284

O-RING

1шт.

26

J915036

STUD

55 mm (2-5/32 in)

4шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

28

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

29

J923255

SUPPORT

1шт.

30

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

31

J930233

SOLENOID

Includes 32 - 37

1шт.

32

L53928

BALL JOINT

1шт.

33

492-11025

LOCK WASHER,1/4"

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

J925171

BOOT

1шт.

36

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

37

J923887

SPRING

1шт.

38

J935740

BANJO BOLT

1шт.
